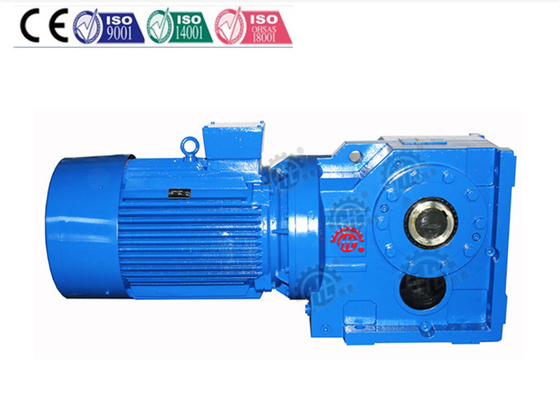

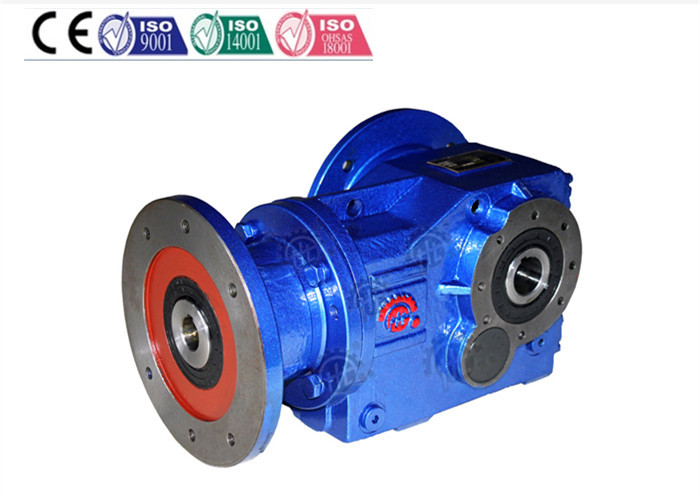

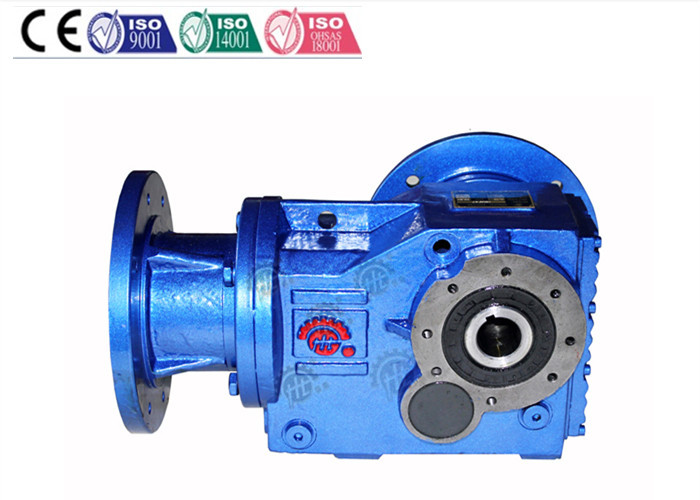

Shaft Mounted Bevel Gear Reducer

  • Shaft Mounted Bevel Gear Reducer
  • Shaft Mounted Bevel Gear Reducer
  • Shaft Mounted Bevel Gear Reducer
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity FIVE PIECES
Price USD300-USD8000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 25kw Model Sew K 187
Mounting Electric Motor Mounted
Highlight

motor speed reducer

,

shaft mounted gear reducer
Leave a Message
Product Description

Electric Motor 25Kw Conneted Bevel Gear Reducer K187 For Waste Plastic Shredder



Quick Details





Material for box: Cast Iron



Gearing Arrangement: bevel gear



Model Number: HK series



Ratio: 4.09~ 195.2



Output Torque: 170~ 42500N.m



Rated Power: 0.12~ 200KW







Descriptions:



Output Configuration
Foot or on the shaft mount.
Two female axis by size.
Female axis with cobbler.
Single or double axis.

Input Configuration
IEC-Electromotors
Axis

Types of engines that can be applied
IEC-engines with or without brake
one or two speed

Brake technical properties
Three phase brakes and DC brakes with lifters

Extra Motor Equipment
Thermostates, Thermistores
Autonomous feed Ventilators
Encoders



Specification:



           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output





Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter press
