Solid Liquid Separation Equipment

Quick Detail:

Other name:

CHC series settling tank

CHC series points settling tank which are widely used in alumina industry

CHC series points settling tank which are widely used in alumina industry for red mud settlement

Description:

Solid-Liquid Separation is a major unit operation that exists in almost every flow scheme related to the

chemical process industries, ore beneficiation, pharmaceutics, food or water and waste treatment.

Have been researching for almost 23 years, it is obviously that me made a great progress in these are

a. Points settlement tank is just the latest product which is pioneer in domestic.

Points settlement tank, compared with ordinary settlement tank, has a simple process, flow of soil layers

high at the end, scarring less and fluid containing high in the bottom, overflow plankton less, high

productivity per unit area, covers less area and hydrolytic loss low etc.

Applications:

Thickeners are used for dewatering slurries of either tailings or product. A thickener is a large circular tank

that is used to settle out the solid material from the water in the feed slurry. It is widely used for dealing

with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials,

environmental protection department etc.

Specifications:

Lets us pick a topic, red mud settlement of alumina industry, as an example.

Performance Feature:

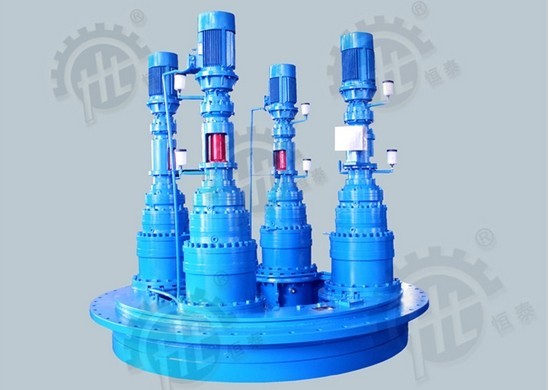

1. CHC series have multiple drive unit, CHC type Drive through the base plate installed on the central pillar

head, driving mechanism include driving mechanism gearbox, made of multi gear drive, the rotation parts of

the bearing ring bolted flange connection, by output flange, can match cage shaft.

2. Every gear drive unit include a motor and planetary gear reducer, and can install torque overload

detector before the planetary gear reducer, and realize real torque test, PLC module can realize multiple

automatic control mode.

3. 1-4 drive unit can be configured as required, 2 series 8 kinds of models, realize 159 KN.m to 1780KN.m

all standing, suitable for use in the center column installation of large diameter high thickener tank

4. The data of driving mechanism are below:

    Continuous rated torque 100 % (KN.m):159-1780

    Output speed (RPM):0.1-0.04

    Output power (KW):3-15KW

Competitive Advantage:

1. The tank is high-efficiency and has been identified by NSTC.

2. Compared with the common one, there are the advantages as following:

    Scarring less

    Simple process

    Overflow plankton less,

    Flow of soil layers high at the end

    Fluid containing high in the bottom, etc.

We have the most advanced equipment:
