HXG Model Shaft Mounted Speed Reducer &Parallel Shaft Helical Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 50 pcs |
| Price | Usd 200-5000 |
| Packaging Details | 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container. |
| Delivery Time | 20 days |
| Payment Terms | T/T or LC, Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Materia, | Grey Iron | Input Speed | 1400rpm |
|---|---|---|---|
| Ratio | 25:1 | Input Shaft | 52mm |
| Electric Motor | 19.5kw | Loading | 1700Nm |
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
Product Description
Descriptions:
|
Torque range (n1 = 900 min-1) |
150 Nm … 16.000 Nm |
|
Mechanical rating (n1 = 900 min-1) |
1, 1 kW … 156 kW |
|
Gear ratios |
iN = 5, 0 … 31, 5 |
|
Output shaft |
Keyed hollow shaft Upto three bore options per frame size |
|
Gearcase |
Sturdy cast housing suitable for outdoor installation |
|
Backstop |
Available on all frame sizes – externally accessible |
Specifications:
|
Type |
Torque NM |
|
TA 30 |
150 |
|
TA 35 |
400 |
|
TA 40 |
900 |
|
TA 45 |
1.35 |
|
TA 50 |
2.1 |
|
TA 60 |
3.5 |
|
TA 70 |
4.9 |
|
TA 80 |
6.6 |
|
TA 100 |
10.5 |
|
TA 125 |
16 |
|
Model Number |
Input shaft Diameter |
Output shaft hollow bore diameters: |
Output torque |
Torque arm length |
Input Speed |
Reduction Ratio: |
|
Ta35-35D |
19mm |
30mm |
1000Nm |
220mm |
|
|
|
Ta40-40D |
24mm |
40mm |
1350Nm |
240mm |
||
|
Ta45-45D |
28mm |
45mm |
2050Nm |
260mm |
||
|
Ta50-50D |
42mm |
50mm |
2100Nm |
280mm |
||
|
Ta60-60D |
48mm |
60mm |
3500Nm |
300mm |
||
|
Ta70-70D |
48mm |
70mm |
4900Nm |
320mm |
||
|
Ta80-80D |
55mm |
80mm |
6600Nm |
380mm |
||
|
Ta100-100D |
55mm |
100mm |
10500Nm |
520mm |
||
|
Ta124-125D |
60mm |
125mm |
16000Nm |
560mm |
Your benefits:
1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.
2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.
3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.
4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.
5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.
Applications:
Grinding Plant
Ultra Fine Vertical Grinding Mill
Mobile Jaw Crusher
VM – Vertical Grinding Mill
European Type Grinding Mill
Micro Powder Mill
Trapezium Mill
Raymond Mill
Ball Mill
European Hammer Mill
Washing & Screening Machine
Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine

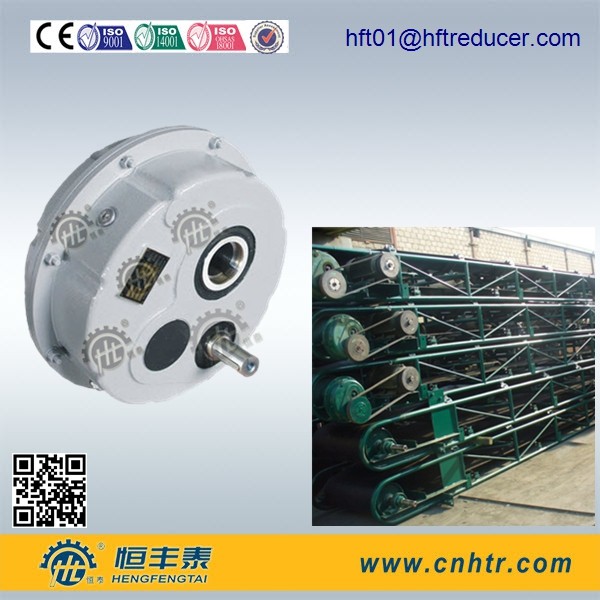

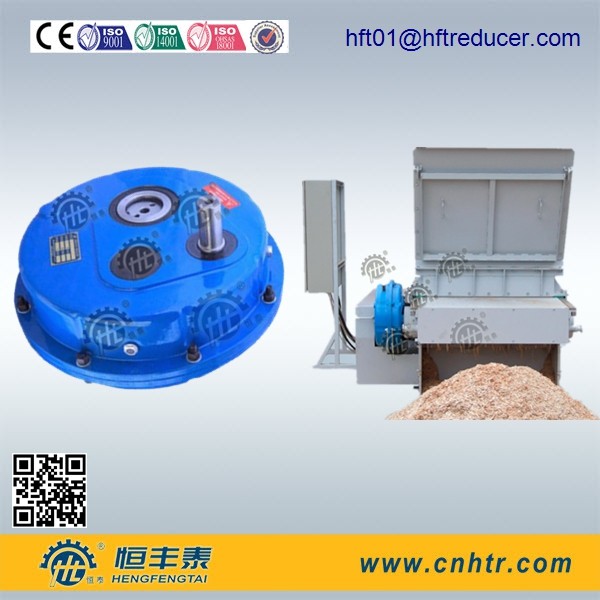

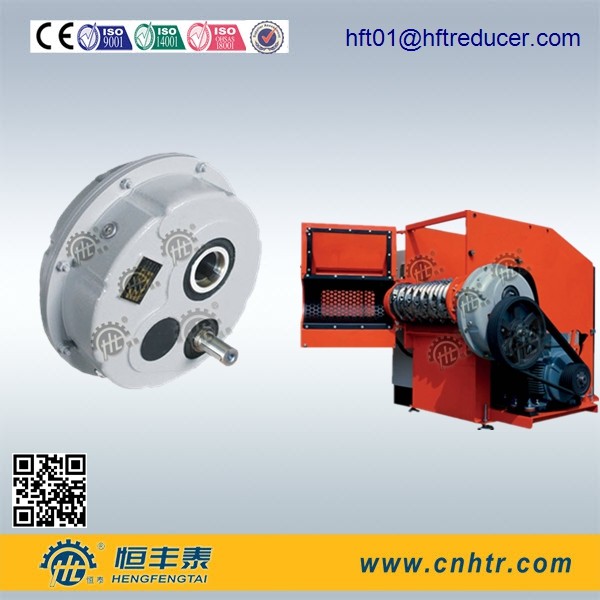

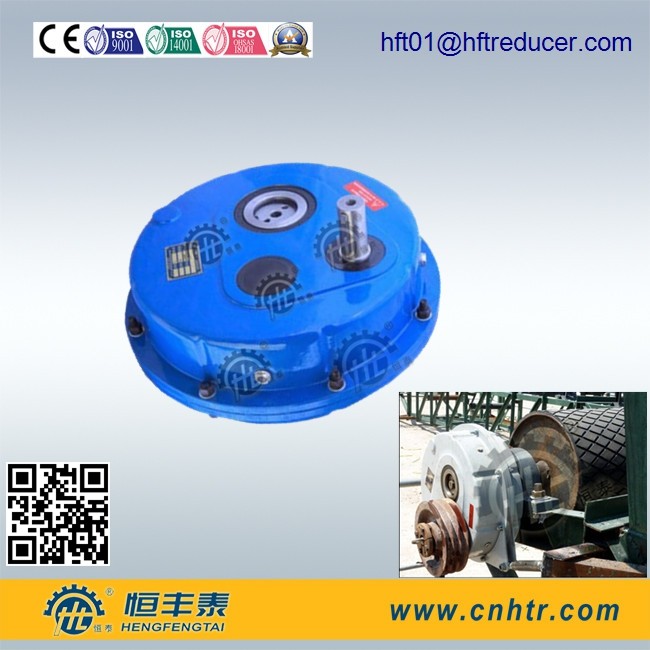

Product images&Catalogue informations:
