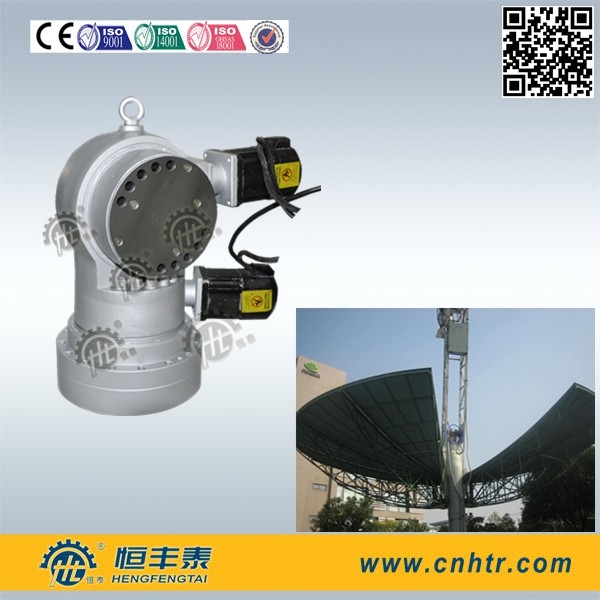

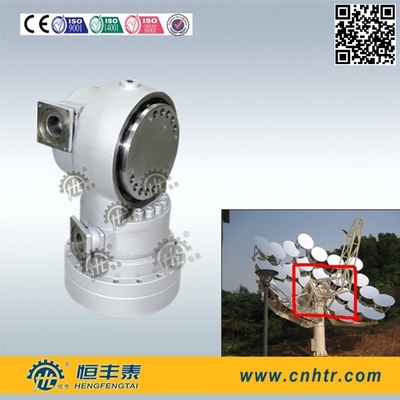

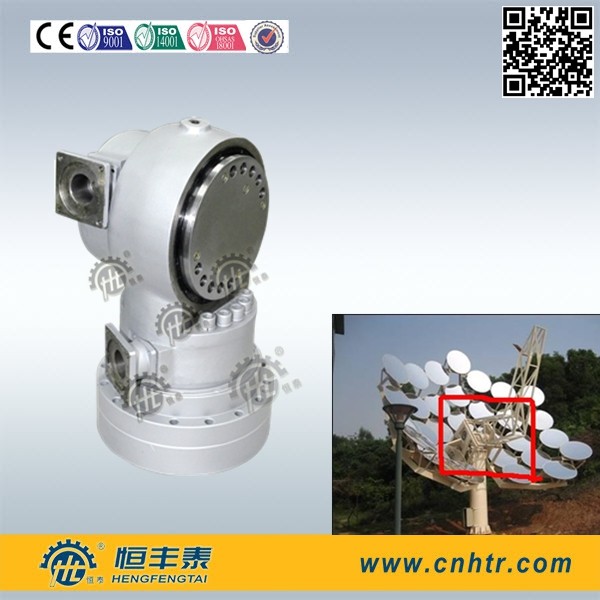

Dual Axis Solar Cyclo Speed Reducer High Torque 1360Nm - 75800Nm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HJR Disc Model | Backlash | 0.01 Degree |
|---|---|---|---|
| Torque | 78500Nm | Mirror Volume | 90 Square Meters |
| Ratio | 42000 | Weight | 220Kg |
| Highlight | cycloidal speed reducer,cyclo gear reducer |
||
Product Description
Dual Axis Solar Cyclo Speed Reducer High Torque 1360Nm - 75800Nm
Features:
Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
Type | Torque Nm | |
Horizontal torque | Elevation torque | |
HJR01 | 1030 | 1360 |
HJR02 | 5590 | 6650 |
HJR03 | 10700 | 13250 |
HJR04 | 21350 | 25500 |
HJR05 | 38950 | 44500 |
HJR06 | 47800 | 55700 |
HJR07 | 59600 | 68500 |
HJR08 | 67600 | 75800 |
Performance | Ratio | Rotate range | Horizontal allowable maximum dynamic torque | Horizontal allowable maximum static torque | Elevation allowable maximum dynamic torque | Elevation allowable maximum static torque | Maximum torsional stiffness | Backlash |
HJR01 | 35000 | 360 | 5578 | 9296 | 5132 | 8553 | 15.7×10e6 | 0.015 |
HJR02 | 35000 | 360 | 5976 | 9960 | 5756 | 9593 | 18.4×10e6 | 0.015 |
HJR03 | 35000 | 360 | 10160 | 16933 | 9865 | 16442 | 36.0×10e6 | 0.015 |
HJR04 | 35000 | 360 | 15216 | 25360 | 14512 | 23587 | 38.0×10e6 | 0.015 |
HJR05 | 35000 | 360 | 27430 | 45717 | 26381 | 43968 | 10.5×10e7 | 0.015 |
HJR06 | 35000 | 360 | 36887 | 61479 | 35785 | 59642 | 14.4×10e7 | 0.015 |
HJR07 | 35000 | 360 | 48285 | 80474 | 47665 | 79442 | 19.0×10e7 | 0.015 |
HJR08 | 35000 | 360 | 62595 | 104325 | 61758 | 102930 | 33.3×10e7 | 0.015 |
Competitive Advantage:
Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.
Technology capacity
- Hengfengtai is certified State High-tech Enterprise,
- Enterprise Technique Center of Zhejiang province,
- Applying ERP information management, CAD, pro/E, UG, CFD etc advanced software are widely used in drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.
- Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.
