Industrial Shaft Mounted Helical Bevel Gearbox , Conveyor Gearbox

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenhou city ,Zhejiang ,China
Brand Name HENGTAI
Certification CE ISO9001:2008 ISO14001:2004
Model Number HR series
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time IT DEPENDS ON YOUR QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

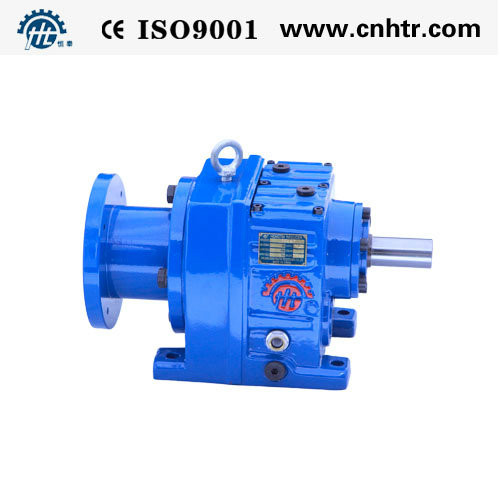

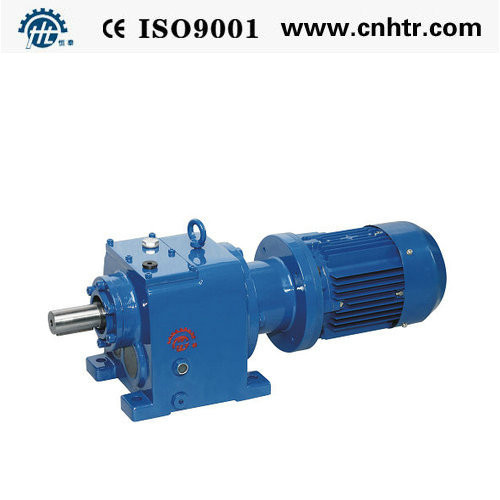

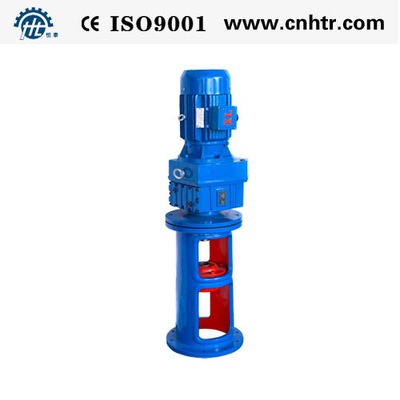

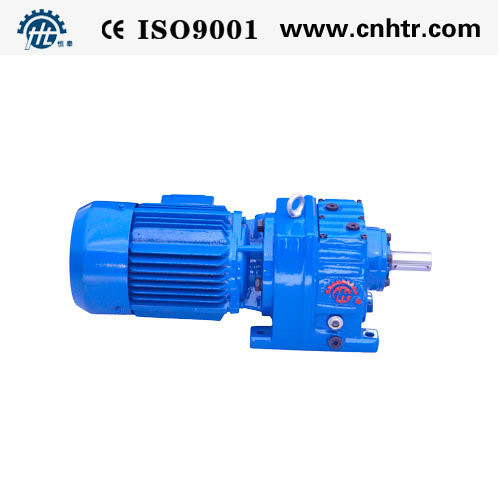

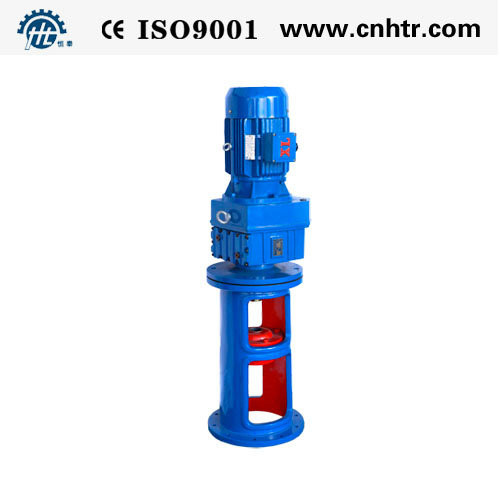

Industrial Shaft Mounted Helical Bevel Gearbox , Conveyor Gearbox



Quick Details

  • Gearing Arrangement: Helical



  • Output Torque: 110Nm-15300 N.m



  • Rated Power: 0.12-160KW



  • Input Speed:750-1800 rpm



  • Output Speed: 2.67-534RPM



  • Place of Origin: Zhejiang, China (Mainland)



  • Model Number: HR17-HR167



  • Brand Name: HENGTAI



  • Color: According to customer



  • Ratio:3.4-280.6



  • Mounting position: foot or flange mounted



  • Material for box: cast iron



  • Packing: Strong wooden cases for exporting



  • Output shaft: solid shaft



  • Accessories: flange, solid shaft, coupling etc





Description:



SEW HR series shaft mounted gear reducer is based on the unique modulation combination system, so its



convenient for them to fit all types of motors or to connect with other power input. The same type of reducer



can fit motors with different power, so that its possible for different types of machines to combine or



connect.SEW HR series shaft mounted gear reducer are novel transmission device and composed of Y



series motor, helical gear, Gelisen arc cone gear and warm gear. The gears are made of high wear-



resisting alloy materials, specially treated and finely processed.





Models:



HR17/HR27/HR37/HR47/HR57/HR67/HR77



HR87/HR97HR107/HR137/HR147/HR167







Applications:



1. Bagger



2. Enginery for foot industry



3. Washer



4. working machine



5. Cropping & shearing machine



6. woodworking machine



7. Machines for plastic industry





Specifications:



The input powerpermissible torque and weight list of HR reducer



Model

27

37

47

57

67

77

Structure form

HRHR..FHRF

Input power

0.12-3

0.12-3

0.12-5.5

0.12-7.5

0.12-7.5

0.18-11

Ratio

3.37-136

3.4-133.3

3.87-182.6

4.32-183.2

4.32-180.7

5.28-200.9

Permissible torque

110

170

255

380

510

700

weight

6.2

9.4

11

20

28

40

Model

87

97

107

137

147

167

Structure form

HRHR..FHRF

Input power

0.55-22

0.55-37

2.2-55

5.5-75

11-110

11-160

Ratio

5.33-245.7

4.52-280.6

4.98-255.4

5.22-223.2

4.93-162.1

10.43-224.6

Permissible torque

1320

2550

3670

6800

11050

15300

weight

70

112

169

245

440

770





Competitive Advantage:



1. Compact design, small volume, nice appearance and strong capacity of being overloaded.



2. percise division , wide selection range.



3. High efficiency, low energy consumption, excellent function, small vibration, and low noise.



4. All - purpose use, convenient, low cost maintenance.



5. Using new seal device-good protection , stong adaptability, capable of working continually in

   corrosive or damp environment.



6. Hr series gear can match all kinds of motors/mounting position/structure projects.



7. With small volume, helical gear units achieves the output torque range of 69-18000NM, and output

    power as much as 200 KW.

Industrial Shaft Mounted Helical Bevel Gearbox , Conveyor Gearbox 0
