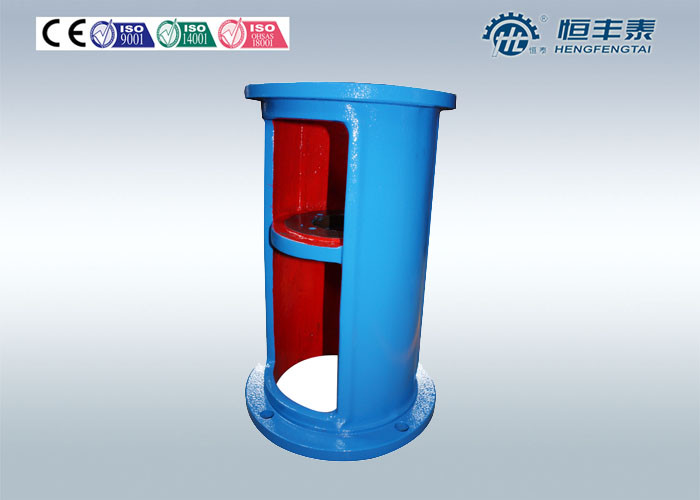

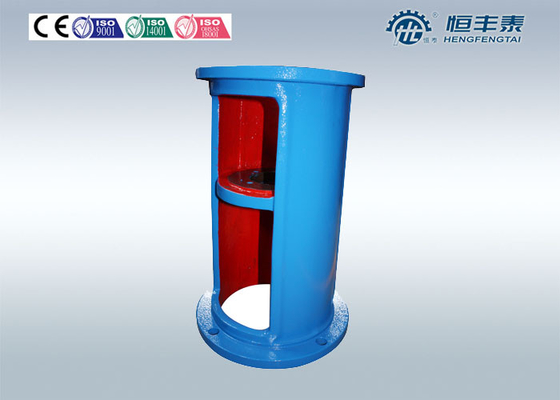

Mixing Gearbox Frame Milled Industrial Mixer Blades Cast Iron



Mixing Gearbox Frame milled mechanical / industrial gearbox case





Quick Detail:





·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: SJ-A



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: vertical flange mounted or tilt mounted



·                                 Material for box: Cast iron



·                                 Packing: Strong exporting wooden case and pallets









Other name:



Mechanical frame rack



SJ-A mechanical gearbox frame



SJ-A mechanical frame rack of gearbox





Descriptions:





This series frame is matched with a variety of vertical cycloid reducer as well as LC-type and DC-type gear



reducer, and various types of shaft coupling is available for connection. SJ-type frame is a double bearing



frame. Accompanied by different types of gusset plate, in definite range, each size frame can be matched





with different types of different diameter.







SJA is shortened on the base of SJ mechanical frame, but the size of bearing point do not change, in order





to avoid reducer shaking, the installing bottom of mechanical D4, D5 and D6 is added. So it is suitable for





the long shaft agitator.













Applications:





This series of mechanical can be matched with all kinds of vertical cycloid reducers and LC, DC gear



reducers, also chose all kinds of shaft coupling types. The series can be divided into WJ(ⅠANDⅡ), DJ



and SJ, and the three kinds of mechanical frames respectively are without bearing, single bearing and



double bearings. Installed different types gusset plate, in definite range, the same mechanical frame can



be matched with reducer of different type(gear and cycloid) and diameter of out view shaft. Size of gusset



plate and shaft coupling is adjusted and provided by our factory.







Specifications:
