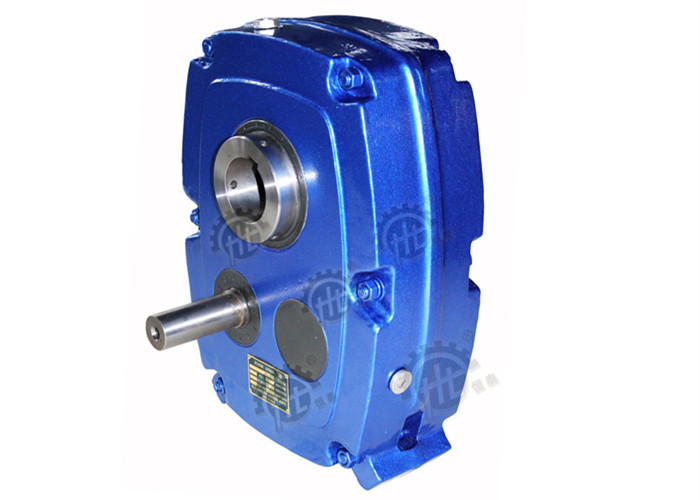

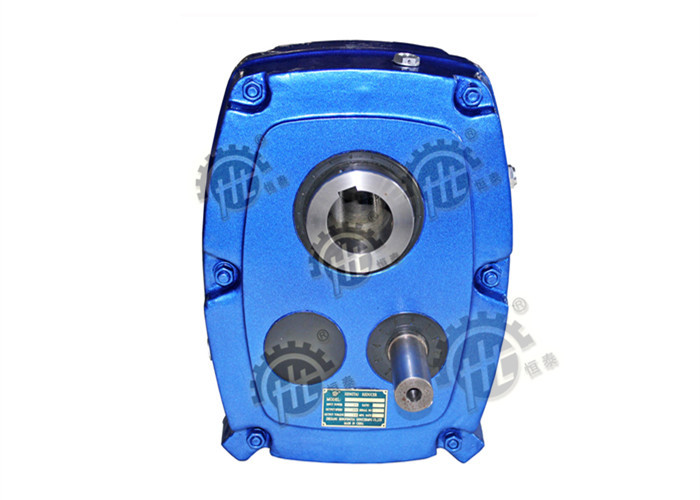

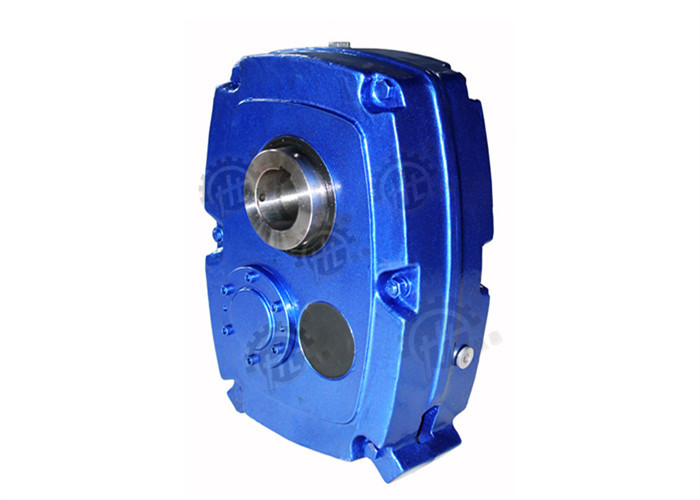

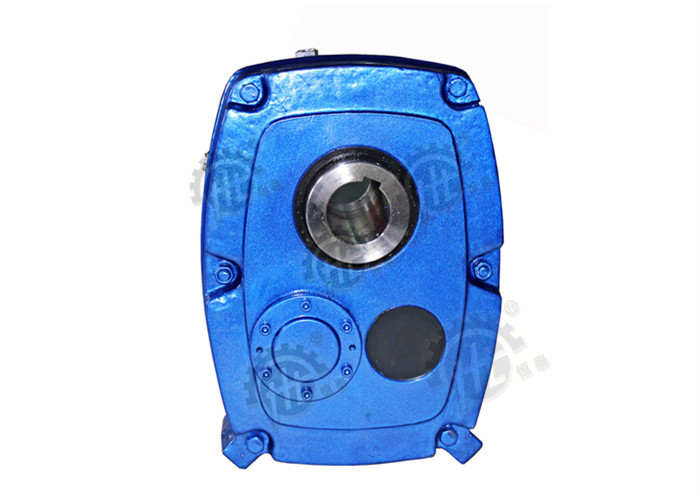

HSMR Series Inline Helical Gear Reducer Ratio Gearbox Transmission
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD120-2300 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20 days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | helical speed reducer,helical bevel gearbox |
||
|---|---|---|---|
Product Description
HSMR Series Inline Helical Gear Reducer Ratio Gearbox Transmission
Quick Details:
· Gearing Arrangement: Helical
· Rated Power: 0.29-134.2kw
· Output Speed:256- 7499 RPM(Na=100rpm )
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: HXGF30-HXG100
· Brand Name: HENGTAI
· Color: According to customer
· Ratio: 5-20
· Mounting position: Shaft mounted
· Material for box: cast iron
· Packing: Strong wooden cases for exporting
. Output shaft: Hollow output shaft
· Accessories: Backstop, Torque arm, etc
· Output shaft diameter: 30-120MM
Descriptions:
HSMR Series HXGF Helical Gear Reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., ltd, was
wildly used in mechanical transmission fields such as agriculture, telecommunications industry, food
industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so
on.
|
SIZES |
A |
B |
C |
D |
E |
F |
Input Shaft Keyway |
H |
J |
K |
P |
T |
U |
V |
W |
X |
Y |
|
|
Hub Dia |
||||||||||||||||||
|
STD |
ALT |
|||||||||||||||||
|
B |
134 |
30 |
40 |
63 |
59 |
80 |
19j6 |
6x3.5x50 |
104 |
131 |
55 |
10 |
186 |
226 |
81 |
75 |
25 |
79 |
|
C |
142 |
40 |
50 |
72 |
65 |
90 |
22j6 |
6x3.5x5.6 |
108 |
156 |
59 |
10 |
218 |
270 |
96 |
90 |
31 |
95 |
|
D |
152 |
50 |
55 |
77 |
68 |
100 |
25j6 |
8x4x63 |
118 |
188 |
76 |
12 |
258 |
328 |
117 |
110 |
37 |
116 |
|
E |
170 |
55 |
65 |
85 |
76 |
115 |
28j6 |
8x4x70 |
130 |
222 |
90 |
12 |
278 |
377 |
129 |
125 |
43 |
133 |
|
F |
189 |
65 |
75 |
90 |
87 |
130 |
32k6 |
10x5x70 |
149 |
242 |
98 |
16 |
317 |
414 |
143 |
141 |
50 |
150 |
|
G |
212 |
75 |
85 |
105 |
110 |
145 |
42k6 |
12x5x90 |
172 |
277 |
110 |
16 |
365 |
468 |
162 |
156 |
56 |
166 |
|
H |
242 |
85 |
100 |
116 |
115 |
170 |
48K6 |
14x5.5x100 |
190 |
330 |
88 |
16 |
434 |
550 |
195 |
189 |
62 |
200 |
Your benefits:
Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque
Heavy duty roller bearings for maximum strength and extended life
Flexible motor mounting capabilities
Backstops with centrifugal lift-off sprags to maximize reliability
Applications:
Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:
Baggage handing
Pulp, paper, and forestry
Aggregate and mining
Mixers and process equipment
Grain and agriculture
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
|
OUTPUT |
B5 |
C5 |
D5 |
E5 |
F5 |
G5 |
H5 |
J5 |
|
50 |
1.35 |
2.50 |
3.85 |
5.55 |
8.30 |
12.10 |
19.30 |
31.50 |
|
100 |
2.69 |
4.60 |
6.30 |
11.20 |
16.50 |
25.20 |
39.00 |
61.00 |
|
150 |
3.60 |
5.70 |
8.90 |
14..00 |
20.00 |
35.00 |
50.40 |
78.00 |
|
200 |
4.30 |
6.70 |
10.50 |
16.60 |
24.00 |
40.00 |
60.00 |
93.00 |
|
250 |
4.60 |
7.70 |
12.00 |
18.00 |
27.50 |
46.00 |
68.00 |
107.0 |
|
OUTPUT |
B13 |
C13 |
D13 |
E13 |
F13 |
G13 |
H13 |
J13 |
|
10 |
0.29 |
0.50 |
0.80 |
1.30 |
1.90 |
3.30 |
4.70 |
7.45 |
|
20 |
0.60 |
1.10 |
1.70 |
2.50 |
4.10 |
7.00 |
10.00 |
15.80 |
|
30 |
0.80 |
1.70 |
2.60 |
4.20 |
6.20 |
10.50 |
15.00 |
24.00 |
|
40 |
1.15 |
2.20 |
3.50 |
5.50 |
8.10 |
14.00 |
20.00 |
31.00 |
|
50 |
1.40 |
2.50 |
4.00 |
6.30 |
9.40 |
16.00 |
23.00 |
36.00 |
|
60 |
1.70 |
3.00 |
4.70 |
7.40 |
11.10 |
19.00 |
27.00 |
42.5 |
|
70 |
1.90 |
3.30 |
5.20 |
8.25 |
12.10 |
21.00 |
30.00 |
46.00 |
|
80 |
2.20 |
3.90 |
6.15 |
9.65 |
14.20 |
24.50 |
35.00 |
54.00 |
|
90 |
2.40 |
4.40 |
6.80 |
10.70 |
15.70 |
27.00 |
39.00 |
60.00 |
|
100 |
2.70 |
4.60 |
7.20 |
11.30 |
16.60 |
28.50 |
41.00 |
63.50 |
|
TORQUE |
275 |
510 |
810 |
1270 |
1865 |
3230 |
4650 |
7100 |
|
TORQUE |
260 |
420 |
740 |
1120 |
1790 |
2950 |
4550 |
6600 |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
