inline Helical Gear Reducer Flange Mounting For Mining Conveyor
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD200-2500 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | helical speed reducer,inline helical gearbox |
||
|---|---|---|---|
Product Description
inline Helical Gear Reducer Flange Mounting For Mining Conveyor
Quick Details:
|
Model Number
|
HXG30-HXG125 |
|
Output shaft diameter
|
35-135MM |
|
Ratio
|
5-31 |
|
Input Speed
|
500-1400 RPM |
|
Output Speed
|
15.1-280RPM |
|
Rated Power
|
0.92-226 KW |
|
Output Torque
|
180Nm-17000 N.m |
|
|
|
|
Gear frame size |
Output shaft bore |
reductions |
Gear ratio |
Input shaft configuration |
Mounting position |
|
TA 35 |
35 |
D |
15 |
HS |
A |
|
TA 45 |
45 |
D |
15 |
HS |
A |
|
TA 45 |
55 |
D |
15 |
HS |
A |
|
TA 50 |
50 |
D |
15 |
HS |
A |
|
TA 50 |
55 |
D |
15 |
HS |
A |
|
TA 60 |
70 |
D |
15 |
HS |
A |
|
TA 70 |
85 |
D |
15 |
HS |
A |
Products benefits:
1. High efficiency
2. Small volume
3. strong capacity of being overloaded
4. Long service life
5. Anti-leaking oil
6. simple structure and convenient to be installed and maintained
widely application
Applications:
Mechanical transmission fields
HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher
Specifications:
|
Model |
HXG30 |
HXG35 |
HXG40 |
HXG45 |
HXG50 |
HXG60 |
HXG70 |
HXG80 |
HXG100 |
HXG125 |
|
Permitted torque |
180Nm |
420Nm |
950Nm |
1400Nm |
2300Nm |
3600Nm |
5100Nm |
7000Nm |
11000Nm |
17000Nm |
|
TA Helical parallel shaft mounted gear motor Spare Parts List
|
||||
|
1.Casing
|
11.Bearing
|
21.Hex.head screw
|
31.Spacer ring
|
41.Pin for bracket
|
|
2.Cover
|
12.Bearing
|
22.Spring washer
|
32.Spacer ring
|
42.Pin for support
|
|
3.Rubber cap
|
13.Bearing
|
23.Hexagonal nut
|
33.Support
|
43.Cotter pin
|
|
4.Output shaft
|
14.Oilseal
|
24.Hexagonal head screw
|
34.Key
|
|
|
5.Gearwheel
|
15.Oilseal
|
25.Breather plug
|
35.Support
|
|
|
6.Input shaft
|
16.Rubber cap
|
26.Level plug
|
36.Bracket
|
|
|
7.Spacer ring
|
17.Circlip
|
27.Drain plug
|
37.Torque arm
|
|
|
8.Spring washer
|
18.Key
|
28.Rubber Cap
|
38.Right tie-rod
|
|
|
9.Gasket
|
19.Key
|
29.Spacer ring
|
39.Left tie-rod
|
|
|
10.Gasket
|
20.Dowel Pin
|
30.Clutch element
|
40.Hexagonal nut
|
|
Features:
1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.
2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.
3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.
4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.
5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.

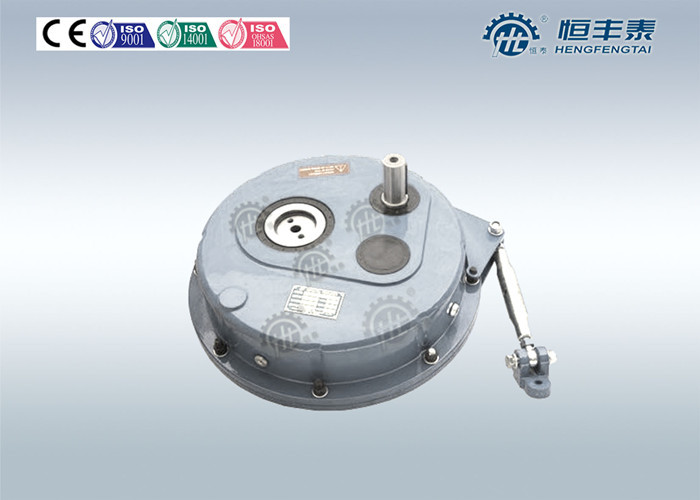

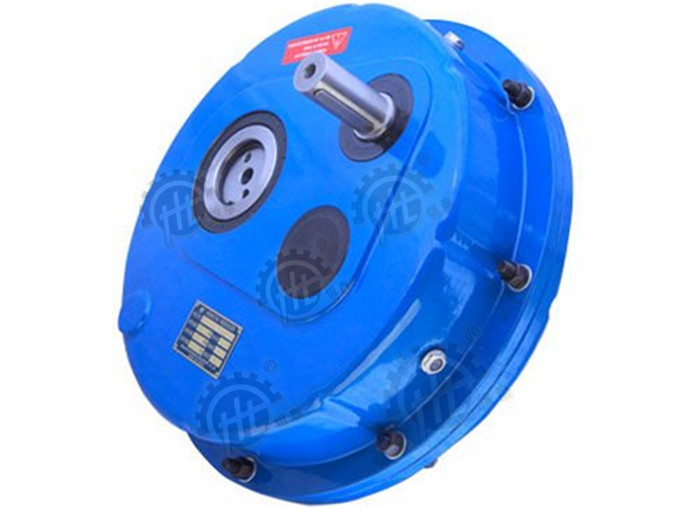

Product images:
