Small Worm Helical Gear Reducer , Industrial Reduction Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HJW series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | helical speed reducer,helical bevel gearbox |
||
|---|---|---|---|
Product Description

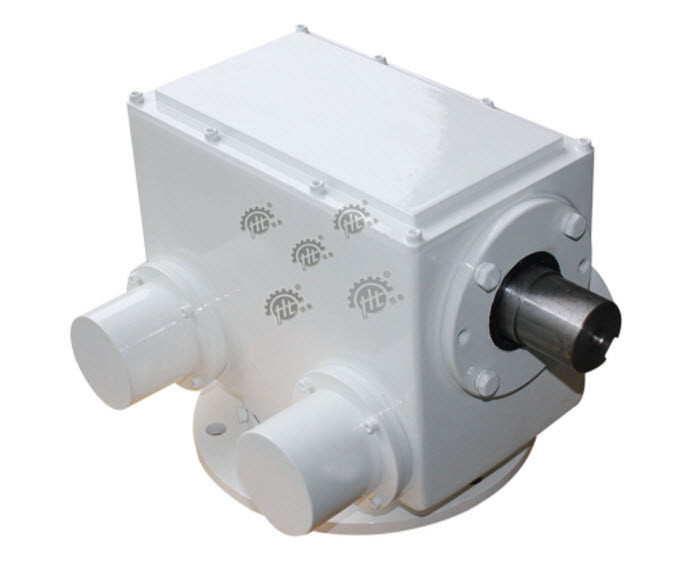

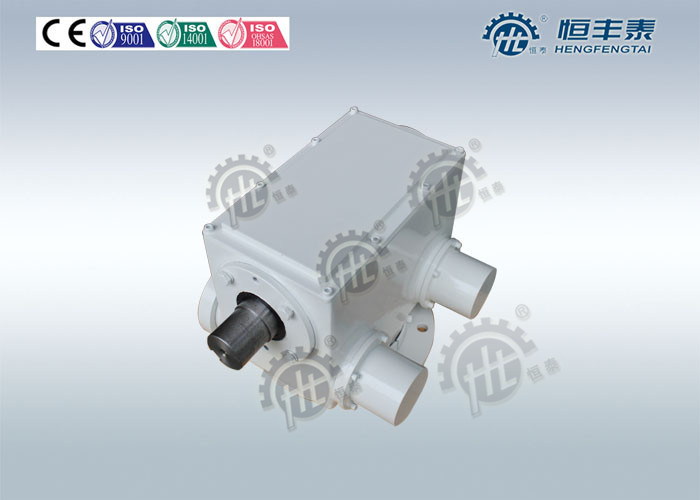

Small Worm Helical Gear Reducer , Industrial Reduction Gearbox
Quick Details
Gearing Arrangement: Dual drive transmission device
Ratio: up to 49295
Nominal output torque up to 40000Nm
Max output torque up to 100000Nm
Static load 120 KN
Dynamic Load 75KN
Place of Origin: Zhejiang, China (Mainland)
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
Description:
HJW series Helical Gear Reducer of heat power precision transmission system has their own proprietary intellectual property rights is derived by high
precision worm gear and worm. HJW series Helical Gear Reducer of heat power precision transmission system combined horizontal transmission and
pitching transmission in a gearbox, which adopts the drive principle of a high-precision gears and precision
rolling gears, to accomplish full 360 tracking and accurate location.
Your benefits:
1. Vertical and elevation transmission in the same housing with compact structure lead to high anti-
overturning moment, with self-locking capacity.
2. Special backlash adjust design no need disassemble main components but with simple wrench and
screw driver to adjust is OK.
3. Use high capacity lubricate no leakage.
Specification:
Ratio: up to 49295
Nominal output torque up to 40000Nm
Max output torque up to 100000Nm
Static load 120 KN
Dynamic Load 75KN
Applications:
Widely applied for energy, military industry, aerospace, industrial automation and other transmission
equipment industries, especially for solar thermal power generation and tracking system of heliostat, the
sun tracking system of photovoltaic panels, radar tracking system etc.
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
The cause for breakdown and settlement of reducer:
Breakdown | Possible cause | The way of settlement |
The motor does not run in case of loading | Voltage is too low | Check to see if the wire is too long or too thin |
Gear is damaged | Repair it in special factory | |
Work with overload | Discharge load | |
Very hot | Work with overload | Discharge load |
Start and stop too many | Discharge load | |
Bearing is damaged | Reduce using frequency | |
Voltage is too high or too low | Repair or replace | |
Loud noise | If the noise is loud and continuous, the bearing is damaged or the gear damaged | Repair it in special factory |
If the noise is loud occasionally, the gear must be damaged or something else block | Contact with the service institution |
Storage:
1:Pls do not store in outdoor.
2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or
replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.
The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or
indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are
more than 40 professional technical engineers. We had 49 items patents including 7 items of
invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international
invention patent and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-
process selling network. Relying on high quality products and perfect service, our products have
been successfully applied by more than 5000 customers.
