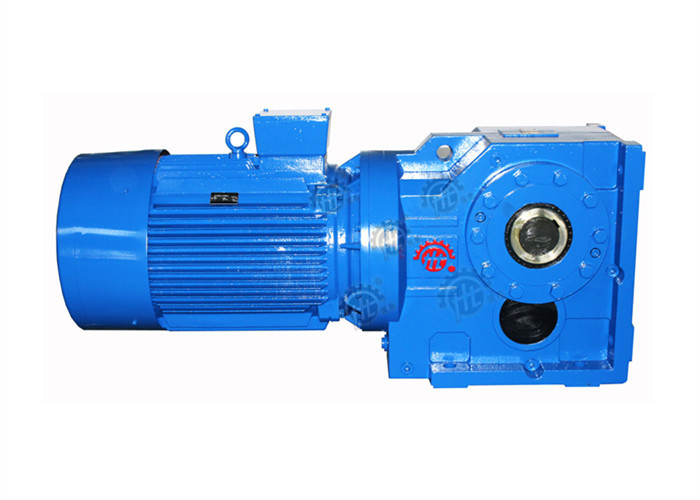

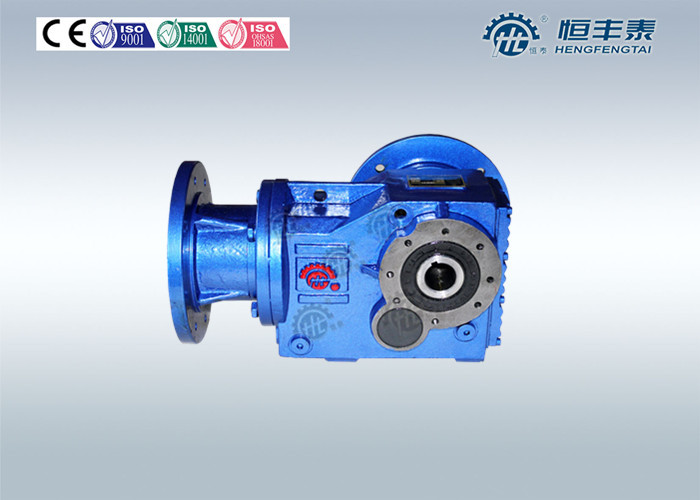

Helical Bevel Shaft Mounted Speed Reducer Power Transmission Gearbox

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 5 pcs
Price DEPENDS ON REQUIREMENTS
Packaging Details 1pcs packed in one wooden crate
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability DEPENDS ON THE SPECIFIC MODEL
Product Details
High Light

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

Helical Bevel Shaft Mounted Speed Reducer Power Transmission Gearbox



Quick Details:



·                                 Gearing Arrangement: bevel



·                                 Output Torque:170~42500N.m



·                                 Rated Power:0.12~200KW



·                                 Input Speed: Accordingly



·                                 Output Speed: 12.5~350RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number:HK series



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 4.09~195.2



·                                 Mounting position: flange mounted



·                                 Material for box: Cast Iron



.                                 Packing: Standard Fumigation Wooden





Other name:





SEW K series agitator reducer

Helical bevel shaft mounted reducer agitator

Reducers applied for Agitator industries







Descriptions:





HK series Industrial Mixer Blender from HFT is provide a high degree of efficiency of over 95% and at all



input speeds.With performance designed to last-high-endurance gearing enables high-torque,wear-free



operation.With our remarkbly efficient helical-bevel gearmotor,you have energy-efficient angular gear



drives at your fingertips.







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER

Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous,the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally,the gear must be damaged or something else block

Contact with the service institution







Your benefits:



1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



        Same reducer as SEW K series






Specification:





           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870





Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output







Warranty:



HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:



Widely applied for the agitator industries,such as Building machinery-Concrete Mixer,Liquid Mixer,Semi-



liquid Mixer and Rubber Machines etc.









Competitive Advantage:





       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in



       Binghai& Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.





  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more



than 40 professional technical engineers. We had 49 items patents including 7 items of invention



patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent



and 5 items which are accepted by National SIPO wait for approval.





  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-process



selling network. Relying on high quality products and perfect service, our products have been



successfully applied by more than 5000 customers.
