Inline Crossed Helical Gears Shaft Mounted / Parallel Helical Gears

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXG series
Minimum Order Quantity 5 PIECES
Price USD200-2500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 20 Days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Inline Crossed Helical Gears Shaft Mounted / Parallel Helical Gears





Quick Details:



·                                 Gearing Arrangement: Helical



·                                 Output Torque: 180Nm-17000 N.m



·                                 Rated Power: 0.92-226 KW



·                                 Input Speed:500-1400 rpm



·                                 Output Speed: 15.1-280RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: HXG30-HXG125



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 5-31



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc



·                                 Output shaft diameter: 35-135MM





Descriptions:



HXGHXGF

  • Conveyors, components and spare parts for stone crushing plants, cement factories, sand washing plants, concrete batching plants, automatic block factories, ceramic factories, fertilizer factories and for the material handling requirements Stone Crusher Units
  • Shaft Mounted Speed Reducers
  • Geared Motors

The Factory supplies Components and Services for Bulk Material Handling Systems for Stone Quarries, Cement Factories, Sand Washing Plants, Ready Mix Plants and Conveyor System for Industrial Automation for harsh climactic conditions.

Aggregates Mining company with contemporary crushing plants and Mine machineries





Products benefits:



1.     High efficiency



2.     Small volume



3.     strong capacity of being overloaded



4.     Long service life



5.     Anti-leaking oil



6.     simple structure and convenient to be installed and maintained



              Widely application





Specifications:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution







































Product images:

Inline Crossed Helical Gears Shaft Mounted / Parallel Helical Gears 0

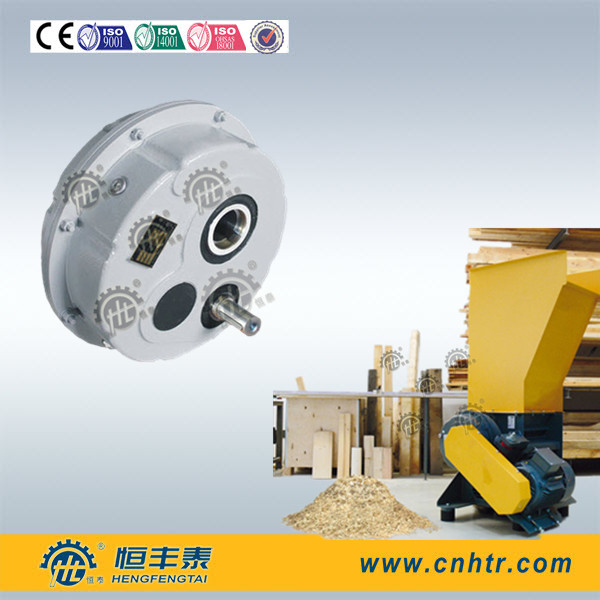

Inline Crossed Helical Gears Shaft Mounted / Parallel Helical Gears 1
