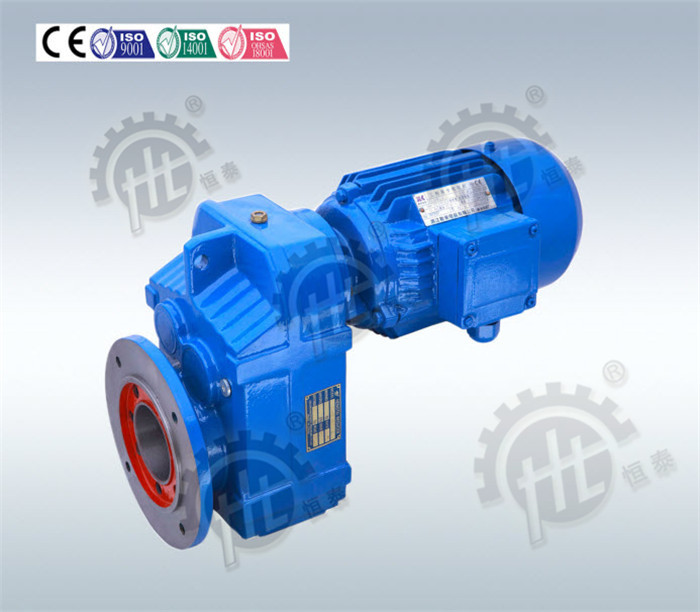

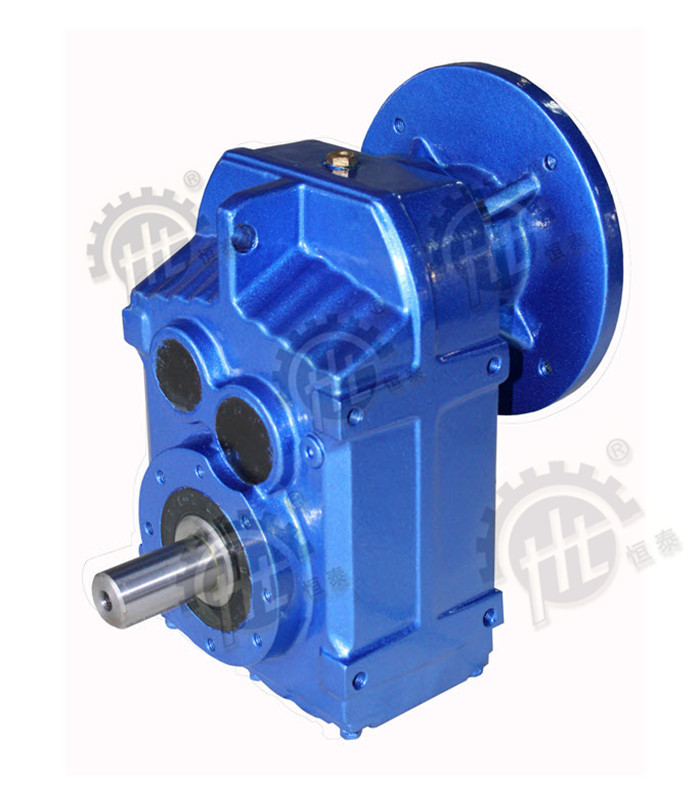

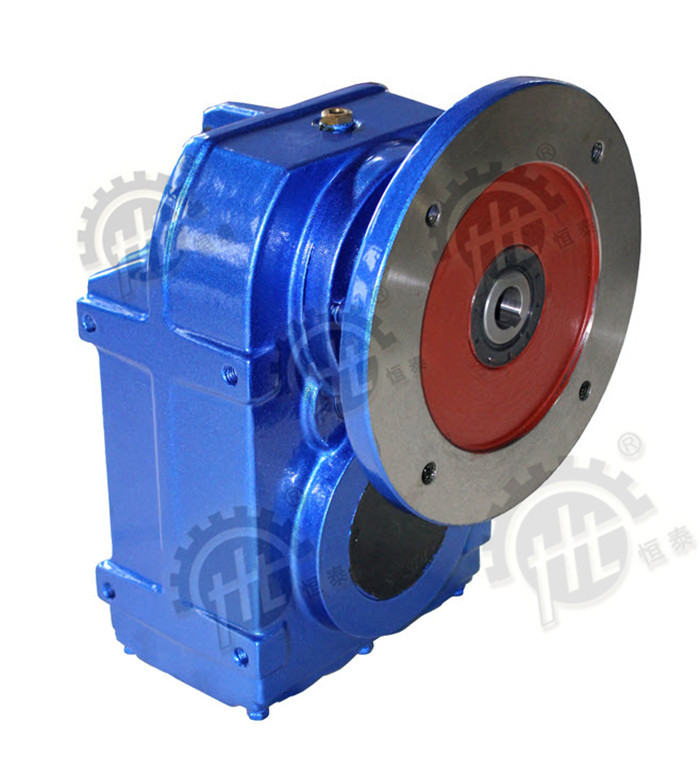

Parallel Helical Gear Reducer Conveyor Belt Gearbox With Small Volume

Parallel Helical Gear Reducer Conveyor Belt Gearbox With Small Volume





Quick Details:



Gearing Arrangement: Helical



Output Torque: 180 N. M- 15300 N. M



Rated Power: 0.12-160 KW



Ratio: 3.71- 262.9



Place of Origin: Zhejiang, China (Mainland)



Model Number: HF(A,F)37-157



Brand Name: HENGTAI



Color: According to customer



Mounting position: Shaft mounted



Material for box: Cast iron



Packing: Strong wooden cases for exporting



Output shaft: Hollow/Solid output shaft



Output shaft diameter: 25-120 (solid) MM,30-120 (hollow) MM





Other name:



F series extra-slim parallel shaft helical gearmotors



F series shaft mounted speed reducer



F series conveyor shaft mounted gearbox





Descriptions:



HF Series Parallel Helical Gear Reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co.,Ltd,



 are the perfect solution when space is limited. The many different sizes and designs ensure that the



Parallel shaft mounted reducer can be used in a wide variety of applications even under the



most unfavorable conditions. Such as agriculture, telecommunications industry, food industry, tobacco



industry, automotive industry, cement industry, mining industry, tourism industry and so on.







Your benefits:



1, Compact design, small volume, nice appearance and strong capacity of being overloaded.



2, Precise division and wide selection range for transmission ratio.



3, The efficiency is up to as high as 96% with low energy consumption, excellent function, small vibration

and low noise.



4, All-purpose use, convenient and low cost maintenance.



5, New seal device .



6, Varied options of the mounting position ,motor combination



7, with small volume , helical gear achieve the output torque range of 69-18000NM and output power as

much as 200KW.





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.





WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.





Applications:



Our F Series Parallel shaft mounted helical gear reducer can be with roller as the power source of belt



conveyor or lifting machine. With the characteristics of conveyor, high efficiency, simple structure,



convenient installation and maintenance. It was widely used in postal, cenment, mining, tourism, food



industry, etc.





Specifications:







Typical installation:











THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution
