Helical Industry Tank Mixers Agitators With High Torque Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | TC series |
| Minimum Order Quantity | ONE PIECE |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1PC PACED IN STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | DEPENDS ON THE SPECIFIC MODEL |
Product Details
| High Light | side entry mixer,industrial agitators mixers |
||
|---|---|---|---|
Product Description

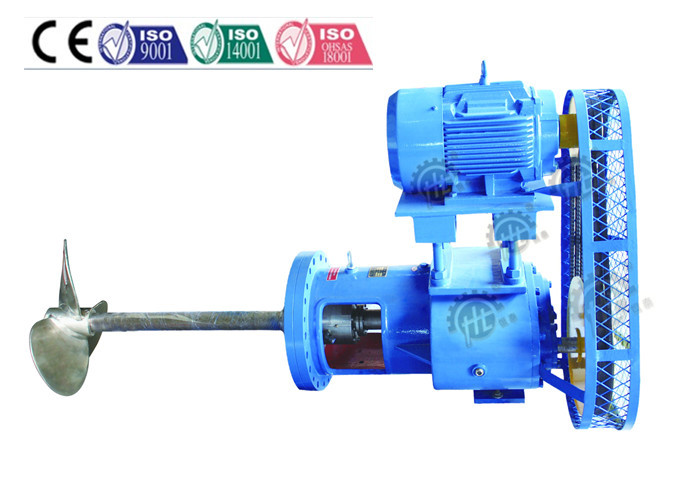

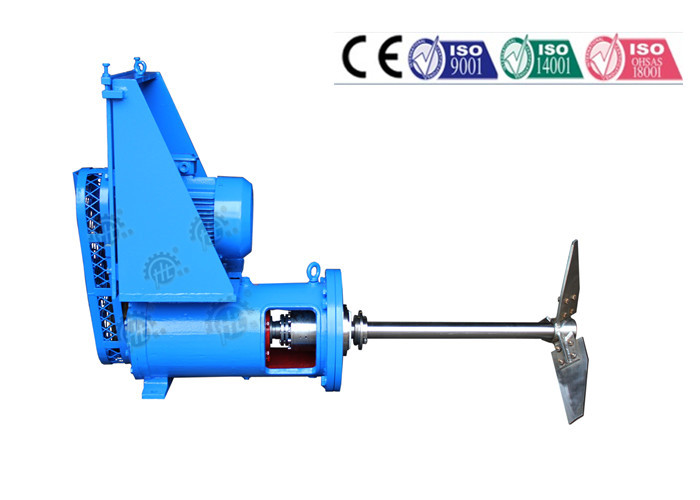

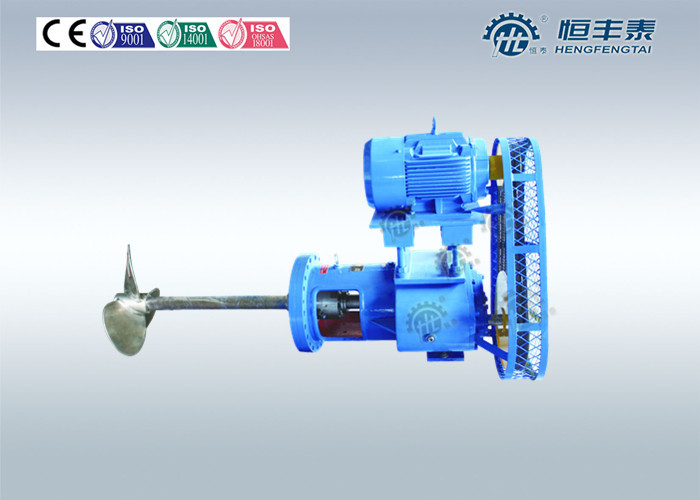

Helical Industry Tank Mixers Agitators With High Torque Gearbox
Quick Details:
|
Gearing Arrangement |
Helical |
|
Output Torque |
45~850N.m |
|
Rated Power |
0.55~22KW |
|
Output Speed |
140~360RPM |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Model Number |
TC series |
|
Brand Name |
HENGTAI |
|
Package |
Standard Fumigation Wooden |
|
Ratio |
4.17~7.5 |
|
Mounting position |
leaning mounted |
Applications:
Mainly applied for :
Desulfurization
Chemical Industry
Machinery for Food Industry
FGD Industry etc.
Other name:
Helical gear side enter agitator reducer for FGD Industry
Leaning mounted agitator gear box for crude oil storage tank Industry
Side enter agitator reducer applied for Desulfurization
Descriptions:
TC series Side Entry Agitator is side entry type mixer.The impellor of such side entry agitator is axial fluent
type,most of them is pushing type,under the same power.It can be get more effect of mixing,and power
consumption just 1/3~2/3 of the center mixing,the cost just 1/4~1/3 of the center mixing.Mixer agitator
reducer can be widely used in desulfurization,de-saltpetre and any mixing of the big size tank or big
kettle.Especially to used one or more than one side-entry mixing which will work together in some big size
tank or big kettle.This kind of mixer agitator reducer can reach the high efficiency with lower power
consumption.
Warranty:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
