Custom Solid Liquid Separation Equipment 3 Point Efficient Sedimentation Thickner

Custom Solid Liquid Separation Equipment 3 Point Efficient Sedimentation Thickner

Quick Detail:

Gearing Arrangement: Planetary

Allowable torque: 12000~400000 Nm

Power range: 3~15 KW

Input Speed: 500-1800 rpm

Output speed: 0.1~ 0.04 rpm

Place of Origin: Zhejiang, China

Lifting distance: 150~500 mm

Mounting position: foot/vertical flange mounted

Model Number: CQC

Brand Name: HENGTAI

Color: According to customer

Other name:

CQC three point efficient settling tank

CQC three point efficient sedimentation thickner

CQC series points settling tank which are widely used in alumina industry

Description:

Solid-Liquid Separation is a major unit operation that exists in almost every flow scheme related to the

chemical process industries, ore beneficiation, pharmaceutics, food or water and waste treatment.

Have been researching for almost 23 years, it is obviously that me made a great progress in these area.

Points settlement tank is just the latest product which is pioneer in domestic.

Points settlement tank, compared with ordinary settlement tank, has a simple process, flow of soil layers

high at the end, scarring less and fluid containing high in the bottom, overflow plankton less, high

productivity per unit area, covers less area and hydrolytic loss low etc.

Applications:

Thickeners are used for dewatering slurries of either tailings or product. A thickener is a large circular tank

that is used to settle out the solid material from the water in the feed slurry. It is widely used for dealing

with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials,

environmental protection department etc.

Specifications:

Lets us pick a topic, red mud settlement of alumina industry, as an example.

Performance Feature:

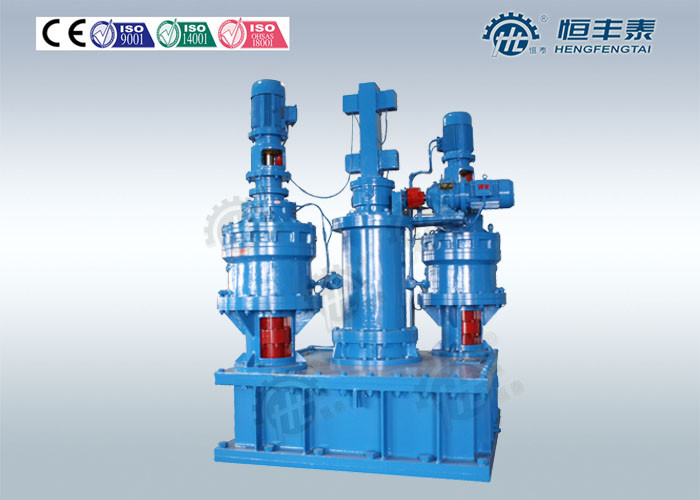

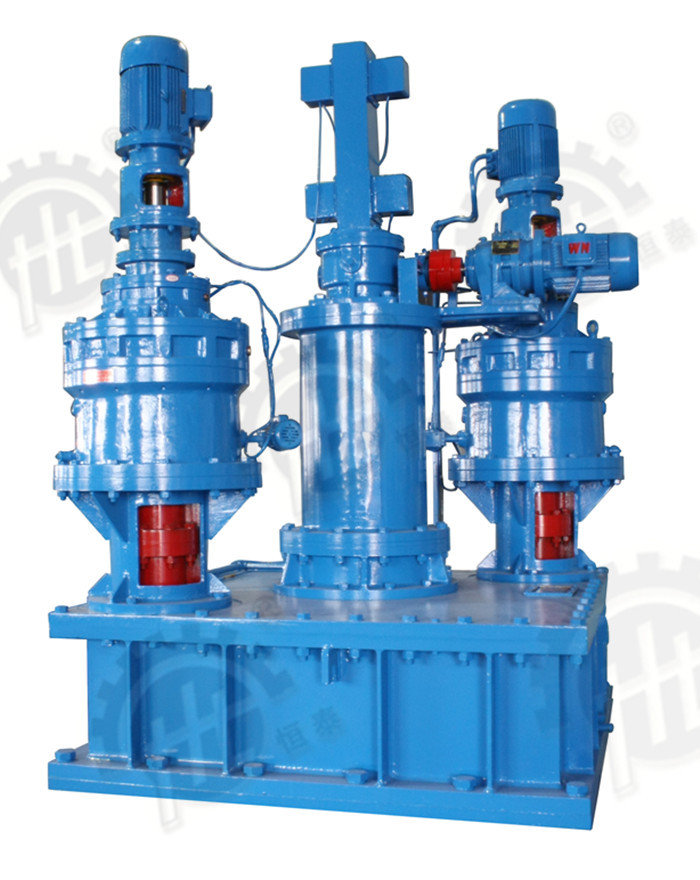

1. CQC series have multiple drive unit, CQC type Drive through the base plate installed on the central

pillar head, driving mechanism include driving mechanism gearbox, made of multi gear drive, Special

structural design can be directly combined elevator, the hollow output shaft with double guide groove,

ensure flexible lifting elevator.

2. Every gear drive unit include a motor and planetary gear reducer, and can install torque overload

detector before the planetary gear reducer, and realize real torque test, PLC module can realize multiple

automatic control mode.

3. 1-2 drive unit can be configured as required, 4 series 8 kinds of models, realize 20KN.m to 281KN.m all

standing, suitable for use in the small settlement which trough mud layer is not high.

4. The data of driving mechanism are below:

    Continuous rated torque 100 % (KN.m):20-281

    Output speed (RPM):0.6-0.1

    Output power (KW):2.2-6

    Elevator input power(KW):0.75-4KW

Competitive Advantage:

1. The tank is high-efficiency and has been identified by NSTC.

2. Compared with the common one, there are the advantages as following:

    Scarring less

    Simple process

    Overflow plankton less,

    Flow of soil layers high at the end

    Fluid containing high in the bottom, etc.
