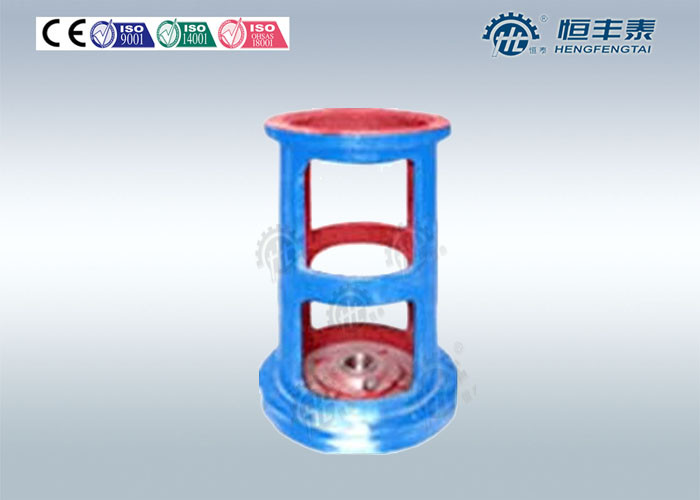

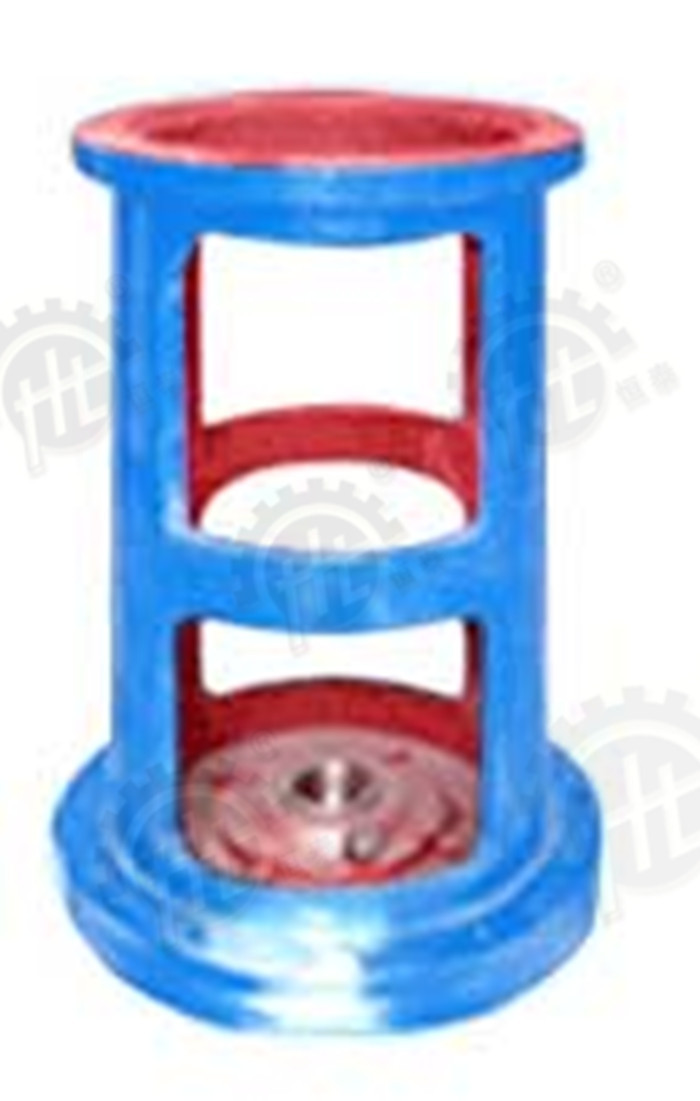

Reducer Gearbox Frame , Mechanical frame rack tilt mounted

Reducer Gearbox Frame , Mechanical frame rack tilt mounted

Quick Detail:


1. Place of Origin: Zhejiang, China (Mainland)
2. Model Number: DXJ
3. Brand Name: HENGTAI
4. Color: According to customer
5. Mounting position: vertical flange mounted or tilt mounted
6. Material for box: cast iron
7. Packing:  1pcs packed in one small box, 7-8 small boxes packed in one wooden crat

Other name:

DXJ Mechanical frame rack

DXJ milled mechanical gearbox frame

DXJ mechanical frame rack of gearbox

Descriptions:


This serie frame supports the output at lower part of frame. No shaft seal is available inside frame. The

reducer output shaft and the mixing shaft is connected by GT rigid flange shaft coupling. This frame

increases the distance between mixing shaft and base frame while shortening the length of cantilever

section, which improves capacity of shaft stiffness and vibration. It is normally adopted in atmospheric and

oepn-container mixing system.



Applications:


This series of mechanical can be matched with all kinds of vertical cycloid reducers and LC, DC gear

reducers, also chose all kinds of shaft coupling types. The series can be divided into WJ (ⅠANDⅡ), DJ

and SJ, and the three kinds of mechanical frames respectively are without bearing, single bearing and

double bearings. Installed different types gusset plate, in definite range, the same mechanical frame can

be matched with reducer of different type(gear and cycloid) and diameter of out view shaft. Size of gusset

plate and shaft coupling is adjusted and provided by our factory.


Specifications:
