Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 5 PIECES
Price USD230-2300
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer





Quick Details



Rated Power: 0.12~ 200KW



Ratio: 4.09~ 195.2



Output Torque: 170~ 42500N.m



Gearing Arrangement: bevel gear





Input and output Speed: according related parameter list



Place of Origin: Zhejiang, China( Mainland)



Model Number: HK series



Brand Name: HENGTAI



Color: According to customer



Mounting position: foot- mounted and flange-mounted



Material for box: Cast Iron



Packing: Standard Fumigation Wooden





Descriptions:





Our K series bevel gear reducer of right angle gearmotors do not have any thermal restrictions because of optimum lubrication



compact and space-saving design low friction.



The K series bevel gear reducer of right angle gearmotors is the first product to prove equally good in



regard to efficiency and versatility within a highly competitive context, both performance and price-wise.



We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that



the K series of right angle gearmotors do not reveal any noticeable wear.





Specification:



           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output





Your benefits:



1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



5.      Same reducer as SEW K series





Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter presses



Shredders/compacters



Chip conveyors





The cause for breakdown and settlement of reducer:



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution

















Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.

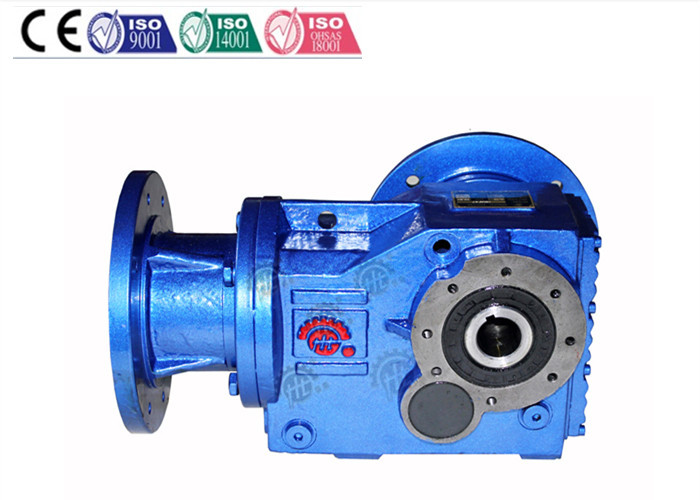

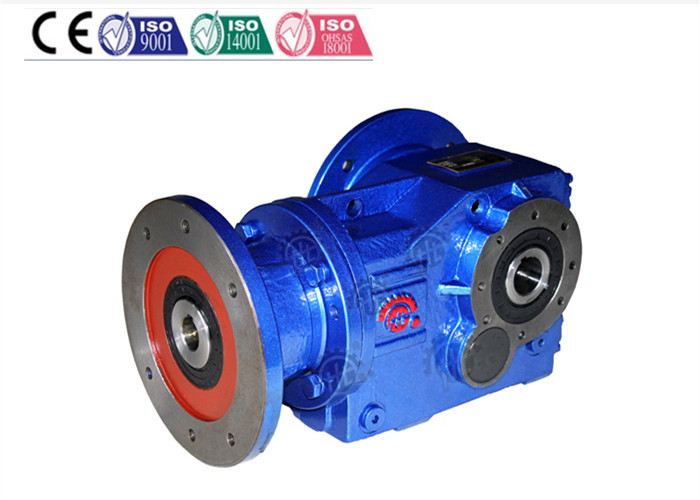

Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer 0Flange Mounted Bevel Gear Reducer Gearbox With Ratio Waste Water Mixer 1
