Parallel Shaft Helical Gear Reducer Power Transmission Gear units

  • img.alt
  • img.alt
Place of Origin Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HH series
Minimum Order Quantity 1 PIECES
Price USD500-USD10000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 600 PCS PER MONTH
Product Details
Mounted Foot Mounted (B3/M1) Output Shaft Solid Or Hollow Shaft
Power Range 15~4500 KW Ratio Range 1.25~450
Cooling Copper Tube, Fan Lubrication Oil Pump
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Parallel Shaft Helical Gear Reducer Power Transmission Gear units





Technical data:



Output Torque

450000 N.m

Rated Power

1.1-5100KW

Input Speed

750-1500 rpm

Output Speed

1.67-1200RPM

Ratio

1.25-450

Output shaft diameter

30-420MM





Goods descriptions:·



Gearing Arrangement: Helical

Place of Origin: Zhejiang, China (Mainland)

Model Number: H1SH3-H4SH26

Brand Name: HENGTAI

Color: According to customer

Mounting position: foot mounted

Material for box: cast iron

Packing: Strong wooden cases for exporting

Output shaft: Solid or hollow output shaft

Accessories: cooling system, lubrication system



H.H series helical gear reducer are especially compact helical and helical-bevel gear units. H.H series



helical gear unit reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of H.H series



helical gear reducer offers you a great deal of freedom in system design and requires remarkably little



space. Application range for H.H series helical gear reducer: e.g. in materials handling, transporting



heavy loads, mixing, crane drives and shredders. A version, based on this series, with extended bearing



distance and reinforced output shaft, is also available.





Model details:



Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft

H. Hollow Shaft

D. Hollow Shaft for Shrink Disk

H: Horizontal

V: Vertical

M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000





Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26









Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives





Storage:

1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.





Warranty:



HFT guarantees the products sold for one year from the date of delivery 18 Months.





Your benefits:



1. Extremely robust gear unit housing



2. Reduced costs and weight due to high power density and finely stepped sizes



3. Effective cooling systems



4. CCW and CW versions may be implemented in a single gear unit version



5. Flexible mounting capability



6. Efficient project planning tools including 2D and 3D dimension drawing generators



7. Short delivery times for standard versions and spare parts

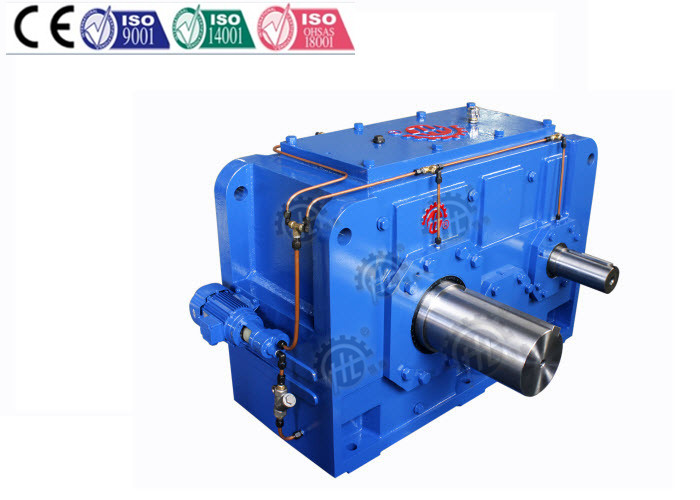

Parallel Shaft Helical Gear Reducer Power Transmission Gear units 0

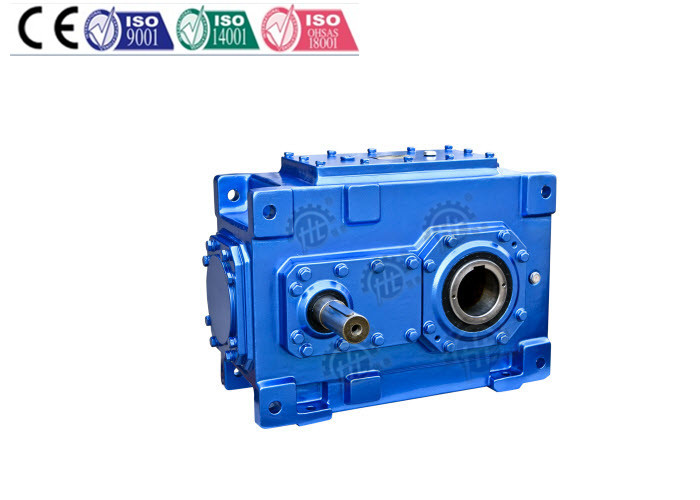

Parallel Shaft Helical Gear Reducer Power Transmission Gear units 1
