High Torque Helical Bevel Speed Reducers Gearbox 3 Stage Hollow Output
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HH series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD1000-100000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100 PCS PER MONTH |
Product Details
| High Light | inline helical gearbox,helical bevel gearbox |
||
|---|---|---|---|
Product Description

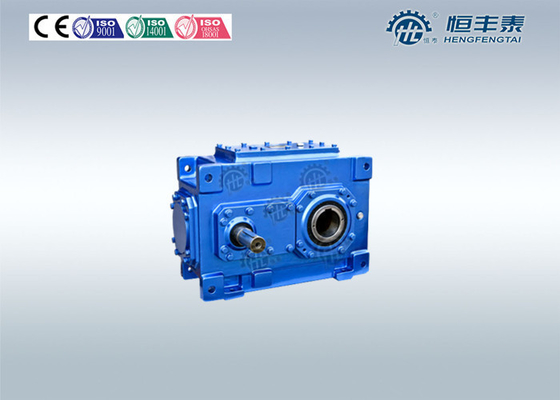

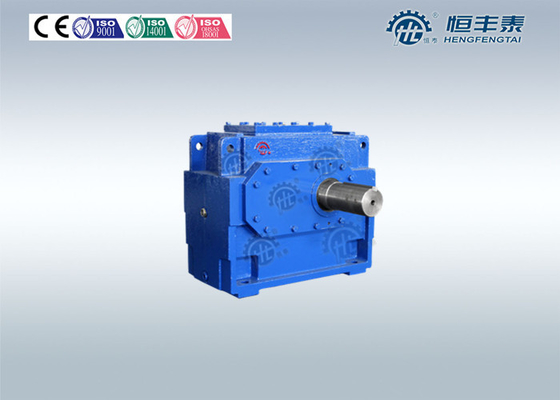

High Torque Helical Bevel Speed Reducers Gearbox 3 Stage Hollow Output
Quick Details:
· Material for box: cast iron
· Gearing Arrangement: Helical
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: H1SH3-H4SH26
· Brand Name: HENGTAI
· Mounting position: foot mounted
· Packing: Strong wooden cases for exporting
· Output shaft: Solid or hollow output shaft
· Accessories: cooling system, lubrication system
|
Output Torque |
450000 N.m |
|
Rated Power |
1.1-5100KW |
|
Input Speed |
750-1500 rpm |
|
Output Speed |
1.67-1200RPM |
|
Ratio |
1.25-450 |
|
Output shaft diameter |
30-420MM |
Descriptions:
H.H series helical gear reducer are especially compact helical and helical-bevel gear units. H.H series
helical gear unit reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of H.H series
helical gear reducer offers you a great deal of freedom in system design and requires remarkably little
space. Application range for H.H series helical gear reducer: e.g. in materials handling, transporting
heavy loads, mixing, crane drives and shredders. A version, based on this series, with extended bearing
distance and reinforced output shaft, is also available.
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
|
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
|
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
The cause for breakdown and settlement of reducer:
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or
replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.
The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or
indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are
more than 40 professional technical engineers. We had 49 items patents including 7 items of
invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international
invention patent and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-
process selling network. Relying on high quality products and perfect service, our products have
been successfully applied by more than 5000 customers.
