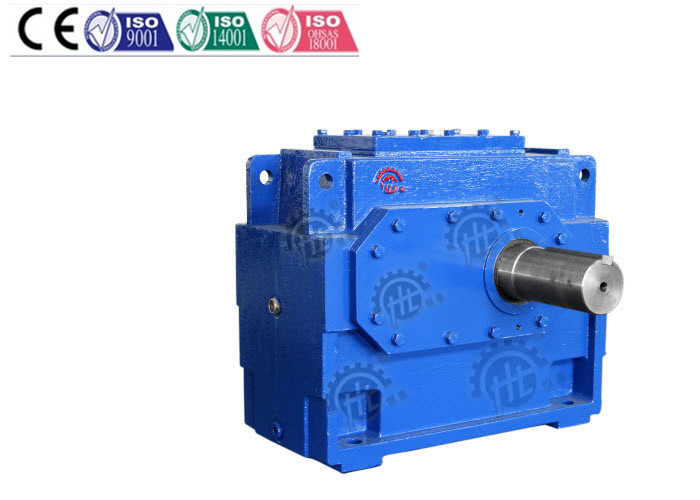

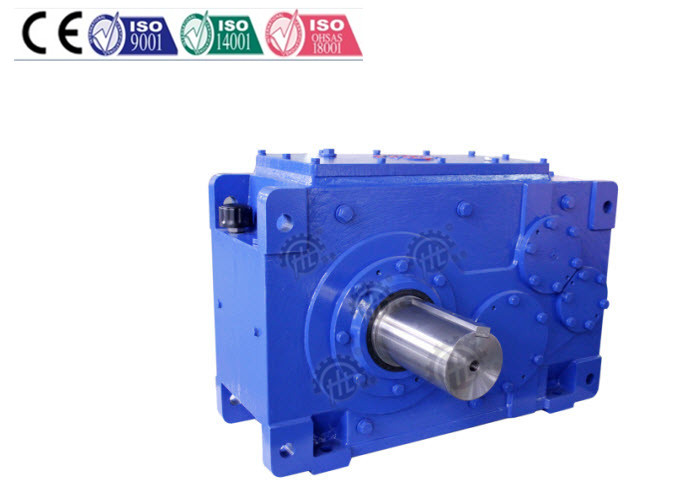

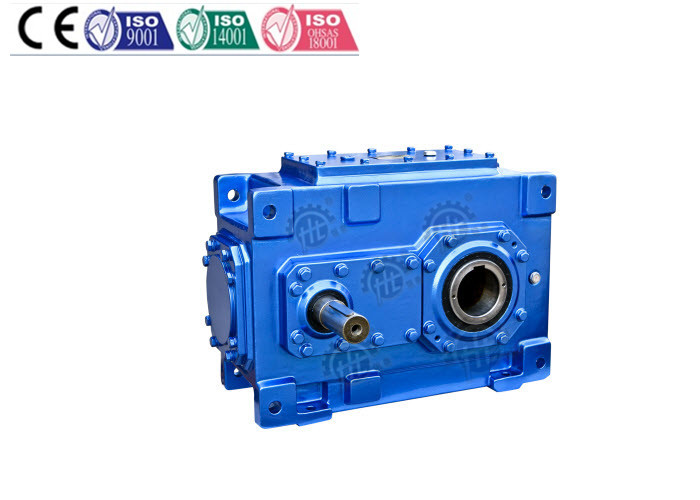

Plastic Helical Double Reduction Gearbox 1400rpm High Speed

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HH series
Minimum Order Quantity 5 PIECES
Price USD1000-100000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
Application Extruder
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Plastic Helical Double Reduction Gearbox 1400rpm High Speed





Quick Details:



Applications:  Bucket elevator drives,Separator drives,Water screw drives,Conveyor drives



Output Torque

450000 N.m

Rated Power

1.1-5100KW

Input Speed

750-1500 rpm

Output Speed

1.67-1200RPM

Ratio

1.25-450

Output shaft diameter

30-420MM





Descriptions:



H.H series helical gear reducer are especially compact helical and helical-bevel gear units. H.H series



helical gear unit reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of H.H series



helical gear reducer offers you a great deal of freedom in system design and requires remarkably little



space. Application range for H.H series helical gear reducer: e.g. in materials handling, transporting



heavy loads, mixing, crane drives and shredders. A version, based on this series, with extended bearing



distance and reinforced output shaft, is also available.





Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26







Your benefits:



1. Extremely robust gear unit housing



2. Reduced costs and weight due to high power density and finely stepped sizes



3. Effective cooling systems



4. CCW and CW versions may be implemented in a single gear unit version



5. Flexible mounting capability



6. Efficient project planning tools including 2D and 3D dimension drawing generators



7. Short delivery times for standard versions and spare parts









The cause for breakdown and settlement of reducer:



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution





















Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



     Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.



Plastic Helical Double Reduction Gearbox 1400rpm High Speed 0



Plastic Helical Double Reduction Gearbox 1400rpm High Speed 1
