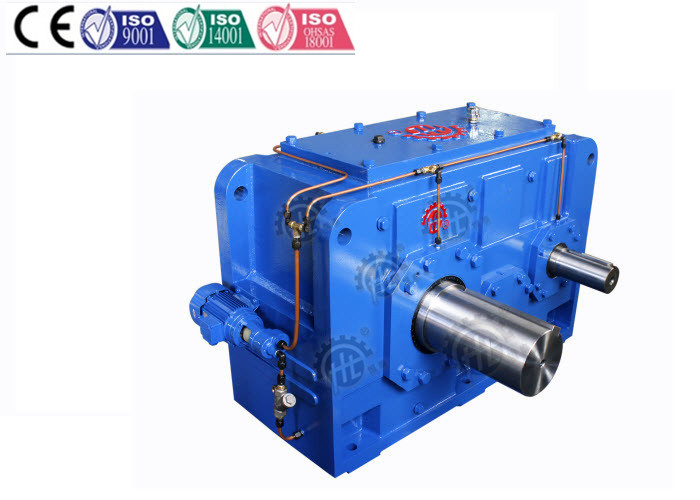

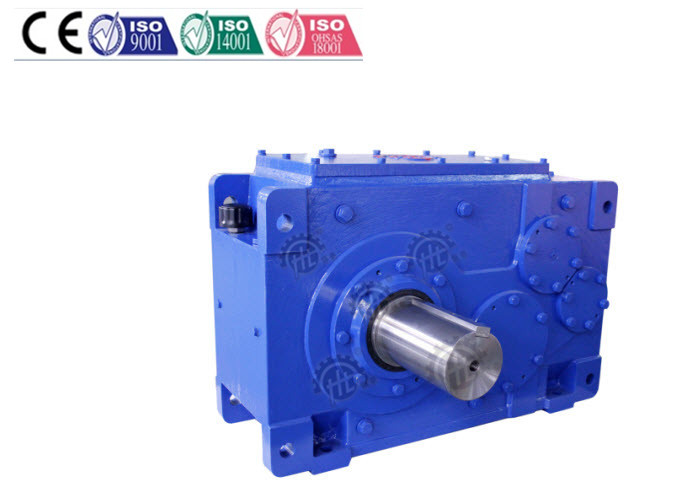

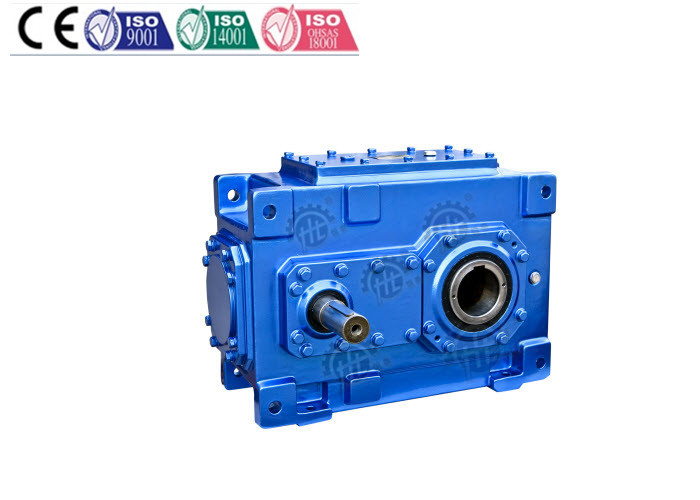

Power Transmission Shaft Mounted Speed Reducer Large Torque Range

Power Transmission Shaft Mounted Speed Reducer Large Torque Range





Quick Details:





·         Gearing Arrangement: Helical



·         Place of Origin: Zhejiang, China (Mainland)



·         Model Number: H1SH3-H4SH26



·         Brand Name: HENGTAI



·         Color: According to customer



·         Mounting position: foot mounted



·         Material for box: cast iron



·         Packing: Strong wooden cases for exporting



·         Output shaft: Solid or hollow output shaft



·         Accessories: cooling system, lubrication system





Output Torque	450000 N.m
Rated Power	1.1-5100KW
Input Speed	750-1500 rpm
Output Speed	1.67-1200RPM
Ratio	1.25-450
Output shaft diameter	30-420MM





Applications of Shaft Mounted Speed Reducer  :



Bucket elevator drives,Separator drives,Water screw drives,Conveyor drives







Descriptions:



H.H series Shaft Mounted Speed Reducer  are especially compact helical and helical-bevel gear units. H.H



series Shaft Mounted Speed Reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of



H.H series Shaft Mounted Speed Reducer offers you a great deal of freedom in system design and requires



remarkably little space. Application range for H.H series Shaft Mounted Speed Reducer: e.g. in materials



handling, transporting heavy loads, mixing, crane drives and shredders. A version, based on this series,



with extended bearing distance and reinforced output shaft, is also available.







Specification:



Series	Transmission Ratio  (i)	models
H1	1.25-5.6	H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19
H2	6.3-28	H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,   H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
H3	25-112	H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,   H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
H4	100-450	H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,   H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26





Your benefits:



1. Extremely robust gear unit housing



2. Reduced costs and weight due to high power density and finely stepped sizes



3. Effective cooling systems



4. CCW and CW versions may be implemented in a single gear unit version



5. Flexible mounting capability



6. Efficient project planning tools including 2D and 3D dimension drawing generators



7. Short delivery times for standard versions and spare parts









Applications:



Photo: HH series Shaft Mounted Speed Reducer applied in Factory



Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.



The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution



































Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.









Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



     Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.
