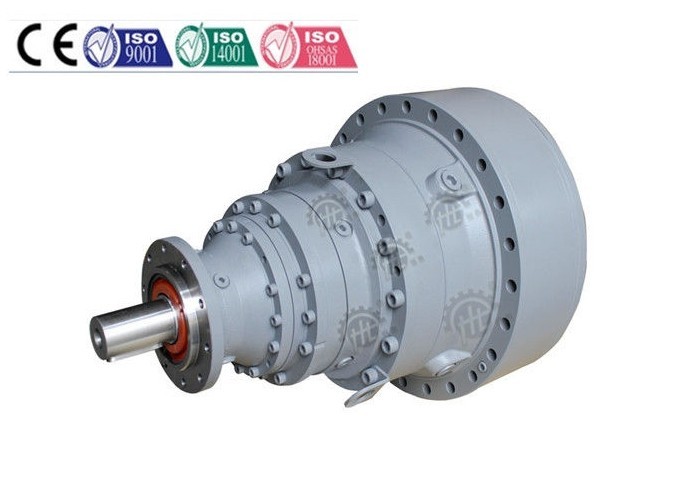

Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted

  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HN series
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

Low Backlash Planetary Gearbox

,

parallel shaft helical gearbox
Leave a Message
Product Description

Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted





Quick Details:





Power range:

0.4∼ 9551 KW

Ratio rang:

I = 3.5∼15000



Torque rang:

450∼11205000 N.m

Input Speed:

750rpm – 1800 rpm

Output Speed:

0.1 rpm- 350 rpm

Gearcase housing:

HT cast Iron Housing suitable for outdoor installation



Mounting position:

foot mounted,  hollow shaft mounted,  solid shaft mounted

Output shaft:

hollow shaft , solid shaft

Backstop:

Available on all frame sizes With/without anti-back Backstop









Descriptions:





With the HN Series Planetary Gear Reducer unit series, HENGTAI provides also standardized gear unit



solutions for higher power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic



types the PLANUREX series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of



4,000:1.



This type of efficiency ensures that a high proportion of the energy being input is transmitted through the



gearbox, rather than being wasted on mechanical losses inside the gearbox.







Benefits:





  • Low weight and compact, place-saving design owing to a load sharing system



  • Saving operating expenses owing to high efficiencies and optimized maintenance intervals



  • Easy to combine with other gear units, e.g. primary helical, worm, bevel, or bevel-helical gear units



  • Low-noise running owing to low rolling and sliding speeds at the tooth flan







Specifications:





Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W



Sizes:9,10,11,12,13,14,16,17,18,19,20



Model

HN2B

9

10

11

12

13

14

16

17

18

19

20

Output Torque(Nm)

22000

31000

42000

60000

83000

117000

160000

202000

244000

295000

35400







Applications:





  • Roller presses



  • Slewing gear drives



  • Bucket wheel drives



  • Apron conveyor drives



  • Agitator drives





Storage:





1: Pls do not store in outdoor.



2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



   touch the floor.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution







Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.







We have the most advanced equipment:

German imports of processing equipment

Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 0



Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 1



Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 2



Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 3



Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 4



Miniature Industrial Planetary Gearbox High Torque , Shaft Mounted 5
