Shaft Mount Helical Gear Reducer Motor / 2 Stage Gear Box

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXG series
Minimum Order Quantity 5 PIECES
Price USD200-2500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 20 days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Shaft Mount Helical Gear Reducer Motor / 2 Stage Gear Box





Quick Details:





Model Number



HXG30-HXG125



Output shaft diameter



35-135MM



Ratio



 5-31



Input Speed



500-1400 RPM



Output Speed



15.1-280RPM



Rated Power



0.92-226 KW



Output Torque



180Nm-17000 N.m









Products benefits:

  • CASE MATERIAL IS GG20 CASTING MATERIAL
  • CASE HAVE MORE STRENGTH AND ESTHETIC VIEW
  • PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS
  • LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS
  • GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED
  • CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH
  • GRINDING AND SCRAPING ARE APPLIED TO GEARS
  • SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS



Applications:

Grinding Plant

Ultra Fine Vertical Grinding Mill
Mobile Jaw Crusher
VM – Vertical Grinding Mill
European Type Grinding Mill
Micro Powder Mill
Trapezium Mill
Raymond Mill
Ball Mill
European Hammer Mill



Washing & Screening Machine

Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine





Specifications:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm





Competitive Advantage:



      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.





Product Informations:

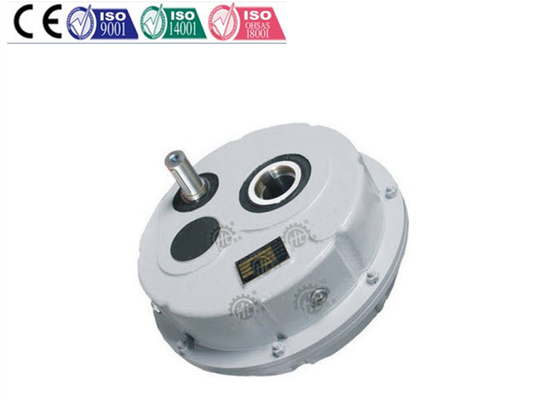

Shaft Mount Helical Gear Reducer Motor / 2 Stage Gear Box 0

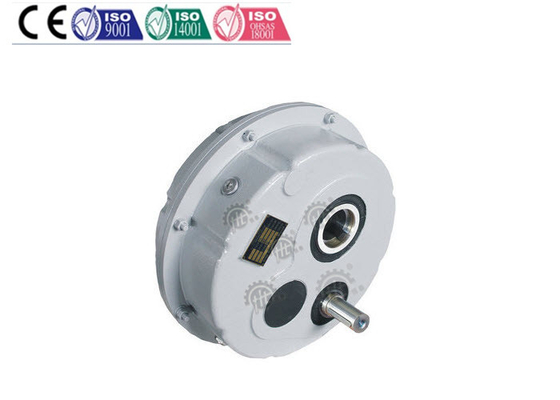

Shaft Mount Helical Gear Reducer Motor / 2 Stage Gear Box 1
