No Noisy Simple Industrial Mixer Blades Connecting Vertical Reducer
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | JQ |
| Minimum Order Quantity | 10 pieces |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000pcs/month |
Product Details
| High Light | flexible shaft couplers,transmission shaft and coupling |
||
|---|---|---|---|
Product Description

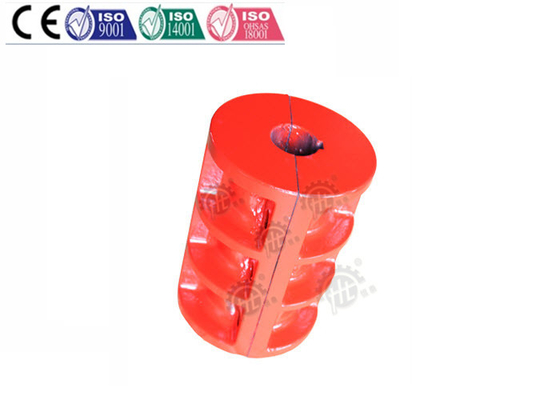

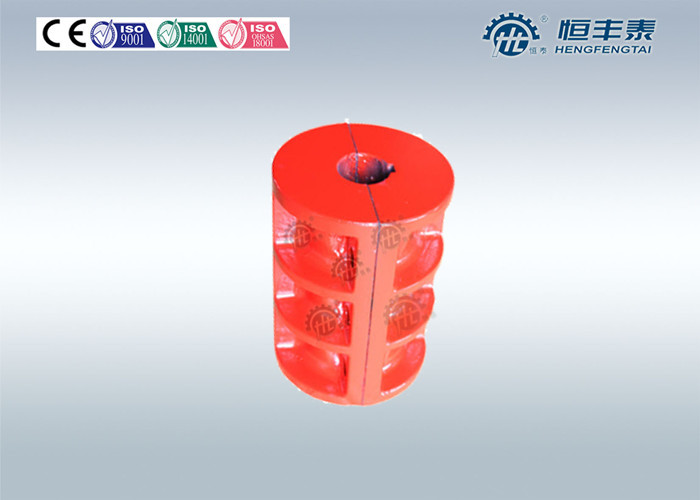

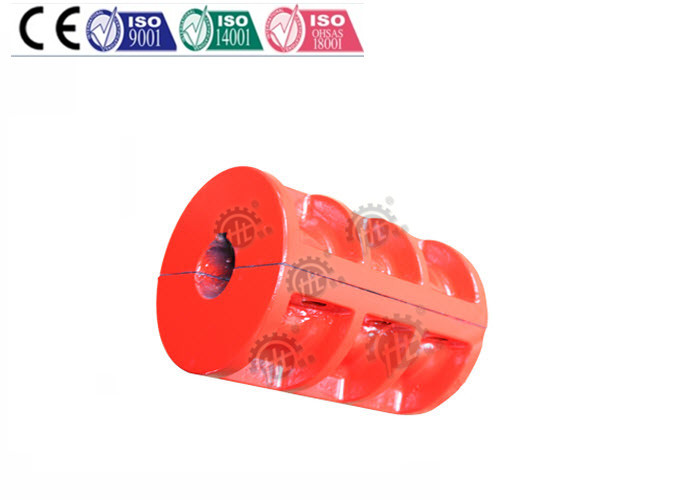

Stainless Steel Flexible Shaft Coupling connecting vertical reducer
Quick details:
· Material:Stainless Steel
· Type: Flexible
· Structure:Universal
· Model No.:JQ
· Hole diameter range:25~200H7
· Weight range:4.47~516kgs
Descriptions:
JQ shell case Flexible Shaft Coupling is used to connect shaft of vertical reducer I with milled shaft
retort.Choose relative JQ shaft diameter according to shaft diameter of vertical reducer I. Spherical shell
Flexible Shaft Coupling is the use of the axial split two spherical shell with bolt clamping for two and a half
shaft connection by two coupling surface friction transmission torque in the flat key is used as the auxiliary
connections
Specifications:
|
Sygned symbol |
Hole diameter |
Mmax(Nm) |
Weight(kg) |
|
JQ25 |
25 |
90 |
4.47 |
|
JQ30 |
30 |
90 |
4.47 |
|
JQ35 |
35 |
236 |
7.60 |
|
JQ40 |
40 |
236 |
7.60 |
|
JQ45 |
45 |
530 |
10.85 |
|
JQ50 |
50 |
530 |
10.85 |
|
JQ55 |
55 |
530 |
10.85 |
|
JQ60 |
60 |
1400 |
25.06 |
|
JQ65 |
65 |
1400 |
25.06 |
|
JQ70 |
70 |
1400 |
25.06 |
|
JQ80 |
80 |
2650 |
30.16 |
|
JQ85 |
85 |
2650 |
30.16 |
|
JQ90 |
90 |
5200 |
56.38 |
|
JQ95 |
95 |
5200 |
56.38 |
|
JQ100 |
100 |
5200 |
56.38 |
|
JQ105 |
105 |
5200 |
56.38 |
|
JQ110 |
110 |
9000 |
90 |
|
JQ115 |
115 |
9000 |
90 |
|
JQ120 |
120 |
9000 |
90 |
|
JQ125 |
125 |
15000 |
125 |
|
JQ130 |
130 |
15000 |
125 |
|
JQ140 |
140 |
15000 |
125 |
|
JQ150 |
150 |
28000 |
215 |
|
JQ160 |
160 |
28000 |
215 |
|
JQ180 |
180 |
31000 |
350 |
|
JQ200 |
200 |
33750 |
516 |
Your benefits:
1. Better shock absorption
2. Simple structure
3. steable working
4. No noisy
5. Without lubrication
6. Convenient maintenance
7. Easy assembly
8. Excellent manufacturability
9. Low cost
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
