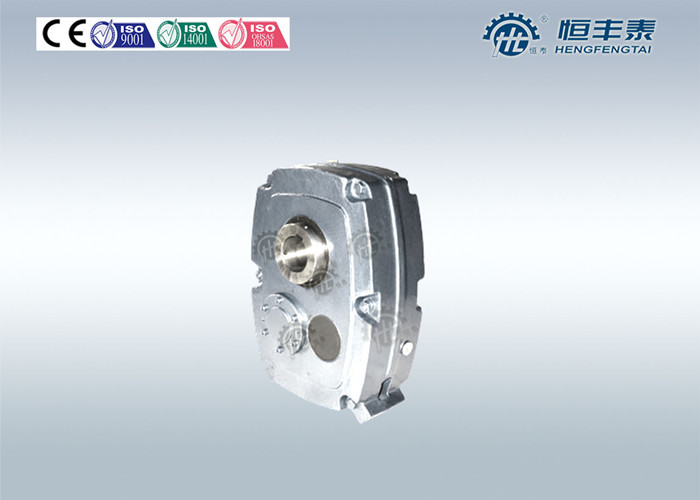

High Speed Helical Gear Reducer / SMSR Gearbox Speed Reducer

  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity 5 PIECES
Price USD200-USD7000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description



High Speed Helical Gear Reducer / SMSR Gearbox Speed Reducer





Quick Details:



 Gearing Arrangement: Helical



·                                 Rated Power: 0.29-134.2kw



·                                 Output Speed:256- 7499 RPM(Na=100rpm )



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: HXGF30-HXG100



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 5-20



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



.                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc



·                                 Output shaft diameter: 30-120MM





Descriptions:



  • Sizes: The “HXGF”  Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
  • Ratios: These 8 Sizes May Have Nominal Ratios 05:1, 13:1, 20:1.

OUTPUT
RPM

B5

C5

D5

E5

F5

G5

H5

J5

50

1.35

2.50

3.85

5.55

8.30

12.10

19.30

31.50

100

2.69

4.60

6.30

11.20

16.50

25.20

39.00

61.00

150

3.60

5.70

8.90

14..00

20.00

35.00

50.40

78.00

200

4.30

6.70

10.50

16.60

24.00

40.00

60.00

93.00

250

4.60

7.70

12.00

18.00

27.50

46.00

68.00

107.0

OUTPUT
RPM

B13
B20

C13
C20

D13
D20

E13
E20

F13
F20

G13
G20

H13
H20

J13
J20

10

0.29

0.50

0.80

1.30

1.90

3.30

4.70

7.45

20

0.60

1.10

1.70

2.50

4.10

7.00

10.00

15.80

30

0.80

1.70

2.60

4.20

6.20

10.50

15.00

24.00

40

1.15

2.20

3.50

5.50

8.10

14.00

20.00

31.00

50

1.40

2.50

4.00

6.30

9.40

16.00

23.00

36.00

60

1.70

3.00

4.70

7.40

11.10

19.00

27.00

42.5

70

1.90

3.30

5.20

8.25

12.10

21.00

30.00

46.00

80

2.20

3.90

6.15

9.65

14.20

24.50

35.00

54.00

90

2.40

4.40

6.80

10.70

15.70

27.00

39.00

60.00

100

2.70

4.60

7.20

11.30

16.60

28.50

41.00

63.50

TORQUE
AT 10RPM
 in NM

275

510

810

1270

1865

3230

4650

7100

TORQUE
AT 70 RPM
in NM

260

420

740

1120

1790

2950

4550

6600





Your benefits:



Quick & easy installation and adjustment of gearbox. (Elimination of foundations)

  • Various ranges of output RPM and power requirements with durability.
  • Low power consumption and provide high range of torque.
  • Flexible motor mounted in a convenient position.
  • High efficiency and low maintenance.

SMSR Gearbox Are Totally Enclosed And Consist Of Hardened & Precision Machined Alloy Steel Gears Mounted On Highly Finished Shafts Supported On Long Life Bearings Of Capacity To Take Maximum Load. Two Piece Close Grain C.I. Housing Provide Sturdy Support And Insures Permanent Accurate Alignment Of All Components.







Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.







Applications:



Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture
