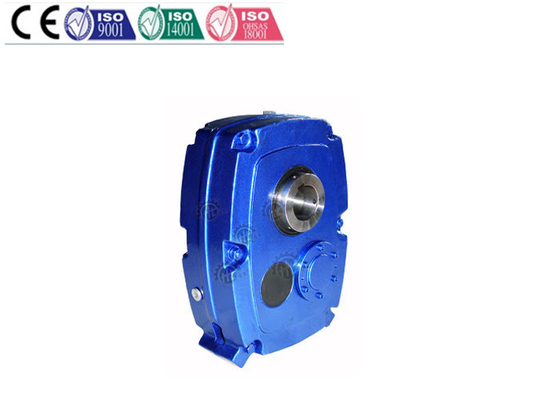

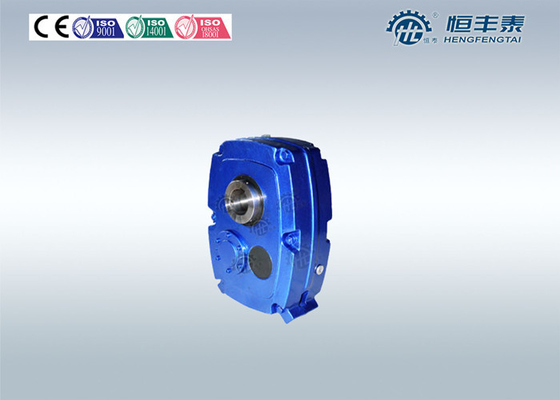

AC / DC Motor Helical Gear Reducer High Torque 1750 rpm Shaft mounted
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD120-2200 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20 days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | helical speed reducer,helical bevel gearbox |
||
|---|---|---|---|
Product Description
AC / DC Motor Helical Gear Reducer High Torque 1750 rpm Shaft mounted
Quick Details:
|
|
HXGF30-HXG100 |
|
Output shaft diameter
|
30-120MM |
|
Ratio
|
5-20 |
|
Input Speed
|
500-1400 RPM |
|
Output Speed
|
256- 7499 RPM(Na=100rpm ) |
|
Rated Power |
0.29-134.2 KW |
|
Output Torque
|
180Nm-17000 N.m |
|
Other Details:
· Gearing Arrangement: Helical
· Place of Origin: Zhejiang, China (Mainland)·
· Brand Name: HENGTAI
· Color: According to customer
· Mounting position: Shaft mounted
· Material for box: cast iron
· Packing: Strong wooden cases for exporting
· Output shaft: Hollow output shaft
· Accessories: Backstop, Torque arm, etc
|
|
·
Descriptions:
- Sizes: The “HXGF” Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
- Ratios: These 8 Sizes May Have Nominal Ratios 05:1, 13:1, 20:1.
|
OUTPUT |
B5 |
C5 |
D5 |
E5 |
F5 |
G5 |
H5 |
J5 |
|
50 |
1.35 |
2.50 |
3.85 |
5.55 |
8.30 |
12.10 |
19.30 |
31.50 |
|
100 |
2.69 |
4.60 |
6.30 |
11.20 |
16.50 |
25.20 |
39.00 |
61.00 |
|
150 |
3.60 |
5.70 |
8.90 |
14..00 |
20.00 |
35.00 |
50.40 |
78.00 |
|
200 |
4.30 |
6.70 |
10.50 |
16.60 |
24.00 |
40.00 |
60.00 |
93.00 |
|
250 |
4.60 |
7.70 |
12.00 |
18.00 |
27.50 |
46.00 |
68.00 |
107.0 |
|
OUTPUT |
B13 |
C13 |
D13 |
E13 |
F13 |
G13 |
H13 |
J13 |
|
10 |
0.29 |
0.50 |
0.80 |
1.30 |
1.90 |
3.30 |
4.70 |
7.45 |
|
20 |
0.60 |
1.10 |
1.70 |
2.50 |
4.10 |
7.00 |
10.00 |
15.80 |
|
30 |
0.80 |
1.70 |
2.60 |
4.20 |
6.20 |
10.50 |
15.00 |
24.00 |
|
40 |
1.15 |
2.20 |
3.50 |
5.50 |
8.10 |
14.00 |
20.00 |
31.00 |
|
50 |
1.40 |
2.50 |
4.00 |
6.30 |
9.40 |
16.00 |
23.00 |
36.00 |
|
60 |
1.70 |
3.00 |
4.70 |
7.40 |
11.10 |
19.00 |
27.00 |
42.5 |
|
70 |
1.90 |
3.30 |
5.20 |
8.25 |
12.10 |
21.00 |
30.00 |
46.00 |
|
80 |
2.20 |
3.90 |
6.15 |
9.65 |
14.20 |
24.50 |
35.00 |
54.00 |
|
90 |
2.40 |
4.40 |
6.80 |
10.70 |
15.70 |
27.00 |
39.00 |
60.00 |
|
100 |
2.70 |
4.60 |
7.20 |
11.30 |
16.60 |
28.50 |
41.00 |
63.50 |
|
TORQUE |
275 |
510 |
810 |
1270 |
1865 |
3230 |
4650 |
7100 |
|
TORQUE |
260 |
420 |
740 |
1120 |
1790 |
2950 |
4550 |
6600 |
Your benefits:
Quick & easy installation and adjustment of gearbox. (Elimination of foundations)
- Various ranges of output RPM and power requirements with durability.
- Low power consumption and provide high range of torque.
- Flexible motor mounted in a convenient position.
- High efficiency and low maintenance.
SMSR Gearbox Are Totally Enclosed And Consist Of Hardened & Precision Machined Alloy Steel Gears Mounted On Highly Finished Shafts Supported On Long Life Bearings Of Capacity To Take Maximum Load. Two Piece Close Grain C.I. Housing Provide Sturdy Support And Insures Permanent Accurate Alignment Of All Components.
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
Applications:
Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:
Baggage handing
Pulp, paper, and forestry
Aggregate and mining
Mixers and process equipment
Grain and agriculture
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
