Shaft Mounted Helical Gear Reducer Box , Worm Gear Speed Reducer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXG series
Minimum Order Quantity 5 PIECES
Price USD200-2500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 20 Days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Shaft Mounted Helical Gear Reducer Box , Worm Gear Speed Reducer





Quick Details:



Torque range (n1 = 900 min-1)

150 Nm … 16.000 Nm

Mechanical rating (n1 = 900 min-1)

1, 1 kW … 156 kW

Gear ratios

iN = 5, 0 … 31, 5

Output shaft

Keyed hollow shaft Upto three bore options per frame size

Gearcase

Sturdy cast housing suitable for outdoor installation

Backstop

Available on all frame sizes – externally accessible





Descriptions:



We are a major distributors of TA Series Shaft Mounted Speed Reducers.

Our procurements are from a renowned vendorship that have a longstanding relationship.

We provide a state-of the art warehouse facility with moisture and temperature control facilities.



TA Helical parallel shaft mounted gear motor Spare Parts List



1. Casing

11. Bearing

21. Hex.head screw

31. Spacer ring

41. Pin for bracket

2. Cover

12. Bearing

22. Spring washer

32. Spacer ring

42. Pin for support

3. Rubber cap

13. Bearing

23. Hexagonal nut

33. Support

43. Cotter pin

4. Output shaft

14. Oilseal

24. Hexagonal head screw

34. Key



5. Gearwheel



15. Oilseal



25. Breather plug



35. Support





6. Input shaft



16. Rubber cap



26. Level plug



36. Bracket





7. Spacer ring



17. Circlip



27. Drain plug



37. Torque arm





8. Spring washer



18. Key



28. Rubber Cap



38. Right tie-rod





9. Gasket



19. Key



29. Spacer ring



39. Left tie-rod





10. Gasket



20. Dowel Pin



30. Clutch element



40. Hexagonal nut









Products benefits:



1.     High efficiency



2.     Small volume



3.     strong capacity of being overloaded



4.     Long service life



5.     Anti-leaking oil



6.     simple structure and convenient to be installed and maintained



              widely application





Specifications:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm







Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.





Product informations:

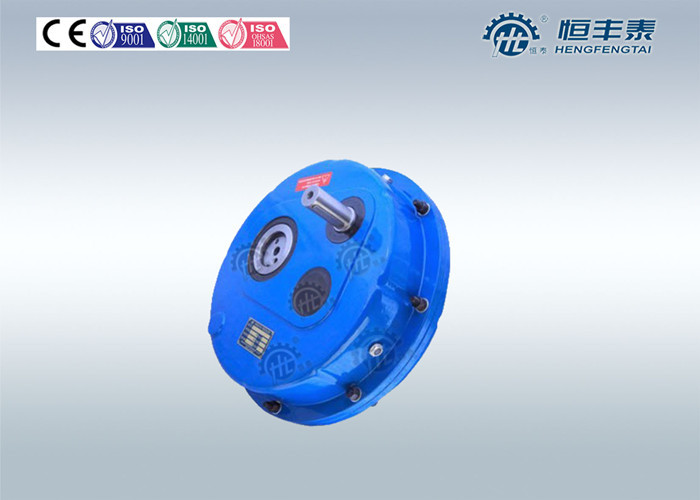

Shaft Mounted Helical Gear Reducer Box , Worm Gear Speed Reducer 0

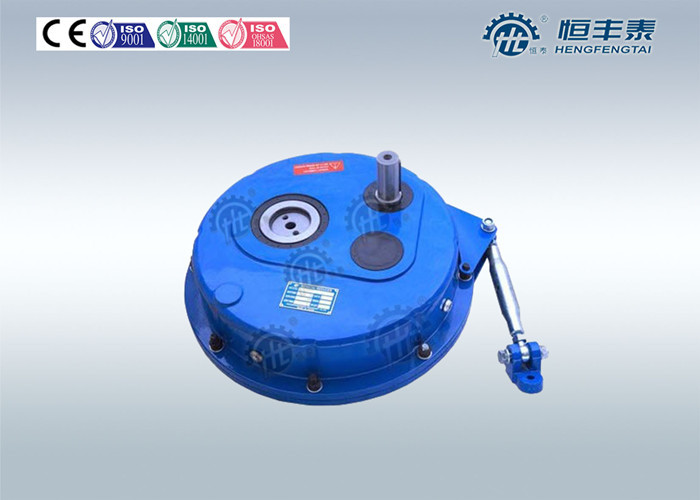

Shaft Mounted Helical Gear Reducer Box , Worm Gear Speed Reducer 1
