High torque belt conveyor used Shaft Mounted Speed Reducer Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG35~HXG125 |
| Minimum Order Quantity | 2 PIECES |
| Price | USD150-USD2000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 PCS PER MONTH |
Product Details
| Material | 20CrMnTi, 40CrMnTi | Models | HXG35,HXG40,HXG45,HXG50,HXG60,HXG70,HXG80,HXG100,HXG125 |
|---|---|---|---|
| Ratio | 5~30 | Power | 1.1~160 KW |
| Shaft Diameter | 35~135 Mm | Input Speed | 500~1800 Rpm |
| High Light | helical speed reducer,inline helical gearbox |
||
Product Description

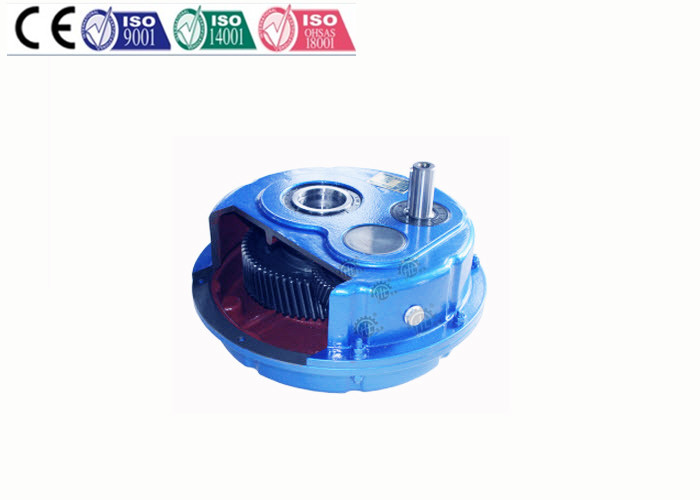

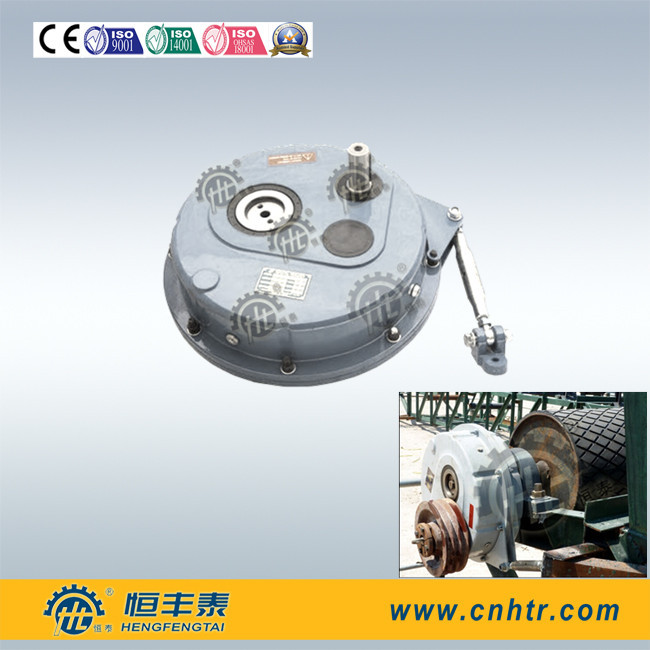

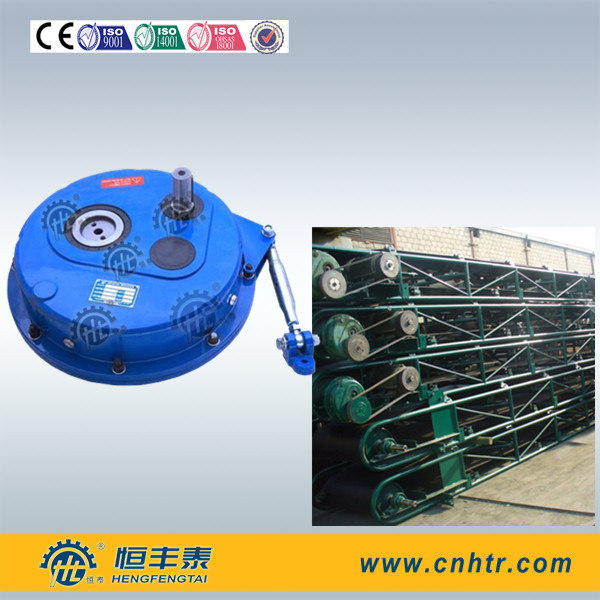

High torque belt conveyor used Shaft Mounted Speed Reducer Gearbox
Quick Details:
Gearing Arrangement: Helical
Output Torque: 180Nm-17000 N.m
Rated Power: 0.92-226 KW
Input Speed:500-1400 rpm
Output Speed: 15.1-280RPM
Model Number: HXG30-HXG125
Ratio: 5-31
Mounting position: Shaft mounted
Material for box: cast iron
Packing: Strong wooden cases for exporting
Output shaft: Hollow output shaft
Accessories: Backstop, Torque arm, etc
Output shaft diameter: 35-135MM
Descriptions:
CE CERTIFICATE for HXG - TA Helical Gear Reducer is a shaft mounted gear reducer is which can be
optionally fitted with an anti-runback device except for HXG30. Our CE CERTIFICATE for HXG - TA Helical
Gear Reducer is wildly used in mechanical transmission fields such as agriculture, telecommunications
industry, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism
industry and so on.
Products benefits:
1. High efficiency
2. Small volume
3. strong capacity of being overloaded
4. Long service life
5. Anti-leaking oil
6. simple structure and convenient to be installed and maintained
Widely application
Specifications:
|
Model |
HXG30 |
HXG35 |
HXG40 |
HXG45 |
HXG50 |
HXG60 |
HXG70 |
HXG80 |
HXG100 |
HXG125 |
|
Permitted torque |
180Nm |
420Nm |
950Nm |
1400Nm |
2300Nm |
3600Nm |
5100Nm |
7000Nm |
11000Nm |
17000Nm |
|
Gear frame size |
Output shaft bore |
reductions |
Gear ratio |
Input shaft configuration |
Mounting position |
|
TA 35 |
35 |
D |
15 |
HS |
A |
|
TA 45 |
45 |
D |
15 |
HS |
A |
|
TA 45 |
55 |
D |
15 |
HS |
A |
|
TA 50 |
50 |
D |
15 |
HS |
A |
|
TA 50 |
55 |
D |
15 |
HS |
A |
|
TA 60 |
70 |
D |
15 |
HS |
A |
|
TA 70 |
85 |
D |
15 |
HS |
A |
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
