Sleeve Elastic Insert Flexible Rubber Motor Shaft Coupling
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | TL |
| Minimum Order Quantity | 10 pieces |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000pcs/month |
Product Details
| High Light | flexible shaft couplers,motor shaft couplings |
||
|---|---|---|---|
Product Description

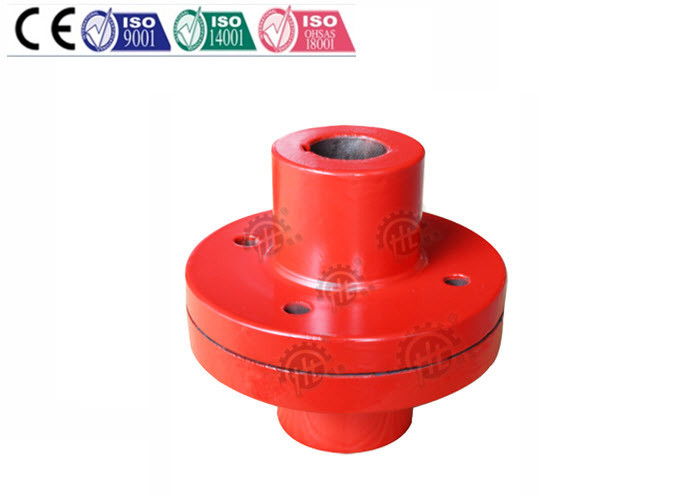

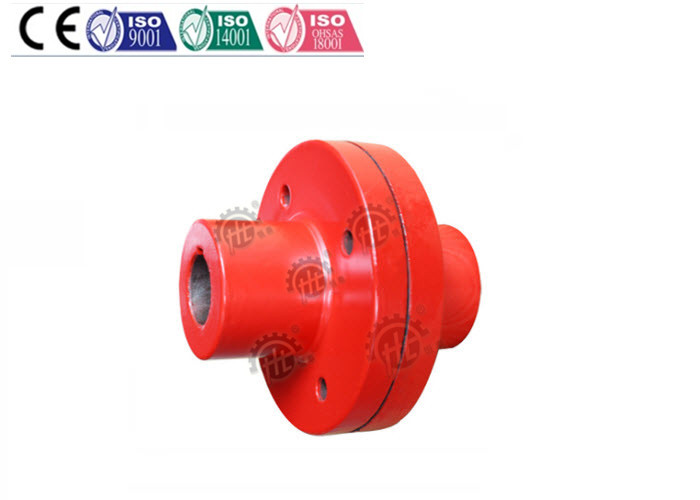

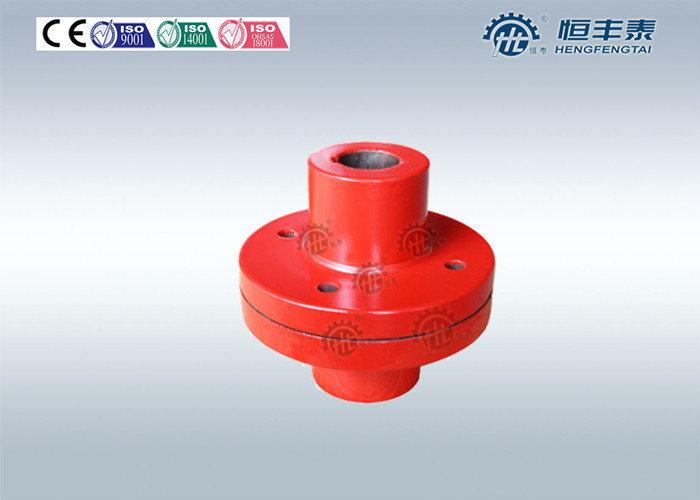

Sleeve Elastic Insert Flexible Rubber Motor Shaft Coupling
Quick details:
|
Material |
Steel or Iron |
|
Type |
Flexible |
|
Structure |
Sleeve |
|
Model No. |
TL |
|
Hole diameter range |
9~170mm |
|
Weight range |
1.16~425.8kgs |
|
Allowed torque(N.m) |
6.3~16000 |
|
Allowed turns (r/min) |
800~8800 |
Descriptions:
TL Flexible Shaft Coupling is made up of semi-shaft coupling with the same protruding claw and elastic
component. Utilizing the plum blossom elastic component put between the protruding claw and two half shaft
coupling to realize the connection of two semiaxis devices.
Specifications:
|
Signed Type |
Allowed torque N.m |
Allowed turns of Iron (r/min) |
Weight(kg) |
|
TL1 |
6.3 |
6600 |
1.16 |
|
TL2 |
16 |
5500 |
1.64 |
|
TL3 |
31.5 |
4700 |
1.9 |
|
TL4 |
63 |
4200 |
2.3 |
|
TL5 |
125 |
3600 |
8.36 |
|
TL6 |
250 |
3300 |
10.36 |
|
TL7 |
500 |
2800 |
15.6 |
|
TL8 |
710 |
2400 |
25.4 |
|
TL9 |
1000 |
2100 |
30.9 |
|
TL10 |
2000 |
1700 |
65.9 |
|
TL11 |
4000 |
1350 |
122.6 |
|
TL12 |
8000 |
1100 |
218.4 |
|
TL13 |
16000 |
800 |
425.8 |
Your benefits:
1. Small size
2. Simple structure
3. steable working
4. Low noisy
5. Convenient maintenance
6. Easy assembly
7. Excellent manufacturability
8. Light weight
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
