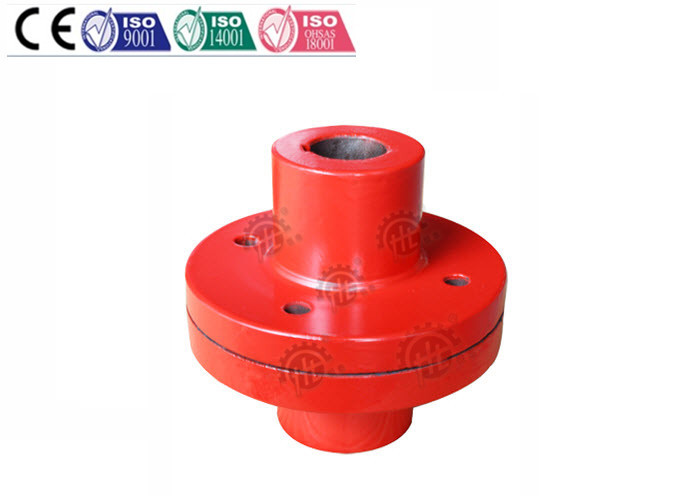

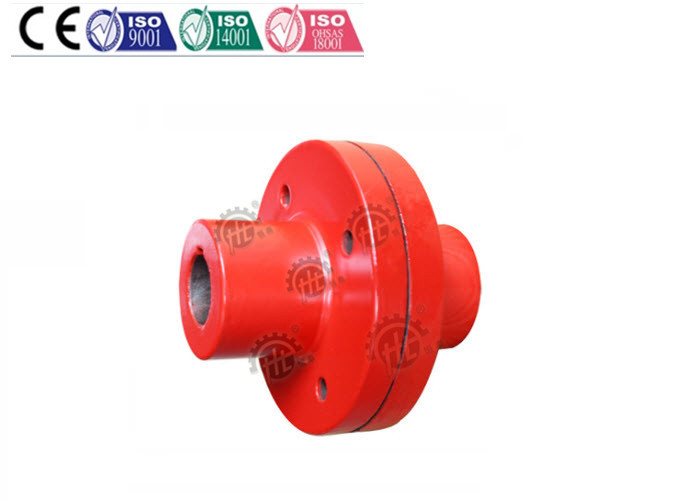

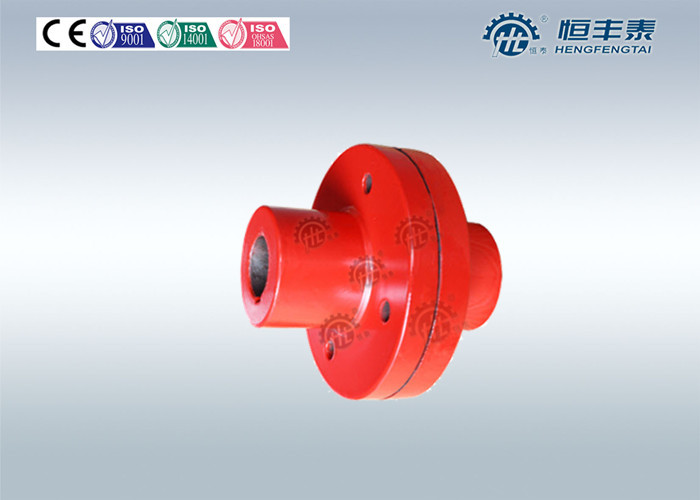

Light Weight Sleeve Pin Flexible Shaft Couplers for Semiaxis Device
Place of Origin | Wenzhou City,Zhejiang,China |
---|---|
Brand Name | HENGTAI |
Certification | CE,ISO9001:2008,ISO14001,GB28001 |
Model Number | TL |
Minimum Order Quantity | 10 pieces |
Price | DEPENDS ON REQUIREMENTS |
Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
Delivery Time | 25-35 days |
Payment Terms | T/T or LC |
Supply Ability | 2000pcs/month |
High Light | flexible shaft couplers,transmission shaft and coupling |
---|
Light Weight Sleeve Pin Flexible Shaft Couplers for Semiaxis Device
Quick details:
. Allowed torque(N.m):6.3~16000
· Hole diameter range:12~340mm
. Allowed turns:800~8800r/min
· Material:Steel or Iron
· Type: Flexible
· Model No.:TL
· Weight range:1.16~425.8kgs
Descriptions:
TL Flexible Shaft Coupling is made up of semi-shaft coupling with the same protruding claw and elastic
component. Utilizing the plum blossom elastic component put between the protruding claw and two half shaft
coupling to realize the connection of two semiaxis devices.
Specifications:
Signed Type |
Allowed torque N.m |
Allowed turns of Iron (r/min) |
Weight(kg) |
TL1 |
6.3 |
6600 |
1.16 |
TL2 |
16 |
5500 |
1.64 |
TL3 |
31.5 |
4700 |
1.9 |
TL4 |
63 |
4200 |
2.3 |
TL5 |
125 |
3600 |
8.36 |
TL6 |
250 |
3300 |
10.36 |
TL7 |
500 |
2800 |
15.6 |
TL8 |
710 |
2400 |
25.4 |
TL9 |
1000 |
2100 |
30.9 |
TL10 |
2000 |
1700 |
65.9 |
TL11 |
4000 |
1350 |
122.6 |
TL12 |
8000 |
1100 |
218.4 |
TL13 |
16000 |
800 |
425.8 |
Your benefits:
1. Small size
2. Simple structure
3. steable working
4. Low noisy
5. Convenient maintenance
6. Easy assembly
7. Excellent manufacturability
8. Light weight
