Universal Steel Transmission Shaft and Coupling Without lubrication
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | JQ |
| Minimum Order Quantity | 10 pieces |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000pcs/month |
Product Details
| High Light | motor shaft couplings,transmission shaft and coupling |
||
|---|---|---|---|
Product Description
Universal Steel Transmission Shaft and Coupling Without lubrication
Quick details:
|
Material |
Stainless Steel |
|
Type |
Flexible |
|
Structure |
Universal |
|
Model No. |
JQ |
|
Hole diameter range |
25~200H7 |
|
Weight range |
4.47~516kgs |
Descriptions:

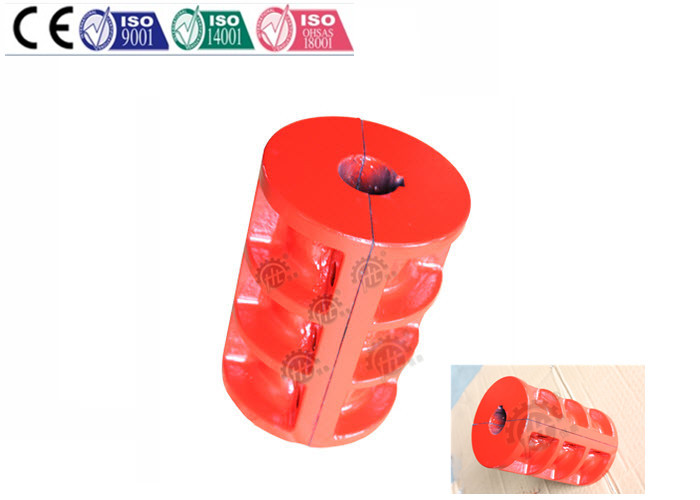

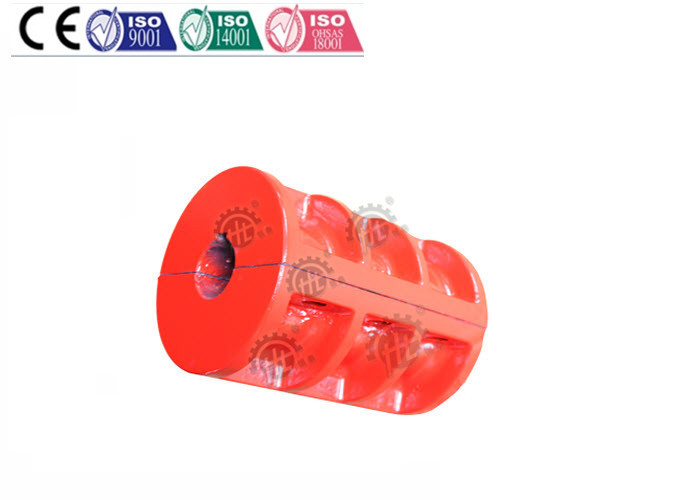

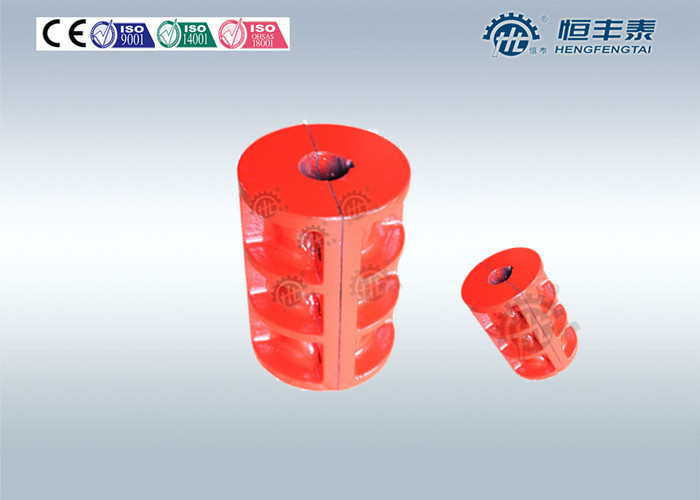

Spherical shell Flexible Shaft Coupling is the use of the axial split two spherical shell with bolt clamping for
two and a half shaft connection by two coupling surface friction transmission torque in the flat key is used
as the auxiliary connections. JQ shell case Flexible Shaft Coupling is used to connect shaft of vertical
reducer I with milled shaft retort.Choose relative JQ shaft diameter according to shaft diameter of vertical
reducer I.
Specifications:
|
Sygned symbol |
Hole diameter |
Mmax(Nm) |
Weight(kg) |
|
JQ25 |
25 |
90 |
4.47 |
|
JQ30 |
30 |
90 |
4.47 |
|
JQ35 |
35 |
236 |
7.60 |
|
JQ40 |
40 |
236 |
7.60 |
|
JQ45 |
45 |
530 |
10.85 |
|
JQ50 |
50 |
530 |
10.85 |
|
JQ55 |
55 |
530 |
10.85 |
|
JQ60 |
60 |
1400 |
25.06 |
|
JQ65 |
65 |
1400 |
25.06 |
|
JQ70 |
70 |
1400 |
25.06 |
|
JQ80 |
80 |
2650 |
30.16 |
|
JQ85 |
85 |
2650 |
30.16 |
|
JQ90 |
90 |
5200 |
56.38 |
|
JQ95 |
95 |
5200 |
56.38 |
|
JQ100 |
100 |
5200 |
56.38 |
|
JQ105 |
105 |
5200 |
56.38 |
|
JQ110 |
110 |
9000 |
90 |
|
JQ115 |
115 |
9000 |
90 |
|
JQ120 |
120 |
9000 |
90 |
|
JQ125 |
125 |
15000 |
125 |
|
JQ130 |
130 |
15000 |
125 |
|
JQ140 |
140 |
15000 |
125 |
|
JQ150 |
150 |
28000 |
215 |
|
JQ160 |
160 |
28000 |
215 |
|
JQ180 |
180 |
31000 |
350 |
|
JQ200 |
200 |
33750 |
516 |
Your benefits:
1. Better shock absorption
2. Simple structure
3. steable working
4. No noisy
5. Without lubrication
6. Convenient maintenance
7. Easy assembly
8. Excellent manufacturability
9. Low cost
