Universal Flexible Motor Industrial Mixer Blades for Coaxial Transsmission
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HL |
| Minimum Order Quantity | 10 pieces |
| Price | DEPENDS ON REQUIREMENTS |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000pcs/month |
Product Details
| High Light | motor shaft couplings,transmission shaft and coupling |
||
|---|---|---|---|
Product Description

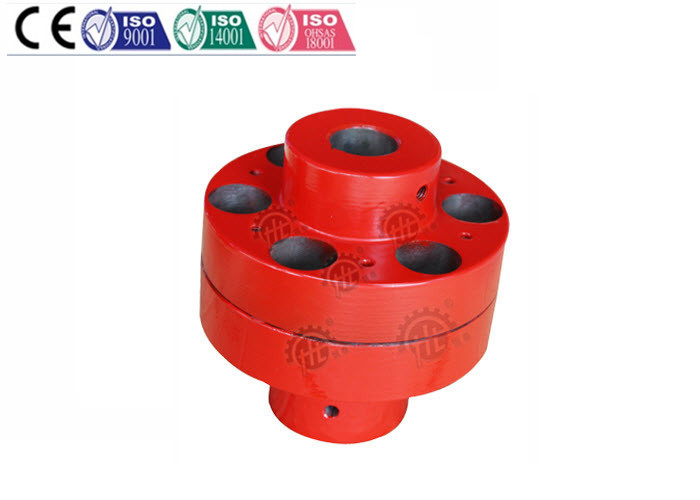

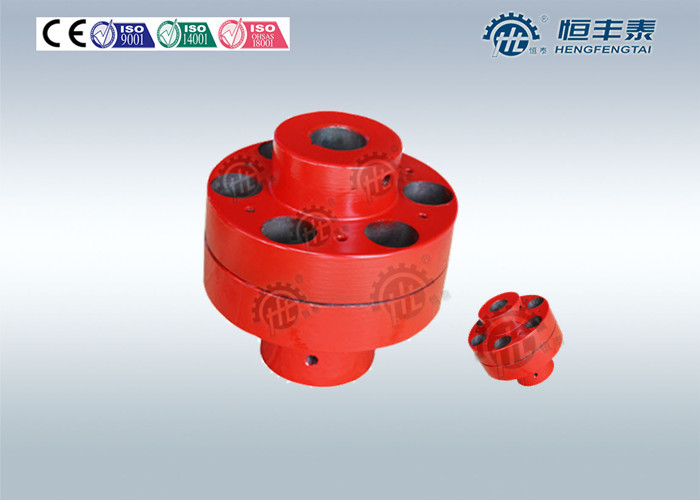

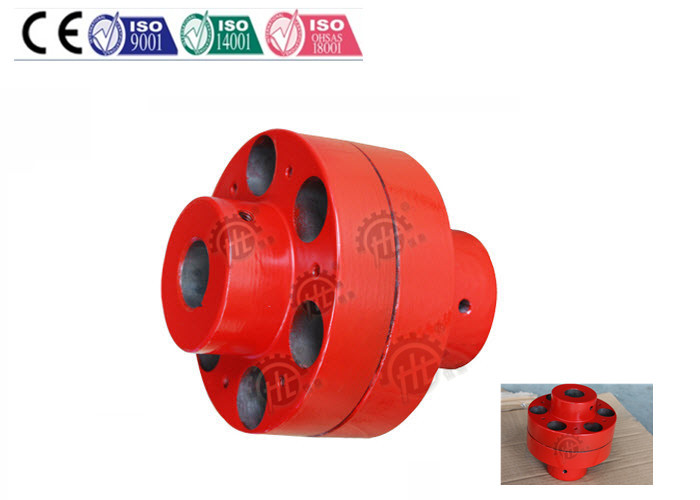

Universal Flexible Motor Shaft Coupling for Coaxial Transsmission
Quick details:
|
Hole diameter range |
12~340mm |
|
Material |
Steel or Iron |
|
Type |
Flexible |
|
Structure |
Universal |
|
Model No. |
HL |
|
Weight range |
6~1956kgs |
|
Permission shift |
850~7100r/min |
Descriptions:
HL flexible shaft coupling is totally following up to GB / T 4323-2002 standard, used for connection of two
coaxial transsmission shaft.
The flexible shaft coupling set cover is made of synthetic rubber, polyurethane rubber, nylon and other
materials. It has a certain compensation for two-axis relative bias shift and damping properties of the
general operating.
The proper working temperature is between -20 °C ~ +70 °C, and nominal torque transmission is btween
6.31 ~ 16000N.m. It is nomally applied to the situation when rotating direction is busy change in clockwise
and anti-clockwise , the situation of variable load and start-frequent high-speed.
Specifications:
|
Sygned Type |
Allowed torque N.m |
Allowed turns(r/min) |
Weight(kg) |
|
HL1 |
160 |
7100 |
2 |
|
HL2 |
315 |
5600 |
5 |
|
HL3 |
630 |
5000 |
8 |
|
HL4 |
1250 |
4000 |
22 |
|
HL5 |
2000 |
3550 |
30 |
|
HL6 |
3150 |
2800 |
53 |
|
HL7 |
6300 |
2240 |
98 |
|
HL8 |
10000 |
2120 |
119 |
|
HL9 |
16000 |
1800 |
197 |
|
HL10 |
25000 |
1560 |
322 |
|
HL11 |
31500 |
1320 |
520 |
|
HL12 |
63000 |
1250 |
714 |
|
HL13 |
10000 |
1120 |
1057 |
|
HL14 |
10000 |
850 |
1956 |
Your benefits:
1. Better shock absorption
2. Simple structure
3. steable working
4. No noisy
5. Convenient maintenance
6. Easy assembly
7. Excellent manufacturability
8. Low cost
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
