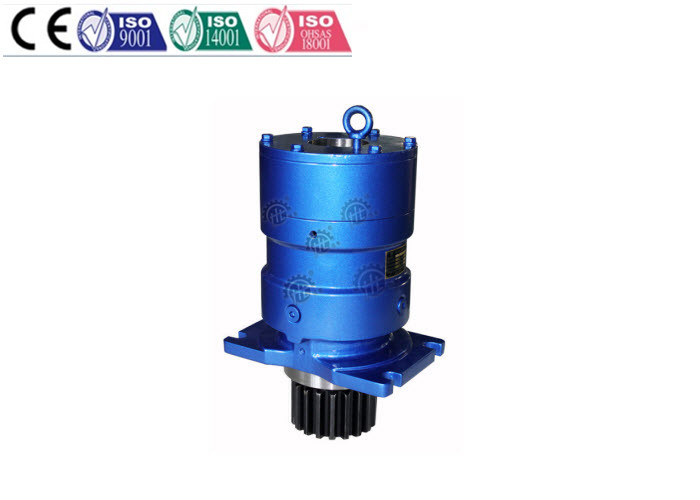

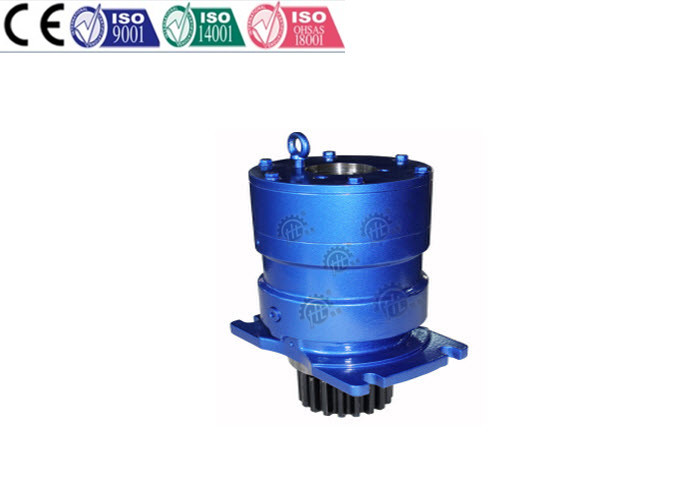

Transmission Planetary Gear Reducer / Reduction Gearbox Agitator Drive
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | NGW series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | planetary reduction gearbox,electric motor gear reducer |
||
|---|---|---|---|
Product Description
Transmission Planetary Gear Reducer / Reduction Gearbox Agitator Drive
Quick Details:
Torque range:≤354000N.m
Power range:1~3000kw
Input Speed:750,1000,1500RPM
Housing hardness:HBS190-240
Descriptions:
NGW series Planetary gear reducer is widely used in various kinds of industry transmissions such as
vessels harbor facilities, metallurgy, mine, engineering machinery etc. The product is designed according to
modern theory, which makes it simpler, smaller and more economical than traditional. There are many
forms of connection and output that can match the motors, hydraulic motors. Low speed shaft to install load
bearing,especially for applications where heavy shock loads.
Benefits:
1.several tooth drive ,high strengh and high credibility
2.the material of main parts is bearing steel
3.litter inertia adapts reducer intvertering
4.low noise high efficiency ,single stage efficiency are more than 92%.
5.input shaft and output shaft in the same axis,small volume
Applications:
-
Roller presses
-
Slewing gear drives
-
Bucket wheel drives
-
Apron conveyor drives
-
Agitator drives
Storage:
1: Pls do not store in outdoor.
2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
WARRANTY:
HFT guarantees the products sold for one year from the date of delivery.
Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained
defect of material or manufacture. The parts replaced remain our property. All other compensation is
excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack
of use of the goods purchased.
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
