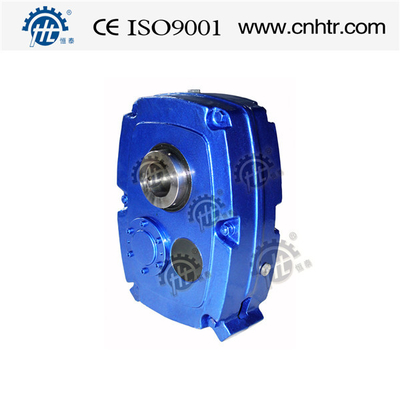

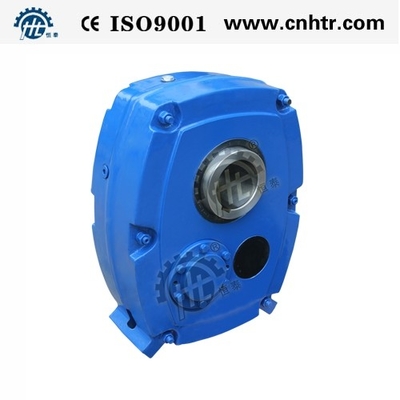

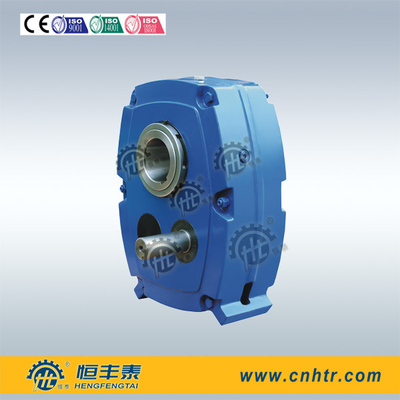

Fenner SMSR Series B,C,D,E,F,G,H,J,S Shaft Mounted Gear Reducer With Reduction 13/1 20/1 Tie Rod

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City, Zhejiang, China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number B,C,D,E,F,G,H,J,S
Minimum Order Quantity 2 PCS
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
Reduction Ratio 13/1, 20/1 Rated Torque Up To 8000Nm
Output Shaft Diameter Of Bore 30 To 120mm Bearings NSK, SKF, Etc
Finishing Smooth, Flat Color Blue, Grey
Input Shaft 19,22,25,28,32,42,48,55 Mm
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Quick Details:

Rated Power:0.29-134.2 KW



Output Torque:180Nm-17000 N.m



Model number: SMSR-C,D,E,F,G,H,J,S



Output shaft diameter:30-120mm



Ratio:5-20



Input Speed:500-1400 RPM



Output Speed:256- 7499 RPM(Na=100rpm )







Other Details:



·                                 Gearing Arrangement: Helical



·                                 Place of Origin: Zhejiang, China (Mainland)·



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc









Descriptions:





SMSR series HXGF Shaft Mounted Reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., ltd, was



wildly used in mechanical transmission fields such as agriculture, telecommunications industry, food



industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.





Our SMSR series HXGF Shaft Mounted Reducer provides a convenient installation and removal



method for speed reduction by mounting directly on the drive shaft. The HSMR series HXGF Shaft



Mounted Reducer features carburized gear teeth with optimal gear geometry and wide gear faces,



allowing maximum loading and highest efficiency torque output, for higher rating capacity in the most



compact design.







Your benefits:





Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque



Heavy duty roller bearings for maximum strength and extended life



Flexible motor mounting capabilities



Backstops with centrifugal lift-off sprags to maximize reliability





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture





Models:



Dimension(mm)

HXGF Size

B

B

D

E

F

G

H

J

Standard size of shaft

30

40

50

55

65

75

85

100

Alternative size of shaft

40

50

55

65

75

85

100

120

Input shaft keyway

6x3.5x50

6x3.5x59

8x4x63

8x4x70

10x5x70

12x5x90

14x5.5x100

16x6x100










THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution







































Fenner SMSR Series B,C,D,E,F,G,H,J,S Shaft Mounted Gear Reducer With Reduction 13/1 20/1 Tie Rod 0



Fenner SMSR Series B,C,D,E,F,G,H,J,S Shaft Mounted Gear Reducer With Reduction 13/1 20/1 Tie Rod 1
