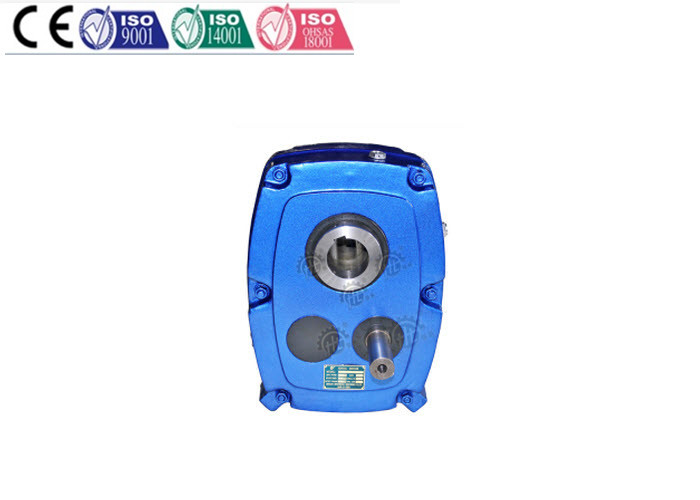

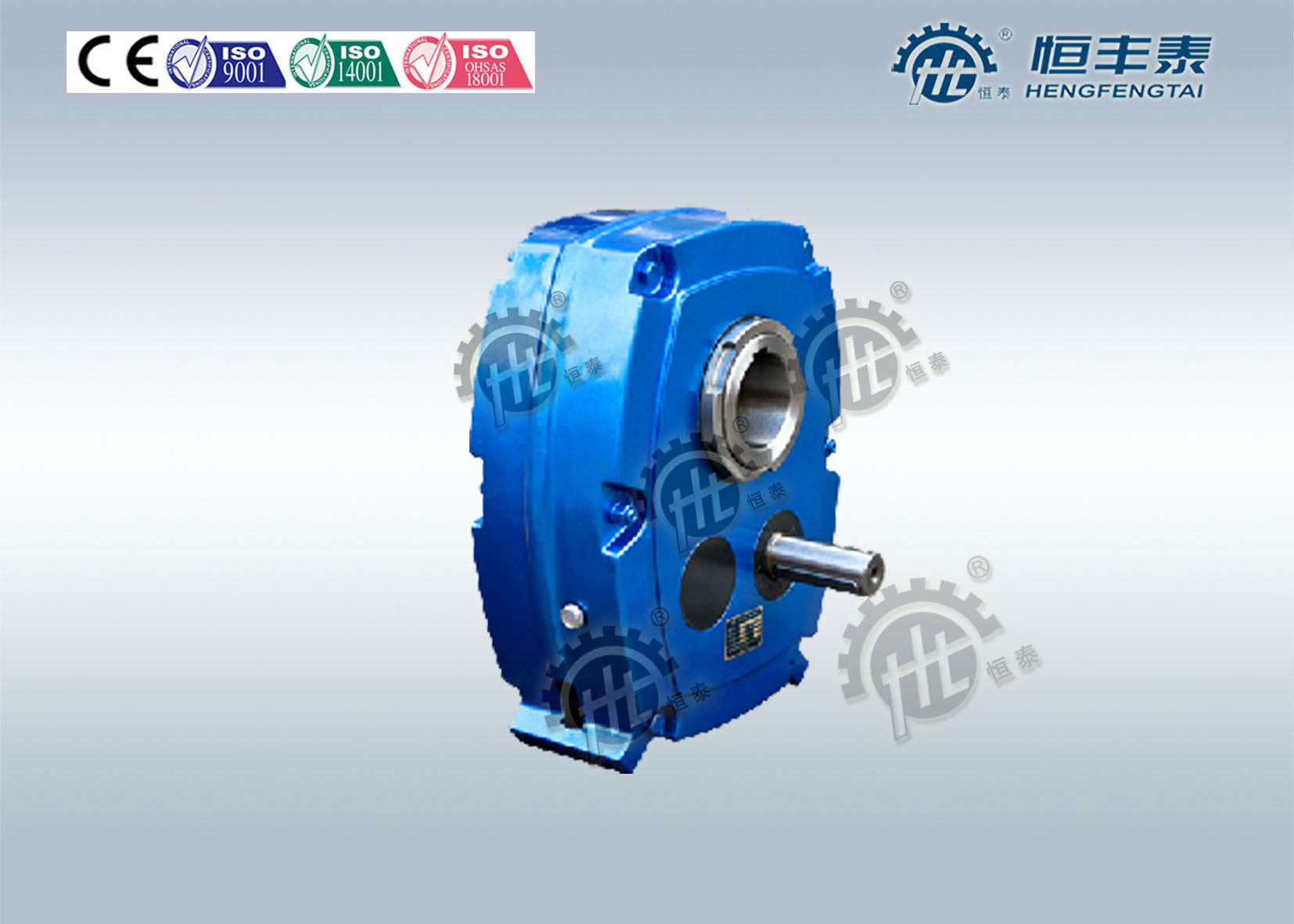

Helical Hollow Shaft Mounted Speed Reducer / helical planetary gearbox

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Helical Hollow Shaft Mounted Speed Reducer / helical planetary gearbox



Quick Details:

Hengtai Shaft Mounted Speed Reducer (SMSR) is one of the most versatile drives offering the largest ratio range and capable of powers up to 280kW.





Features

 Model in 7 sizes B,C,D,E,F,G,H with nominal gear ratios of 5:1, 13:1 and 20:1

 Extended 2 year warranty (optional).

 Mounts direct onto the driven shaft:

  • No alignment problems.
  • No shaft couplings.
  • Flexible motor mounted in a convenient position.

 No expensive adjustable base plate is required for the motor, as V-Belt
tensioning is done by the use of a torque arm which can be simply shortened or
extended to swing the shaft mounted speed reducer about its output hub to tension the 'V' -Belts.

 Quick and easy speed changing via belt drive.

 Final output speed can be very accurately obtained by adjusting the 'V' -Belt'
drive ratio.

 High efficiency by using helical gears

  • Single - 98% efficiency.
  • Double - 96% efficiency.





Permitted Torque:





Model(single/double) HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Nm(100rpm) 256 277 401 468 632 783 983 1194 1444 1881 2407 2970 3457 4380 5940

7449









Specifications:





Dimension(mm) HXGF Size
HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Standard size of shaft 30 40 50 55 65 75 85 100
Alternative size of shaft 40 50 55 65 75 85 100 120
Input shaft keyway 6x3.5x50 6x3.5x59 8x4x63 8x4x70 10x5x70 12x5x90 14x5.5x100

16x6x100





Helical Hollow Shaft Mounted Speed Reducer / helical planetary gearbox 0
