Torque Helical Gear Reducer Hollow Shaft Power Transmission Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD200-2500 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20 Days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | helical speed reducer,helical bevel gearbox |
||
|---|---|---|---|
Product Description
Torque Arm Helical Gear Reducer Hollow Shaft Power Transmission Gearbox
Quick Details:
· Gearing Arrangement: Helical
· Output Torque: 180Nm-17000 N.m
· Rated Power: 0.92-226 KW
· Input Speed: 500-1400 rpm
· Output Speed: 15.1-280RPM
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: HXG30-HXG125
· Brand Name: HENGTAI
· Color: According to customer
· Ratio: 5-31
· Mounting position: Shaft mounted
· Material for box: cast iron
· Packing: Strong wooden cases for exporting
· Output shaft: Hollow output shaft
· Accessories: Backstop, Torque arm, etc
· Output shaft diameter: 35-135MM
Descriptions:
HXG series shaft mounted speed reducer with hardened gears have large carrying capacity,smooth
transmission,light weight,low energy consumption and so on characteristics,input shaft of reducer is
connected with motor by belt pulley,output hollow shaft linked with a key.
Specifications:
|
Model Number
|
Input shaft Diameter |
Output shaft hollow bore diameters:
|
Output torque range |
Torque arm length |
Input Speed |
Reduction Ratio:
|
|
Ta35-35D
|
19mm |
30mm
|
1000Nm |
220mm |
1400rpm
900rpm
500rpm |
5:1
7:1
10:1
12.5:1
15:1
20:1
25:1
31:1
|
|
Ta40-40D
|
24mm |
40mm
|
1350Nm |
240mm |
||
|
Ta45-45D
|
28mm |
45mm
|
2050Nm |
260mm |
||
|
Ta50-50D
|
42mm |
50mm
|
2100Nm |
280mm |
||
|
Ta60-60D
|
48mm |
60mm
|
3500Nm |
300mm |
||
|
Ta70-70D
|
48mm |
70mm
|
4900Nm |
320mm |
||
|
Ta80-80D
|
55mm |
80mm
|
6600Nm |
380mm |
||
|
Ta100-100D
|
55mm |
100mm
|
10500Nm |
520mm |
||
|
Ta124-125D
|
60mm |
125mm
|
16000Nm |
560mm |
|
TA Helical parallel shaft mounted gear motor Spare Parts List
|
||||
|
1.Casing
|
11.Bearing
|
21.Hex.head screw
|
31.Spacer ring
|
41.Pin for bracket
|
|
2.Cover
|
12.Bearing
|
22.Spring washer
|
32.Spacer ring
|
42.Pin for support
|
|
3.Rubber cap
|
13.Bearing
|
23.Hexagonal nut
|
33.Support
|
43.Cotter pin
|
|
4.Output shaft
|
14.Oilseal
|
24.Hexagonal head screw
|
34.Key
|
|
|
5.Gearwheel
|
15.Oilseal
|
25.Breather plug
|
35.Support
|
|
|
6.Input shaft
|
16.Rubber cap
|
26.Level plug
|
36.Bracket
|
|
|
7.Spacer ring
|
17.Circlip
|
27.Drain plug
|
37.Torque arm
|
|
|
8.Spring washer
|
18.Key
|
28.Rubber Cap
|
38.Right tie-rod
|
|
|
9.Gasket
|
19.Key
|
29.Spacer ring
|
39.Left tie-rod
|
|
|
10.Gasket
|
20.Dowel Pin
|
30.Clutch element
|
40.Hexagonal nut
|
|
Competitive Advantage:
1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.
2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.
3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.
4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.
5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.

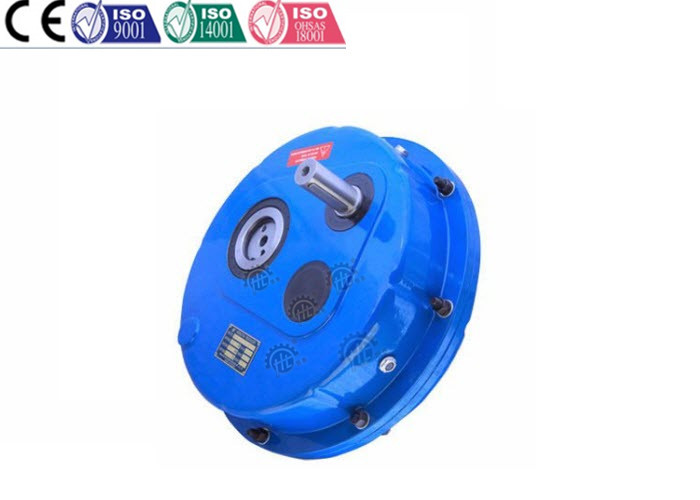

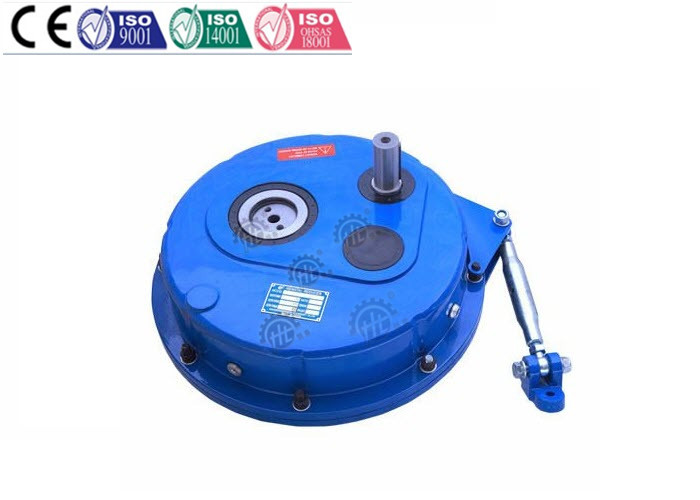

Product Images:
