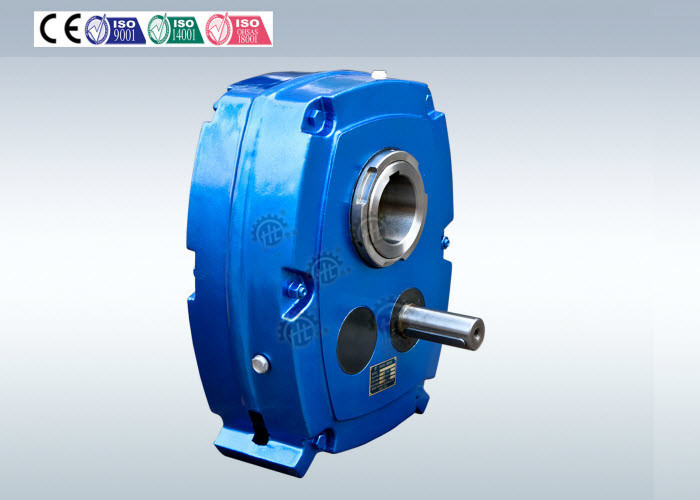

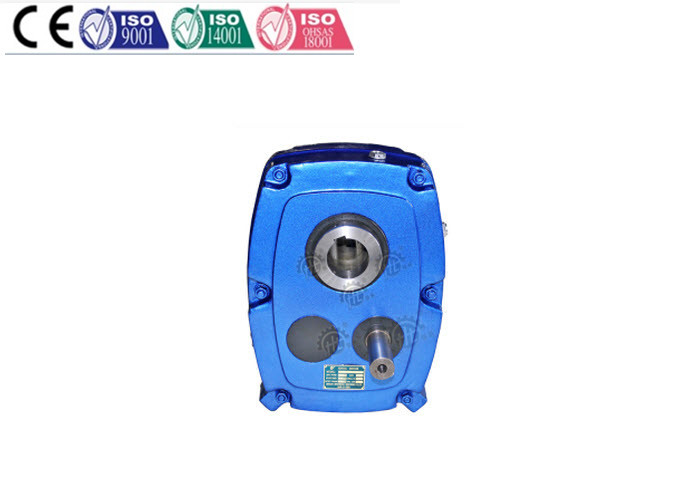

Internal Helical Metric Spur Gears , Flender Single Reduction Gearbox

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity 5 PIECES
Price USD1000-100000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 20 Days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Internal Helical Metric Spur Gears , Flender Single Reduction Gearbox





Quick Details:





·                      Ratio:5-20



Input Speed:500-1400 RPM



Output Speed:256- 7499 RPM(Na=100rpm )



Rated Power:0.29-134.2 KW



Output Torque:180Nm-17000 N.m



Model number:HXGF30 - HXGF100



Output shaft diameter:30-120mm







Descriptions:



SMSR series HXGF Shaft Mounted Reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., ltd, was



wildly used in mechanical transmission fields such as agriculture, telecommunications industry, food



industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so



on.







Your benefits:



Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque



Heavy duty roller bearings for maximum strength and extended life



Flexible motor mounting capabilities



Backstops with centrifugal lift-off sprags to maximize reliability







WARRANTY:



HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.





Applications:





Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture





Specifications:



Dimension(mm)

HXGF Size

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Standard size of shaft

30

40

50

55

65

75

85

100

Alternative size of shaft

40

50

55

65

75

85

100

120

Input shaft keyway

6x3.5x50

6x3.5x59

8x4x63

8x4x70

10x5x70

12x5x90

14x5.5x100

16x6x100







Permitted Torque:



Model(single/double)

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Nm(100rpm)

256

277

401

468

632

783

983

1194

1444

1881

2407

2970

3457

4380

5940

7449





THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution







































Internal Helical Metric Spur Gears , Flender Single Reduction Gearbox 0Internal Helical Metric Spur Gears , Flender Single Reduction Gearbox 1
