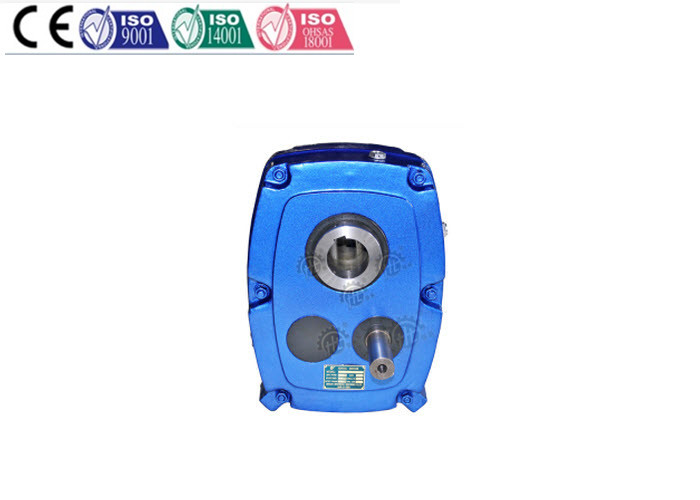

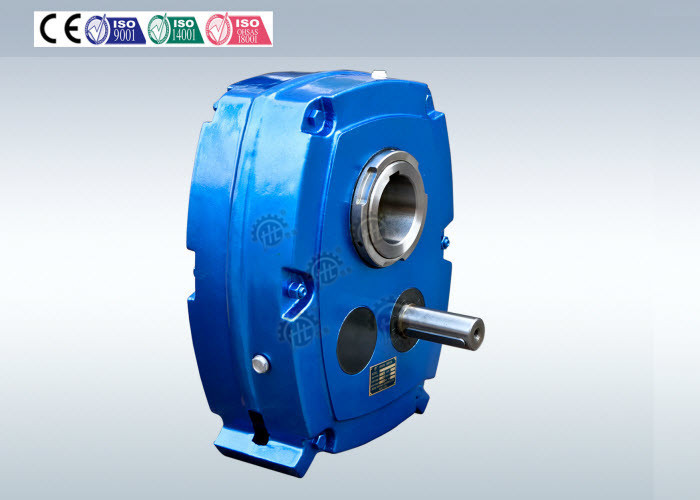

Small Helical Gear Reducer Conveyor Motor gearbox 15 Kw Power Transmission

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF75
Minimum Order Quantity 5 PIECES
Price USD120.00~USD1000.00
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25 days
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
Material HT250, 20CrMnTi, 40CrMnTi Hardened Gears Yes
Application Belt Conveyor Gearbox Ratio 5~30
Used Power 1.1~55 KW Used Speed 960~1800 Rpm
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Small Helical Gear Reducer Conveyor Motor gearbox 15 Kw Power Transmission





Descriptions:



Model in 7 sizes B,C,D,E,F,G,H with nominal gear ratios of 5:1, 13:1 and 20:1

  Extended 2 year warranty (optional).

  Mounts direct onto the driven shaft:

  • No alignment problems.
  • No shaft couplings.
  • Flexible motor mounted in a convenient position.

  No expensive adjustable base plate is required for the motor, as V-Belt
    tensioning is done by the use of a torque arm which can be simply shortened or
    extended to swing the shaft mounted speed reducer about its output hub to tension the 'V' -Belts.

  Quick and easy speed changing via belt drive.

  Final output speed can be very accurately obtained by adjusting the 'V' -Belt'
    drive ratio.

  High efficiency by using helical gears





Quick Details:



Rated Power:0.29-134.2 KW



Output Torque:180Nm-17000 N.m



Model number:HXGF30 - HXGF100



Output shaft diameter:30-120mm



Ratio:5-20



Input Speed:500-1400 RPM



Output Speed:256- 7499 RPM(Na=100rpm )







Other Details:



·                                 Gearing Arrangement: Helical



·                                 Place of Origin: Zhejiang, China (Mainland)·



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc









Your benefits:

  • Single - 98% efficiency.
  • Double - 96% efficiency.

  Anti-run back device can easily be fitted on site.

  Double lip type oil seals used throughout in shaft mounted gearbox.

  Shaft Mount Gear boxes can be mounted in any position.

  Proven history of success in all industrial applications; particularly, conveyors & elevators in the construction industry.

  Long established and proven drive system.

  Wide range of variation available:

  • Shaft mount, face mount, foot mount, motor mount, hydraulic input, screw conveyor adaptor.

  Shaft Mounted Speed Reducers (SMSR) are ultra compact when compared to other designs.


SMSR Video Presentation to illustrate internal assembly of gear, shaft, bearings, oil seals, oil level indicator of  Hengtai SMSR Gearboxes.




Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.





Applications:



Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture





Specifications:



Dimension(mm)

HXGF Size

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Standard size of shaft

30

40

50

55

65

75

85

100

Alternative size of shaft

40

50

55

65

75

85

100

120

Input shaft keyway

6x3.5x50

6x3.5x59

8x4x63

8x4x70

10x5x70

12x5x90

14x5.5x100

16x6x100







Permitted Torque:



Model(single/double)

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Nm(100rpm)

256

277

401

468

632

783

983

1194

1444

1881

2407

2970

3457

4380

5940

7449





Small Helical Gear Reducer Conveyor Motor gearbox 15 Kw Power Transmission 0
