Bonfiglioli TA Shaft Mounted Speed Reducer Helical Gear Boxes

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number TA35，TA40，TA45，TA50，TA60，TA70，TA80,TA100,TA125
Minimum Order Quantity 1 PIECES
Price USD150-USD1800
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 15 days
Payment Terms T/T or LC
Supply Ability 3000 PCS PER MONTH
Product Details
Replace Brand Bonfiglioli TA Original Zhejiang, China
Material HT250, 20CrMnTi, 45# Steel Ratio 5~30
Used Power 1.1~160 KW Used Torque 180~17000 N.m
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

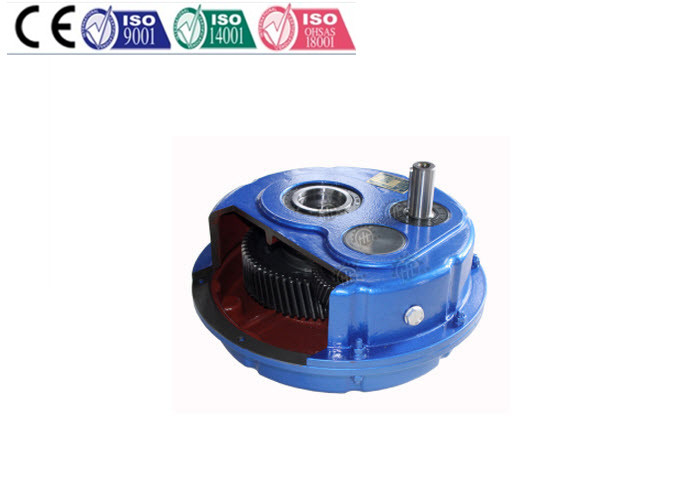

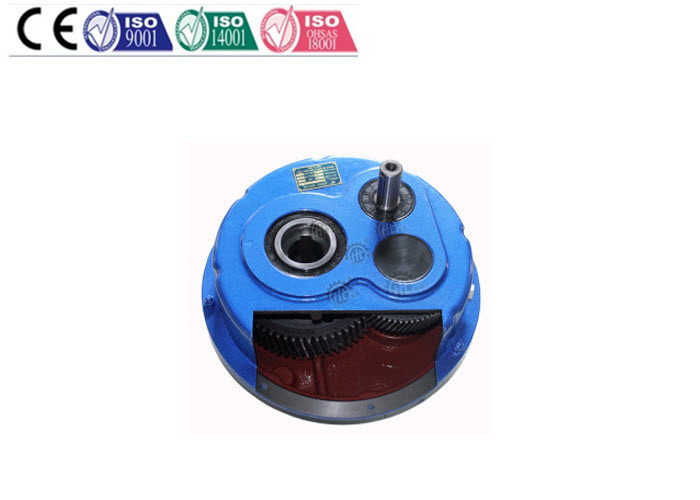

Bonfiglioli TA Shaft Mounted Speed Reducer Helical Gear Boxes





Bonfiglioli TA series similar shaft mounted speed Reducer is which can be optionally fitted with an



anti-runback device except for TA30.





Datas:



·                                 Gearing Arrangement: Helical



·                                 Output Torque: 180Nm-17000 N.m



·                                 Rated Power: 0.92-226 KW



·                                 Input Speed:500-1400 rpm



·                                 Output Speed: 15.1-280RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: TA30-TA125



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 5-31



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc



·                                 Output shaft diameter: 35-135MM





Descriptions:



Our Bonfiglioli TA series Helical Gear Reducer is wildly used in mechanical



transmission fields such as agriculture, telecommunications industry, food industry, tobacco industry,



automotive industry, cement industry, mining industry, tourism industry and so on.







Model details:

Model Standard bore (mm) Rated power(KW) Rated torque(N.m)
HXG35 35 5.5 420
HXG40 40; 45 15 950
HXG45 45; 50; 55 22.5 1400
HXG50 50; 55; 60 37 2300
HXG60 60; 65; 70 55 3600
HXG70 70; 85; 78 5100
HXG80 80; 100 110 7000
HXG100 100; 120 160 11000
HXG125 125; 135 200 17000





Products benefits:



1.     High efficiency



2.     Small volume



3.     strong capacity of being overloaded



4.     Long service life



5.     Anti-leaking oil



6.     simple structure and convenient to be installed and maintained



              widely application





Competitive Advantage:



      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi

      Industry Zone,  covering area 50000 square meters and 350 staff so far.



2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more

than 40 professional technical engineers. We had 49 items patents including 7 items of invention

patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process

selling network. Relying on high quality products and perfect service, our products have been

successfully applied by more than 5000 customers.





Product and application:

Bonfiglioli TA Shaft Mounted Speed Reducer Helical Gear Boxes 0



Bonfiglioli TA Shaft Mounted Speed Reducer Helical Gear Boxes 1



Bonfiglioli TA Shaft Mounted Speed Reducer Helical Gear Boxes 2
