Helical Gear Reduction Box Speed Reducer Shaft Mounted Bonfiglioli TA Series
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD200-2500 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20 Days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | inline helical gearbox,helical bevel gearbox |
||
|---|---|---|---|
Product Description

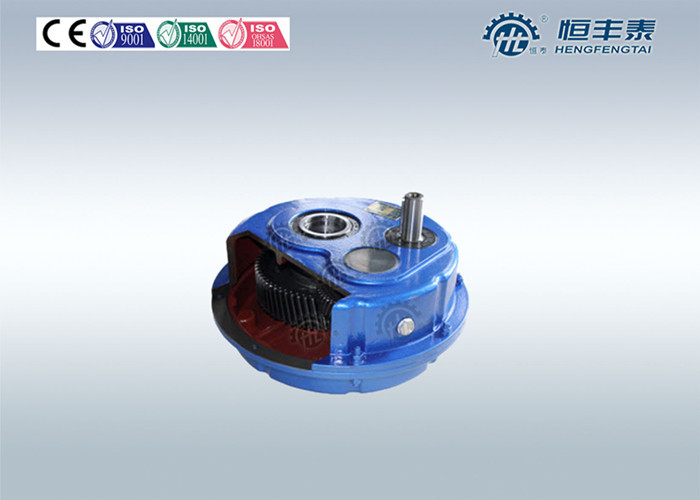

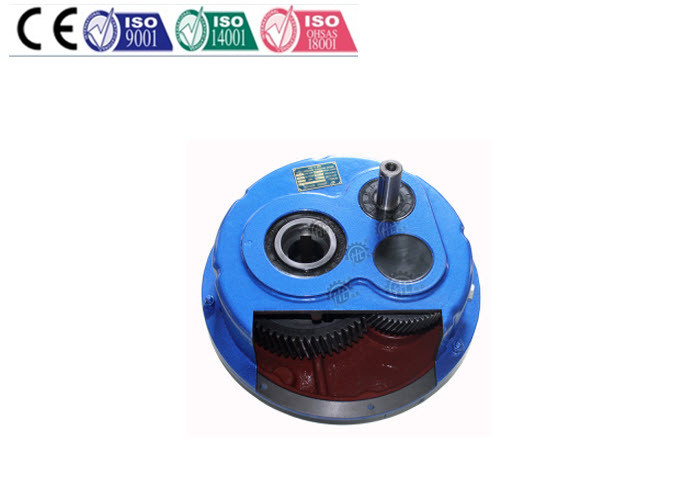

Helical Gear Reduction Box Speed Reducer Shaft Mounted Bonfiglioli TA Series
Quick Details:
Bonfiglioli TA series similar shaft mounted speed Reducer is which can be optionally fitted with an
anti-runback device except for HXG30.
Datas:
· Gearing Arrangement: Helical
· Output Torque: 180Nm-17000 N.m
· Rated Power: 0.92-226 KW
· Input Speed:500-1400 rpm
· Output Speed: 15.1-280RPM
· Place of Origin: Zhejiang, China (Mainland)
· Model Number: HXG30-HXG125
· Brand Name: HENGTAI
· Ratio: 5-31
· Mounting position: Shaft mounted
· Material for box: cast iron
· Packing: Strong wooden cases for exporting
· Output shaft: Hollow output shaft
· Accessories: Backstop, Torque arm, etc
· Output shaft diameter: 35-135MM
|
45-45 |
20 |
|
45-50 |
20 |
|
45-55 |
10 |
|
50-50 |
20 |
|
50-55 |
20 |
|
50-60 |
10 |
|
60-60A W/ BACK STOP |
20 |
|
60-70A W/ BACK STOP |
20 |
|
70-70A W/ BACK STOP |
20 |
|
70-80A W/ BACK STOP |
20 |
|
80-80A W/ BACK STOP |
20 |
|
100-100A W/ BACK STOP |
|
Descriptions:
Our Bonfiglioli TA series Helical Gear Reducer is wildly used in mechanical
transmission fields such as agriculture, telecommunications industry, food industry, tobacco industry,
automotive industry, cement industry, mining industry, tourism industry and so on.
Specifications:
|
Model |
HXG30 |
HXG35 |
HXG40 |
HXG45 |
HXG50 |
HXG60 |
HXG70 |
HXG80 |
HXG100 |
HXG125 |
|
Permitted torque |
180Nm |
420Nm |
950Nm |
1400Nm |
2300Nm |
3600Nm |
5100Nm |
7000Nm |
11000Nm |
17000Nm
|
|
Model Number
|
Input shaft Diameter |
Output shaft hollow bore diameters:
|
Output torque range |
Torque arm length |
Input Speed |
Reduction Ratio:
|
|
Ta35-35D
|
19mm |
30mm
|
1000Nm |
220mm |
1400rpm
900rpm
500rpm |
5:1
7:1
10:1
12.5:1
15:1
20:1
25:1
31:1
|
|
Ta40-40D
|
24mm |
40mm
|
1350Nm |
240mm |
||
|
Ta45-45D
|
28mm |
45mm
|
2050Nm |
260mm |
||
|
Ta50-50D
|
42mm |
50mm
|
2100Nm |
280mm |
||
|
Ta60-60D
|
48mm |
60mm
|
3500Nm |
300mm |
||
|
Ta70-70D
|
48mm |
70mm
|
4900Nm |
320mm |
||
|
Ta80-80D
|
55mm |
80mm
|
6600Nm |
380mm |
||
|
Ta100-100D
|
55mm |
100mm
|
10500Nm |
520mm |
||
|
Ta124-125D
|
60mm |
125mm
|
16000Nm |
560mm |
Products benefits:
1. High efficiency
2. Small volume
3. strong capacity of being overloaded
4. Long service life
5. Anti-leaking oil
6. simple structure and convenient to be installed and maintained
widely application
