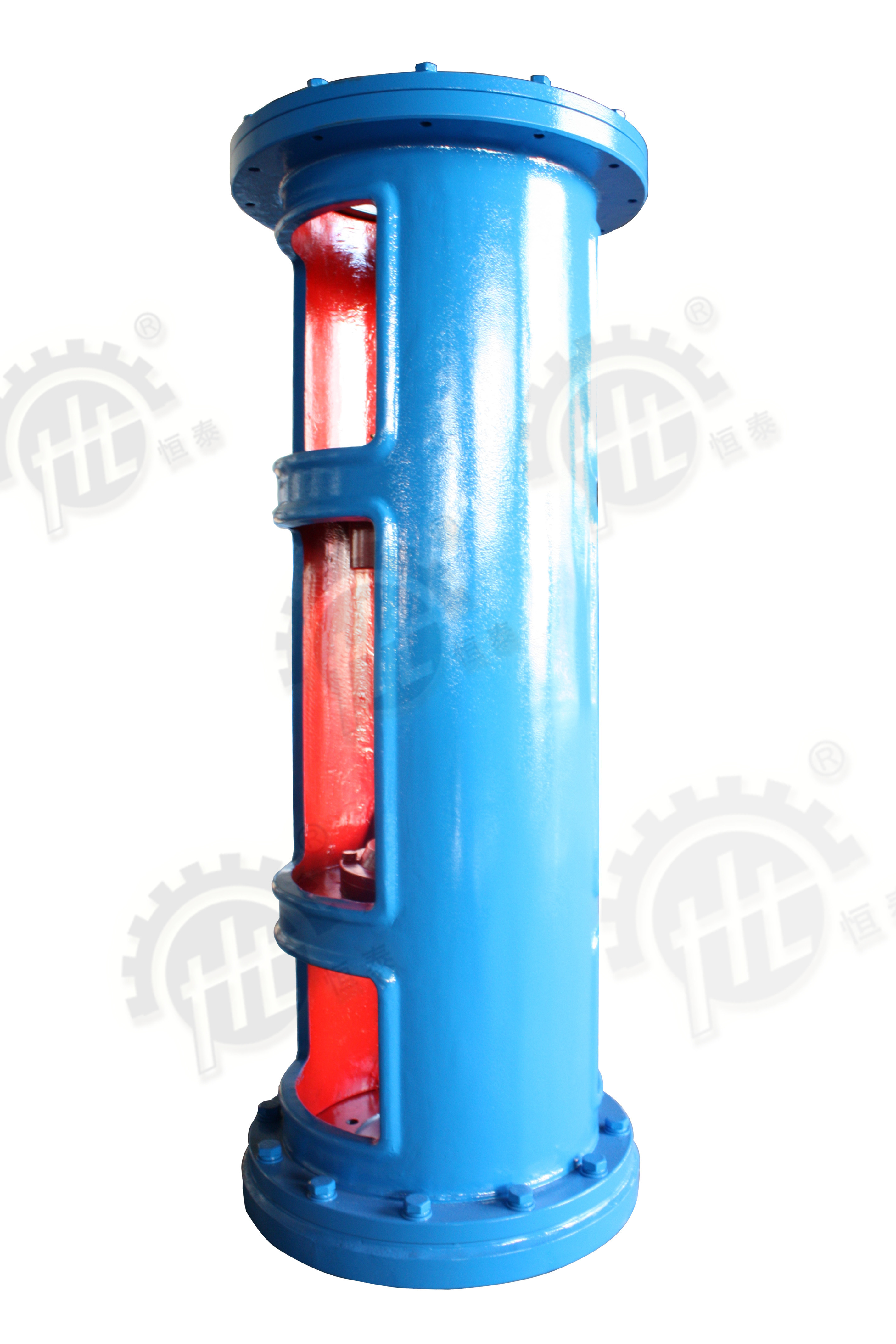

Cast Iron Industrial Mixer Blades Vertical Flange Tilt Mounted

Quick Detail:

• Place of Origin: Zhejiang, China (Mainland)

• Model Number: SJ

• Brand Name: HENGTAI

• Color: According to customer

• Mounting position: vertical flange mounted or tilt mounted

• Material for box: cast iron

• Packing: Strong exporting wooden case and pallets

Descriptions:

SJ series gearbox frame supports the output at lower part of frame. No shaft seal is available inside frame.

The reducer output shaft and the mixing shaft is connected by GT rigid flange shaft coupling. SJ series

gearbox frame increases the distance between mixing shaft and base frame while shortening the length of

cantilever section, which improves capacity of shaft stiffness and vibration. It is normally adopted in

atmospheric and open-container mixing system.

Specifications:

Storage:

1. Pls do not store in outdoor.

2. Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly

touch the floor.

WARRANTY:

1. HFT guarantees the products sold for one year from the date of delivery.

2. Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

Applications:

This series of mechanical can be matched with all kinds of vertical cycloid reducers and LC, DC gear

reducers, also chose all kinds of shaft coupling types. The series can be divided into WJ(ⅠANDⅡ), DJ

andSJ, and the three kinds of mechanical frames respectively are without bearing, single bearing and

double bearings. Installed different types gusset plate, in definite range, the same mechanical frame can

bematched with reducer of different type(gear and cycloid) and diameter of out view shaft. Size of gusset

plateand shaft coupling is adjusted and provided by our factory.

Competetive Advantage:

1.   Through years of development, Zhejiang Hengfengtai Reducer Mfg Co., Ltd is based on a solid

material foundation and has possessed conditions towards the world.

It was found in 1991 which headquarter located in Wenzhou City. Total registered capital in RMB

58,000,000.We had 3 sub companies located in Binghai& Sanxi Industry Zone, covering area 50000

square meters and 350 staff so far.

2.   As the leader in gear reducer domestically, we are committed to R&D all the time.

There are more than 40 professional technical engineers. And we hired several domestic famous expert

and professor as research consultant. Meanwhile we had broad cooperation with Harbin Industrial

University, Guiyang Aluminum Magnesium college and Changsha Nonferrous metals college. We

had 49 items patents including 7 items of invention patent, 30 items of utility models, 1 item of appearance

design, 2 items of international invention patent and 5 items which are accepted by National SIPO wait for

approval.

3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process

selling network.

There are thousands of competitive companies which have built stable strategic partnership to us.

Besides, tens of branches and offices in china and abroad can response to customer’s demand and

provide solutions immediately. Relying on high quality products and perfect service, our products have

been successfully applied by more than 5000 customers. Based on the all above, our products have been

exporting to Asia, Europe, Africa and more than 30 countries and areas , which are very popular in those

markets.
