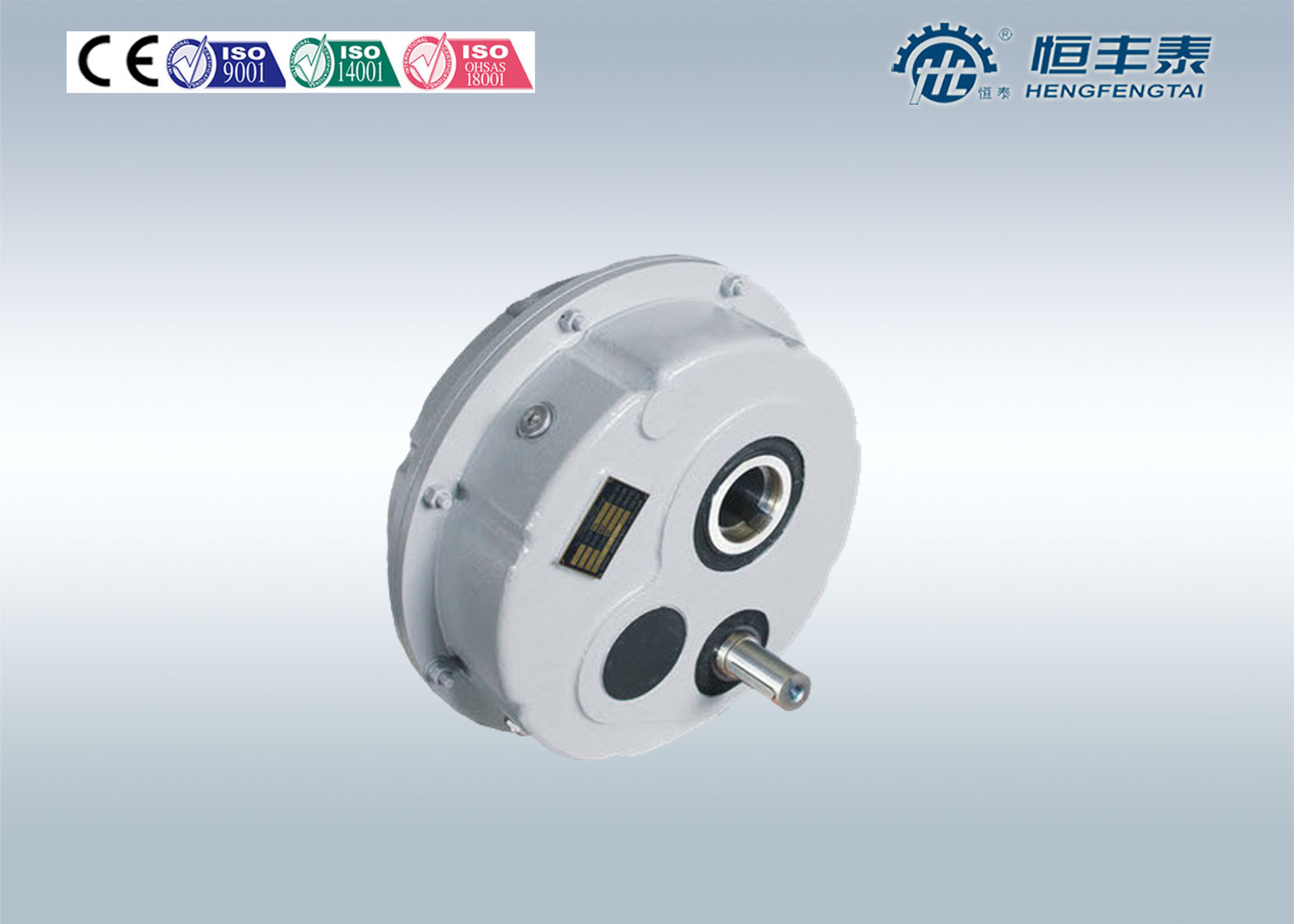

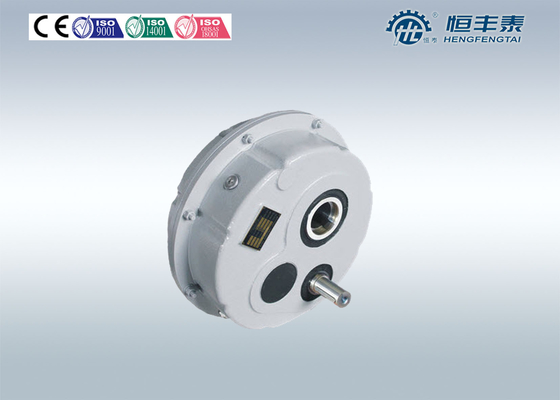

Helical SMSR Gearbox Speed Reducer For Conveyor Belt

Quick Details:



·                                 Gearing Arrangement: Helical



·                                 Output Torque: 180Nm-17000 N.m



·                                 Rated Power: 0.92-226 KW



·                                 Input Speed:500-1400 rpm



·                                 Output Speed: 15.1-280RPM



·                                 Place of Origin: Zhejiang, China (Mainland)



·                                 Model Number: HXG30-HXG125



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Ratio: 5-31



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron

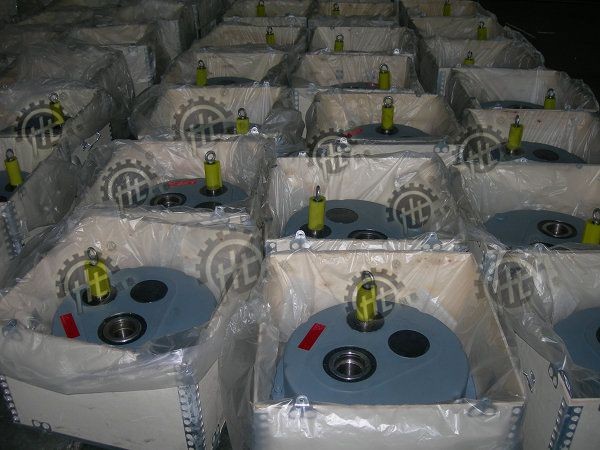

·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc



·                                 Output shaft diameter: 35-135MM







Descriptions:





HXG-TA Shaft Mounted Speed Reducer is a shaft mounted gear reducer is which can be optionally



fitted with an anti-runback device except for HXG30. Our HXG-TA Shaft Mounted Speed Reducer is wildly



used in mechanical transmission fields such as agriculture, telecommunications industry, food industry,



tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.









Products benefits:



1.     High efficiency



2.     Small volume



3.     strong capacity of being overloaded



4.     Long service life



5.     Anti-leaking oil



6.     simple structure and convenient to be installed and maintained



              Widely application







Storage:





1: Pls do not store in outdoor.



2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



   touch the floor.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Mechanical transmission fields





Specifications:



Model	HXG30	HXG35	HXG40	HXG45	HXG50	HXG60	HXG70	HXG80	HXG100	HXG125
Permitted torque	180Nm	420Nm	950Nm	1400Nm	2300Nm	3600Nm	5100Nm	7000Nm	11000Nm	17000Nm









THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution















































Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.
