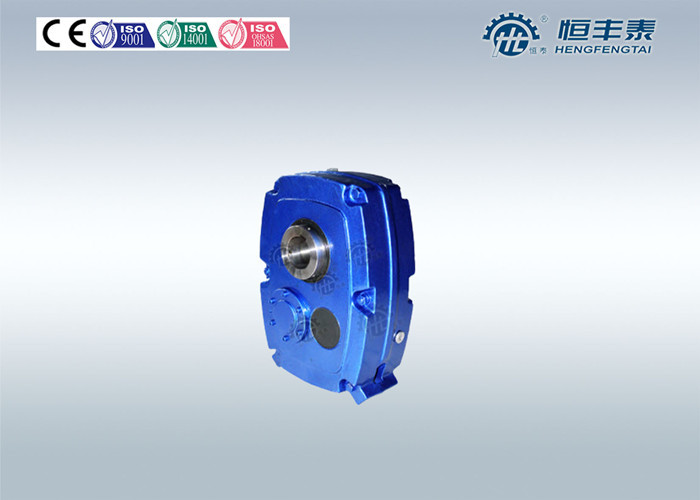

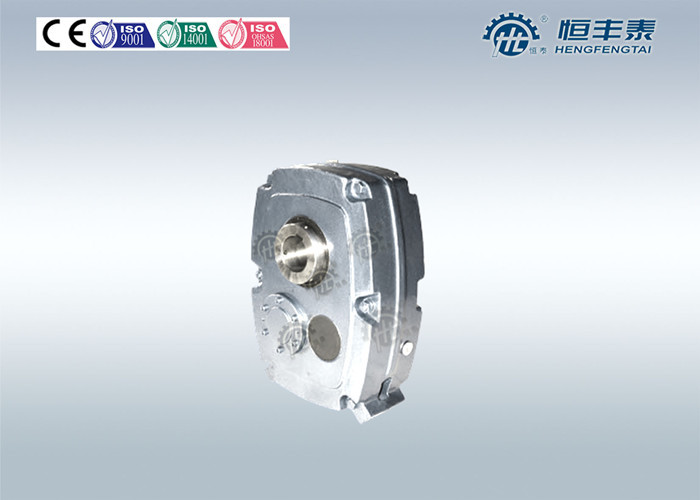

Helical Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox

Helical Shaft Mounted Speed Reducer Parallel Shaft Helical Gearbox



Quick Details:



·

Model Number	HXGF30-HXG100
Output shaft diameter	30-120MM
Ratio	5-20
Input Speed	500-1400 RPM
Output Speed	256- 7499 RPM(Na=100rpm )
Rated Power	0.29-134.2 KW
Output Torque	180Nm-17000 N.m
Other Details:   ·                                 Gearing Arrangement: Helical   ·                                 Place of Origin: Zhejiang, China (Mainland)·                                  ·                                 Brand Name: HENGTAI   ·                                 Color: According to customer   ·                                 Mounting position: Shaft mounted   ·                                 Material for box: cast iron   ·                                 Packing: Strong wooden cases for exporting   ·                                 Output shaft: Hollow output shaft   ·                                 Accessories: Backstop, Torque arm, etc

Descriptions:





SMSR series HXGF Shaft Mounted Reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., ltd, was



wildly used in mechanical transmission fields such as agriculture, telecommunications industry, food



industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so



on.





Our SMSR series HXGF Shaft Mounted Reducer provides a convenient installation and removal



method for speed reduction by mounting directly on the drive shaft. The HSMR series HXGF Shaft Mounted



 Reducer features carburized gear teeth with optimal gear geometry and wide gear faces,



allowing maximum loading and highest efficiency torque output, for higher rating capacity in the most



compact design.









Your benefits:





Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque



Heavy duty roller bearings for maximum strength and extended life



Flexible motor mounting capabilities



Backstops with centrifugal lift-off sprags to maximize reliability







Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture









Specifications:









Permitted Torque:





Model(single/double)	HXGF30		HXGF40		HXGF50		HXGF55		HXGF65		HXGF75		HXGF85		HXGF100
Nm(100rpm)	256	277	401	468	632	783	983	1194	1444	1881	2407	2970	3457	4380	5940	7449







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution















































Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.
