Shaft Mounted Helical Gear Reducer For Industrial Planetary
| Place of Origin | Wenhou city ,Zhejiang ,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | H.B |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | IT DEPENDS ON YOUR QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | inline helical gearbox,helical bevel gearbox |
||
|---|---|---|---|
Product Description

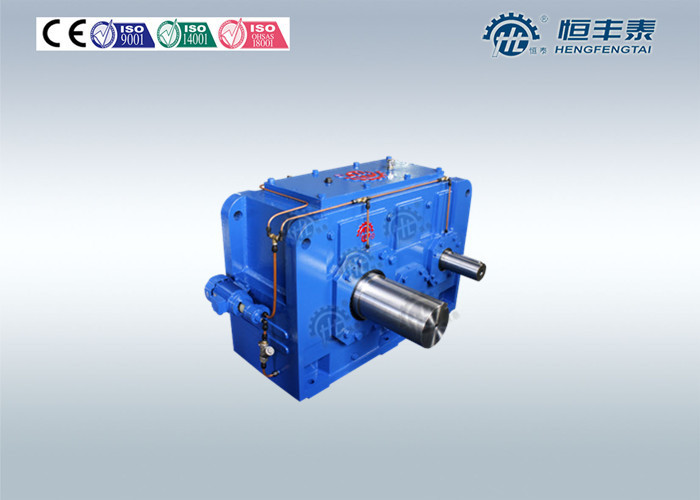

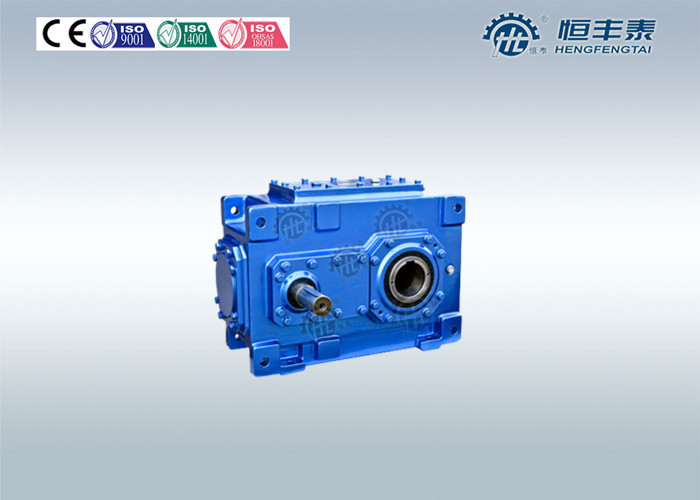

Shaft Mounted Helical Gear Reducer For Industrial Planetary
Quick Details:
-
Gearing Arrangement:
Helical
Output Torque:
450000 N.m
Rated Power:
1.1-5100KW
Input Speed:
750-1500 rpm
Output Speed:
1.67-1200RPM
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
H1SH3-H4SH26
Brand Name:
HENGTAI
Color:
According to customer
Ratio:
1.25-450
Mounting position:
foot mounted
Material for box:
cast iron
Packing:
Strong wooden cases for exporting
Output shaft:
Solid or hollow output shaft
Accessories:
cooling system, lubrication system
Output shaft diameter:
30-420MM
Other name:
Helical gear reducer applied for conveyor
parallel shaft mounted gear box
Progressive ratio helical shaft gear reducer
Description:
H.H series high power helical gear reducer, similar to Flender H.B gearbox, big power and torque.
Our H.H series high power helical gear reducer is widely used in Mining, smelting machine as power
transmission.
The H.H series high power helical gear reducer is Horizontal and vertical installation,single to four stage,
available in 26 sizes.
Your benifits:
Modular design system Multi-purpose use of the housing and internal components.
Progressive ratio of sizes for optimum selection of sizes.
Improved noise level through grounded bevel gear teeth and noise-absorbing housings.
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
Specification:
|
H1 i=1.25-5.6 |
|
H2 i=6.3-28 |
|
H3 i=25-112 |
|
H4 i=100-450 |
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.
THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
Storage:
1:Pls do not store in outdoor.
2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
WARRANTY:
HFT guarantees the products sold for one year after you received. Warranty is limited to repair or
replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.
The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or
indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Competitive Advantage:
1. Through years of development, Zhejiang Hengfengtai Reducer Mfg Co., Ltd is based on a solid material
foundation and has possessed conditions towards the world.
It was found in 1991 which headquarter located in Wenzhou City. Total registered capital in RMB
58,000,000.We had 2 sub companies located in Binghai& Sanxi Industry Zone, covering area 50000
square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time.
There are more than 40 professional technical engineers. And we hired several domestic famous
expert and professor as research consultant. Meanwhile we had broad cooperation with Harbin Industrial
University, Guiyang Aluminum Magnesium college and Changsha Nonferrous metals college. We had 49
items patents including 7 items of invention patent, 30 items of utility models, 1 item of appearance design,
2 items of international invention patent and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network.
There are thousands of competitive companies which have built stable strategic partnership to us. Besides,
tens of branches and offices in china and abroad can response to customer’s demand and provide
solutions immediately. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers. Based on the all above, our products have been
exporting to Asia, Europe, Africa and more than 30 countries and areas , which are very popular in those
markets.
