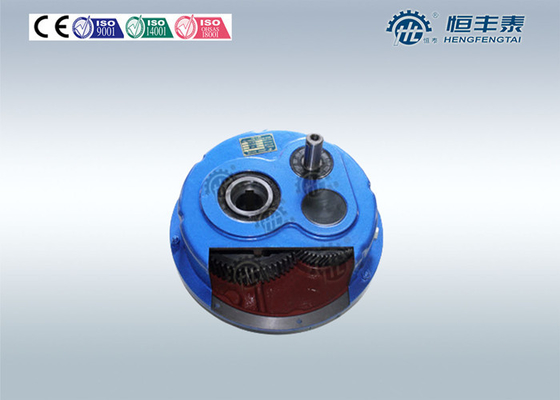

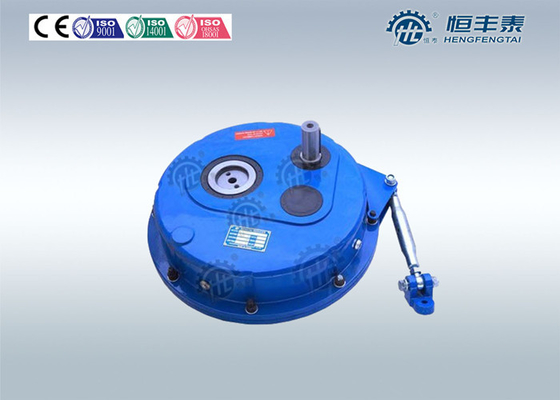

Electric motor used HXG45-45 Helical Gear Reducer Ratio 15/1 with torque arm

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001
Model Number HXG35 - HXG125
Minimum Order Quantity 5 pcs
Price US$ 180-2000
Packaging Details STRONG EXPORTING WOODEN CASE WITH PALLETS
Delivery Time 35 days for helical gear reducer
Payment Terms T/T or LC
Supply Ability 2000 pcs/month
Product Details
Material 20 CrMnTi Gears Hardened
Spares Mounted Torque Arm Hollow Shaft 35~135 Mm
Input Power 0.37~160 KW Input Speed 500~1800 Rpm
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Electric motor used HXG45-45 Helical Gear Reducer Ratio 15/1 with torque arm





Models:



Ratio

Input speed

(rpm)

Output speed

(rpm)

Model

Rated output torque

(Nm)

Rated input power

(Kw)

Overhung loads

(N)

15/1

1400

93

HXG35-35D

350

3.6

500

HXG40-40D

HXG40-45D

750

7.7

850

HXG45-45D

HXG45-50D

HXG45-55D

1200

12.3

1150

HXG50-50D

HXG50-55D

HXG50-60D

1900

19.5

1700

HXG60-60D

HXG60-70D

3200

33.0

2600

HXG70-70D

HXG70-85D

4400

45.0

3400

HXG80-80D

HXG80-100D

6100

63.0

4200

HXG100-100D

HXG100-125D

9500

98.0

5000

HXG125-125D

HXG125-135D

12500

128.0

5500





Spare parts List



TA Helical parallel shaft mounted gear motor Spare Parts List

1.Casing



11.Bearing



21.Hex.head screw



31.Spacer ring



41.Pin for bracket



2.Cover



12.Bearing



22.Spring washer



32.Spacer ring





42.Pin for support



3.Rubber cap



13.Bearing



23.Hexagonal nut



33.Support



43.Cotter pin



4.Output shaft



14.Oilseal



24.Hexagonal head screw



34.Key





5.Gearwheel



15.Oilseal



25.Breather plug



35.Support





6.Input shaft



16.Rubber cap



26.Level plug



36.Bracket





7.Spacer ring



17.Circlip



27.Drain plug



37.Torque arm





8.Spring washer



18.Key



28.Rubber Cap



38.Right tie-rod





9.Gasket



19.Key



29.Spacer ring



39.Left tie-rod





10.Gasket



20.Dowel Pin



30.Clutch element



40.Hexagonal nut











Competitive Advantage:



1.     HFT total registered capital in RMB 58,000,000.We had 2 sub companies located inBinghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



2.   There are more than 40 professional technical engineers and 49 items patents we have.



3.   Relying on high quality products and perfect service, our products have been successfully applied by



more than 5000 customers.





Business FAQS:



1. MOQ: 1 PCS.

2. Delivery time: 20-30 days according to QTY.

3. Payment: By T/T or L/C.

4. Warranty: 12 months.





Product images:



Electric motor used HXG45-45 Helical Gear Reducer Ratio 15/1 with torque arm 0
