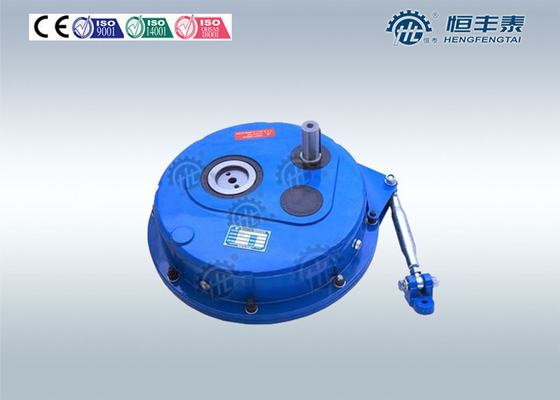

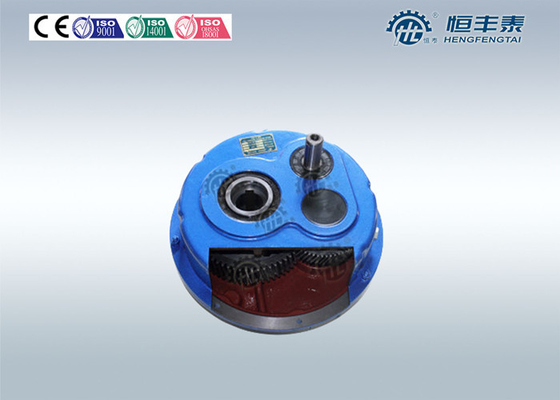

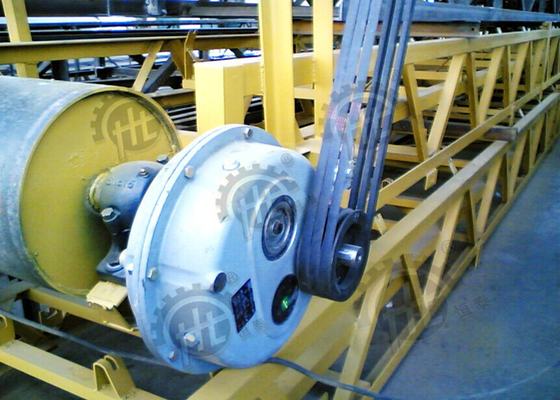

Mining Helical Gear Reducer Motor For Vetical Mixer and belt conveyor

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,TUV,SGS,ISO9001:2008
Model Number HXG35 - HXG125
Minimum Order Quantity 5 pcs
Price US$ 100-1000
Packaging Details STRONG EXPORTING WOODEN CASE WITH PALLETS
Delivery Time 30-35 days for helical gear reducer
Payment Terms T/T or LC
Supply Ability 2500 pcs/month
Product Details
Gearbox Mounted Torque Arm Application Belt Conveyor, Concrete Mixers
Used Power 1.1~60 KW Input Speed 500~1800 Rpm
Output Speed 15~350 Rpm Ratio 5~30
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Mining Helical Gear Reducer Motor For Vetical Mixer and belt conveyor





Mainly data:



 ·                               Output shaft diameter: 45 mm



·                                Ratio:5,10,12.5,15,20,25,31



·                                Rated Power: 0.92-226 KW



·                                Input Speed:500-1400 rpm



·                                Output Speed: 15.1-280RPM



·                                Output Torque: 180Nm-17000 N.m



 ·                               Model Number: HXG40,HXG45





Description:



TA similar HXG series OUTPUT SHAFT SIZE 45 helical gear reducer used for Mining

TA Helical parallel shaft mounted gear motor Spare Parts List



1.Casing



11.Bearing



21.Hex.head screw



31.Spacer ring



41.Pin for bracket



2.Cover



12.Bearing



22.Spring washer



32.Spacer ring





42.Pin for support



3.Rubber cap



13.Bearing



23.Hexagonal nut



33.Support



43.Cotter pin



4.Output shaft



14.Oilseal



24.Hexagonal head screw



34.Key





5.Gearwheel



15.Oilseal



25.Breather plug



35.Support





6.Input shaft



16.Rubber cap



26.Level plug



36.Bracket





7.Spacer ring



17.Circlip



27.Drain plug



37.Torque arm





8.Spring washer



18.Key



28.Rubber Cap



38.Right tie-rod





9.Gasket



19.Key



29.Spacer ring



39.Left tie-rod





10.Gasket



20.Dowel Pin



30.Clutch element



40.Hexagonal nut











WARRANTY:



Quality warranty of TA similar HXG series OUTPUT SHAFT SIZE 45 helical gear reducer used for Mining is



15 Monthsafter received the gearbox, during the period of time it is free of cost to repair while it is broken



undernormal usage according to theinstructure.





Specifications:



Model Ratio

Output speed

rpm

Rated output torque

Nm

 Rated input power

Overhung loads

N
HXG40-45 5 280 480 14.4 1000
HXG45-45 850 26.0 1500
HXG40-45D 10 140 600 9.2 850
HXG45-45D 1000 15.4 1150
HXG40-45D 12.5 105 700 8.1 850
HXG45-45D 115 1100 13.9 1150
HXG40-45D 15 93 750 7.7 850
HXG45-45D 1200 12.3 1150
HXG40-45D 20 71 780 6.1 850
HXG45-45D 1250 9.8 1150
HXG40-45D 25 56 800 4.9 850
HXG45-45D 1300 8.0 1150
HXG40-45D 31 42 800 3.7 850
HXG45-45D 46 1300 6.6 1150

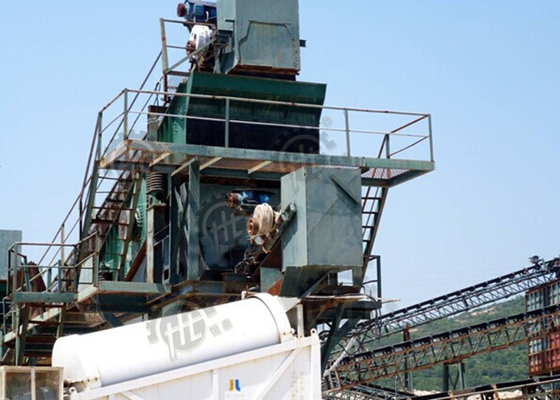

Applications:



TA similar HXG series OUTPUT SHAFT SIZE 45 helical gear reducer used for Mining



Stationary Crushing Plant

HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher



Mobile Crushing Plant

Mobile Jaw Crusher
Mobile Vibrating Screen
Mobile VSI Crusher
Mobile Cone Crusher
Mobile Impact Crusher
Crawler Mobile Crusher





Competitive Advantage:

  • CASE MATERIAL IS GG20 CASTING MATERIAL
  • CASE HAVE MORE STRENGTH AND ESTHETIC VIEW
  • PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS
  • LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS
  • GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED
  • CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH
  • GRINDING AND SCRAPING ARE APPLIED TO GEARS
  • SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS



Product image:

Mining Helical Gear Reducer Motor For Vetical Mixer and belt conveyor 0





Quality Control:

Mining Helical Gear Reducer Motor For Vetical Mixer and belt conveyor 1
