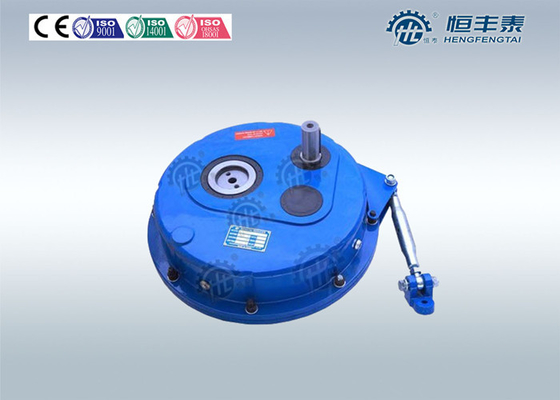

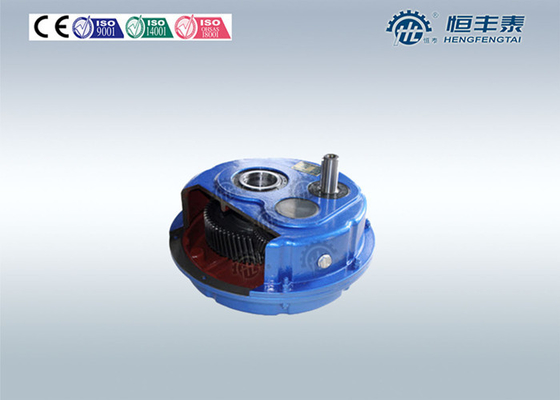

Mining Zero Backlash Shaft Mounted Gear Planetary Automatic Transmission Gear Box With Ratio 15/1
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,TUV,SGS,ISO2008, TUV, SGS |
| Model Number | HXG35 - HXG125 |
| Minimum Order Quantity | 5 pcs |
| Price | US$ 180-5000 |
| Packaging Details | STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 30-35 days for shaft mounted speed speed |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 pcs/month |
Product Details
| Speed Ratio | 15/1 | Stages | 1-2 Stages |
|---|---|---|---|
| Application | Mining Conveyor Belt | Material For Gear | 20CrMnTi |
| Color | Blue, Grey | Heat Treatment For Gear | Yes |
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
Product Description
Quick Details:
TA similar HXG series OUTPUT SHAFT SIZE 45 Shaft Mounted Speed Reducer used for Mining
· Output shaft diameter: 45 mm
· Ratio:5,10,12.5,15,20,25,31
· Rated Power: 0.92-226 KW
· Input Speed:500-1400 rpm
· Output Speed: 15.1-280RPM
· Output Torque: 180Nm-17000 N.m
· Model Number: HXG40,HXG45
Description:
TA similar HXG series OUTPUT SHAFT SIZE 45 Shaft Mounted Speed Reducer used for Mining
Products benefits:
1. High efficiency
2. Small volume
3. Simple structure and convenient to be installed and maintained
4. Strong capacity of being overloaded
5. Long service life
WARRANTY:
Quality warranty of TA similar HXG series OUTPUT SHAFT SIZE 45 Shaft Mounted Speed Reducer used
for Mining is 15 Monthsafter received the gearbox, during the period of time it is free of cost to repair while
it is broken undernormal usage according to theinstructure.
Specifications:
| Model | Ratio |
Output speed rpm |
Rated output torque Nm |
Rated input power |
Overhung loads N |
| HXG40-45 | 5 | 280 | 480 | 14.4 | 1000 |
| HXG45-45 | 850 | 26.0 | 1500 | ||
| HXG40-45D | 10 | 140 | 600 | 9.2 | 850 |
| HXG45-45D | 1000 | 15.4 | 1150 | ||
| HXG40-45D | 12.5 | 105 | 700 | 8.1 | 850 |
| HXG45-45D | 115 | 1100 | 13.9 | 1150 | |
| HXG40-45D | 15 | 93 | 750 | 7.7 | 850 |
| HXG45-45D | 1200 | 12.3 | 1150 | ||
| HXG40-45D | 20 | 71 | 780 | 6.1 | 850 |
| HXG45-45D | 1250 | 9.8 | 1150 | ||
| HXG40-45D | 25 | 56 | 800 | 4.9 | 850 |
| HXG45-45D | 1300 | 8.0 | 1150 | ||
| HXG40-45D | 31 | 42 | 800 | 3.7 | 850 |
| HXG45-45D | 46 | 1300 | 6.6 | 1150 |

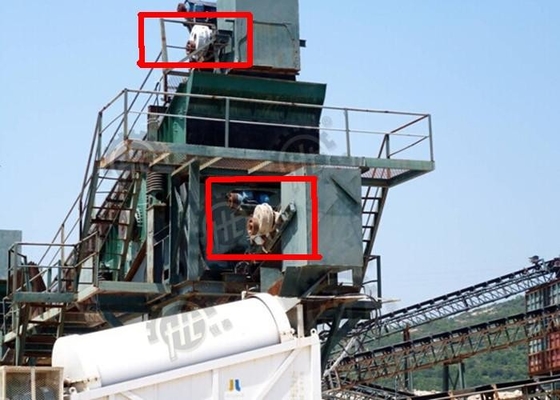

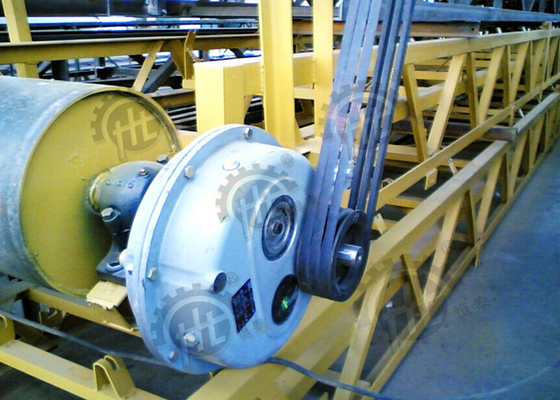

Applications:
TA similar HXG series OUTPUT SHAFT SIZE 45 Shaft Mounted Speed Reducer used for Mining
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. There are more than 40 professional technical engineers and 49 items patents we have.
3. Relying on high quality products and perfect service, our products have been successfully applied by
more than 5000 customers.
