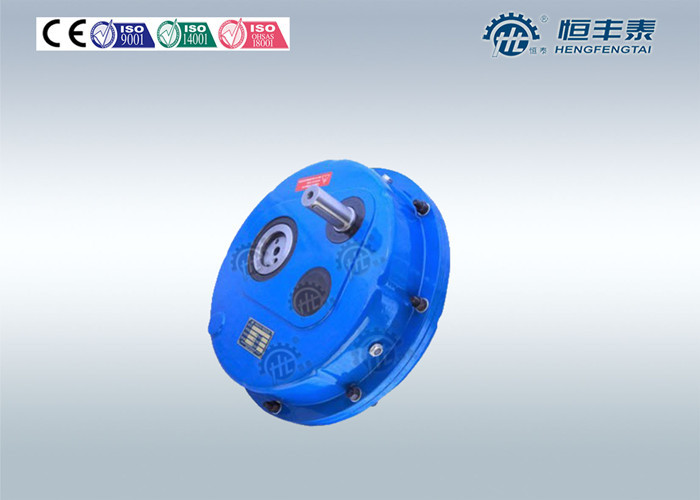

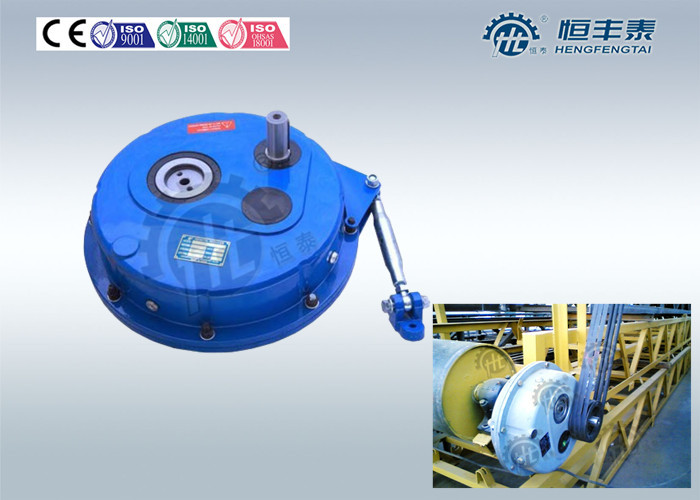

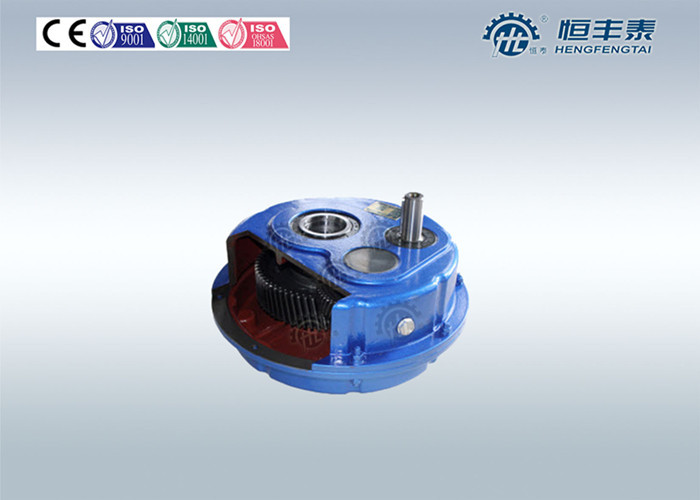

High quality shaft mounted Helical Gear Reducer Power Transmission Gearbox

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001
Model Number HXG35 - HXG125
Minimum Order Quantity 5 pcs
Price US$ 180-2000
Packaging Details STRONG EXPORTING WOODEN CASE WITH PALLETS
Delivery Time 30-35 days for helical gear reducer
Payment Terms T/T or LC
Supply Ability 2000 pcs/month
Product Details
Gearbox Ratio 5, 15， 20 Input Power 1.1~160 KW
Input Speed 500~1800 Rpm Output Speed 15~300 Rpm
Output Torque 180~17000 N.m Output Shaft 35~135 Mm
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description



High quality shaft mounted Helical Gear Reducer Power Transmission Gearbox





Quick Details:



·                                Ratio: 12.5/1



·                                Rated Power: 0.92-226 KW



·                                Input Speed:500-1400 rpm



·                                Output Speed: 15.1-280RPM



·                                Output Torque: 180Nm-17000 N.m



 ·                               Output shaft diameter: 35-135MM



 ·                               Model Number: HXG30-HXG125





Description:



TUV certificated same as TA series HXG helical gear reducer used for head drum drive for screen feeder





Specifications:



Ratio

Input speed

(rpm)

Output speed

(rpm)

Model

Rated output torque

(Nm)

Rated input power

(Kw)

Overhung loads

(N)

15/1

1400

93

HXG35-35D

350

3.6

500

HXG40-40D

HXG40-45D

750

7.7

850

HXG45-45D

HXG45-50D

HXG45-55D

1200

12.3

1150

HXG50-50D

HXG50-55D

HXG50-60D

1900

19.5

1700

HXG60-60D

HXG60-70D

3200

33.0

2600

HXG70-70D

HXG70-85D

4400

45.0

3400

HXG80-80D

HXG80-100D

6100

63.0

4200

HXG100-100D

HXG100-125D

9500

98.0

5000

HXG125-125D

HXG125-135D

12500

128.0

5500





WARRANTY:



Quality warranty of TUV certificated same as TA series HXG helical gear reducer used for head drum drive



for screen feeder is 15 Monthsafter received the gearbox, during the period of time it is free of cost to



repair while it is broken undernormal usage according to theinstructure.

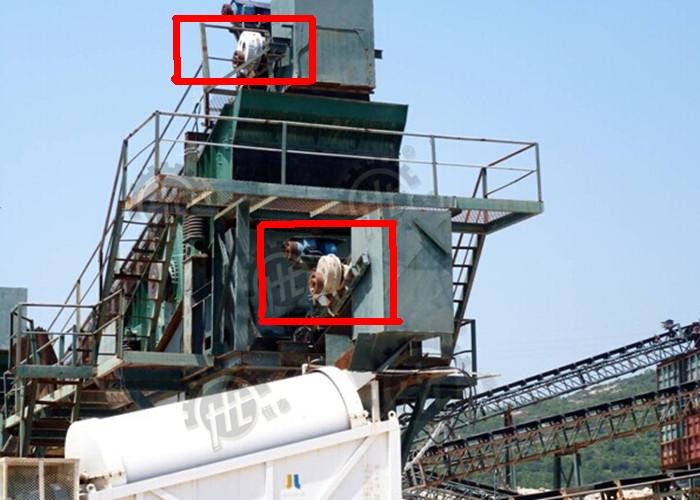

Applications:

Stationary Crushing Plant

HPC Cone Crusher
Deep Rotor VSI Crusher
B Series VSI Crusher
CS Cone Crusher
Impact Crusher
Secondary Impact Crusher
Primary Impact Crusher
Jaw Crusher
JC Series Jaw Crusher
HJ Series Jaw Crusher



Mobile Crushing Plant

Mobile Jaw Crusher
Mobile Vibrating Screen
Mobile VSI Crusher
Mobile Cone Crusher
Mobile Impact Crusher
Crawler Mobile Crusher





Competitive Advantage:



1.     HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



2.   There are more than 40 professional technical engineers and 49 items patents we have.



3.   Relying on high quality products and perfect service, our products have been successfully applied by



more than 5000 customers.
