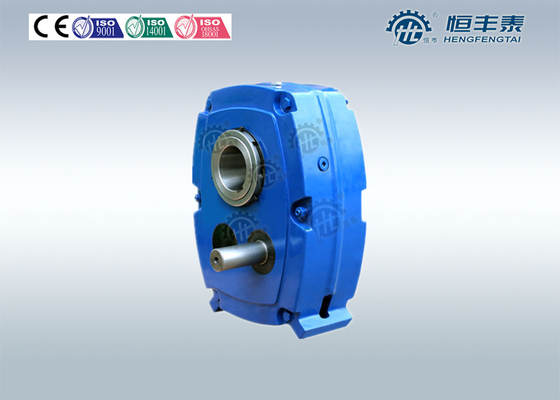

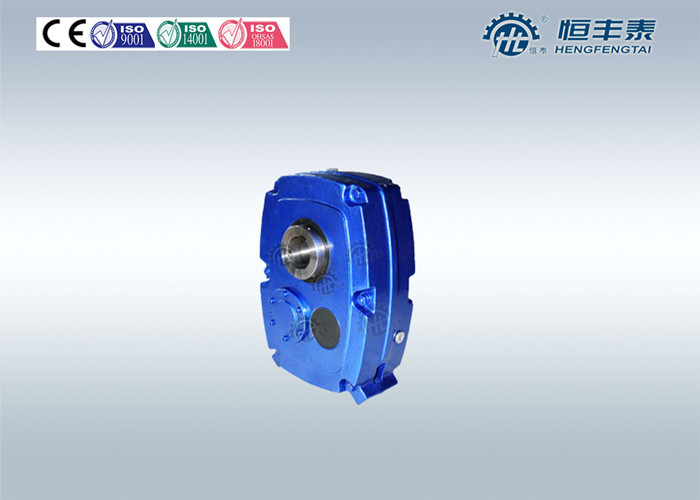

Helical Straight Bevel Gear Reducer , Gear Reduction Box Speed Reducer

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001
Model Number HXGF30 - HXGF100
Minimum Order Quantity 5 pcs
Price US$ 180-2000
Packaging Details STRONG EXPORTING WOODEN CASE WITH PALLETS
Delivery Time 30-35 days for helical gear reducer
Payment Terms T/T or LC
Supply Ability 2000 pcs/month
Product Details
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Helical Straight Bevel Gear Reducer , Gear Reduction Box Speed Reducer





Quick Details:





·                 Ratio: 20



·                 Output shaft diameter: 30 -120MM



·                 Output Speed:256 - 7499 RPM ( Na=100rpm )



·                 Rated Power: 0.29 -134.2 Kw



·                 Model Number: HXGF30 - HXGF100





Description:



SMSR similar series HXGF Ratio 20 shaft mounted helical gear reducer used for conveyors can be



mounted by shaft and flange.



Products benefits:



1. Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque



2. Heavy duty roller bearings for maximum strength and extended life



3. Flexible motor mounting capabilities



4. Backstops with centrifugal lift-off sprags to maximize reliability



OUTPUT
RPM

B5

C5

D5

E5

F5

G5

H5

J5

50

1.35

2.50

3.85

5.55

8.30

12.10

19.30

31.50

100

2.69

4.60

6.30

11.20

16.50

25.20

39.00

61.00

150

3.60

5.70

8.90

14..00

20.00

35.00

50.40

78.00

200

4.30

6.70

10.50

16.60

24.00

40.00

60.00

93.00

250

4.60

7.70

12.00

18.00

27.50

46.00

68.00

107.0

OUTPUT
RPM

B13
B20

C13
C20

D13
D20

E13
E20

F13
F20

G13
G20

H13
H20

J13
J20

10

0.29

0.50

0.80

1.30

1.90

3.30

4.70

7.45

20

0.60

1.10

1.70

2.50

4.10

7.00

10.00

15.80

30

0.80

1.70

2.60

4.20

6.20

10.50

15.00

24.00

40

1.15

2.20

3.50

5.50

8.10

14.00

20.00

31.00

50

1.40

2.50

4.00

6.30

9.40

16.00

23.00

36.00

60

1.70

3.00

4.70

7.40

11.10

19.00

27.00

42.5

70

1.90

3.30

5.20

8.25

12.10

21.00

30.00

46.00

80

2.20

3.90

6.15

9.65

14.20

24.50

35.00

54.00

90

2.40

4.40

6.80

10.70

15.70

27.00

39.00

60.00

100

2.70

4.60

7.20

11.30

16.60

28.50

41.00

63.50

TORQUE
AT 10RPM
 in NM

275

510

810

1270

1865

3230

4650

7100

TORQUE
AT 70 RPM
in NM

260

420

740

1120

1790

2950

4550

6600



WARRANTY:



Quality warranty of SMSR similar series HXGF Ratio 20 shaft mounted helical gear reducer used for



conveyors is 15 Months after received the gearbox, during the period of time it is free of cost to repair



while it is broken undernormal usage according to theinstructure.





Specifications:



Model(double) HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Ratio 20
Nm(100rpm) 256 277 401 468 632 783 983 1194 1444 1881 2407 2970 3457 4380 5940 7449







Applications:

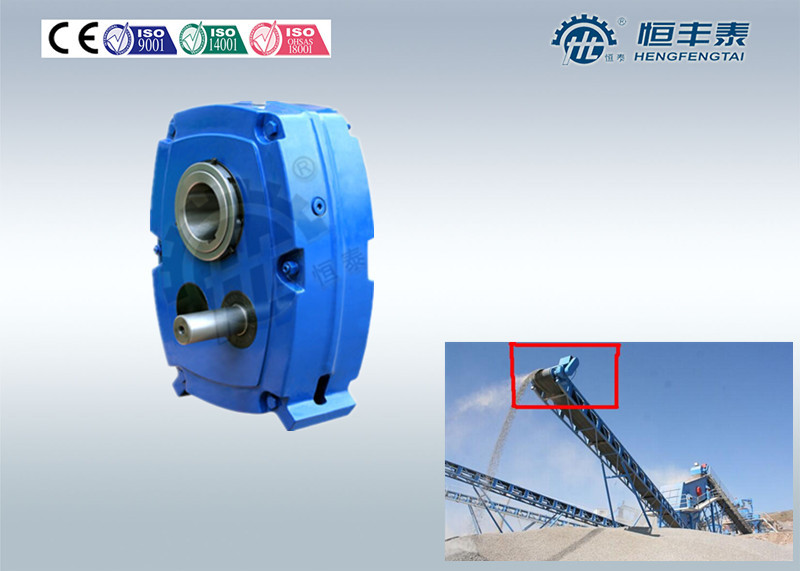

Ideal for screw conveyors, conveyor belts, processing plant

  • Luggage conveying
  • Fibre, paper processing and forestry industry
  • Mineral working and mining
  • Mixing
  • Grain processing & agriculture

Helical Straight Bevel Gear Reducer , Gear Reduction Box Speed Reducer 0Helical Straight Bevel Gear Reducer , Gear Reduction Box Speed Reducer 1
