Electric Motor Helical Gear Reducer Hollow Output Gearbox Ratio 5 / 13 / 20
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001 |
| Model Number | SMSR-C,D,E,F,G,H,J,S |
| Minimum Order Quantity | 1 pcs |
| Price | US$ 100-1000 |
| Packaging Details | STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 20-30 days for helical gear reducer |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 pcs/month |
Product Details
| Hollow Shaft Diameter | 30,40,50,55,65,75,85,100,120 Mm | Gearbox Ratio | 5; 13; 20 |
|---|---|---|---|
| Input Power | 0.37~30 KW | Special Application | Belt Conveyor |
| Spares | Mounted Torque Arm | Anti-back | Backstop |
| High Light | inline helical gearbox,helical bevel gearbox |
||
Product Description

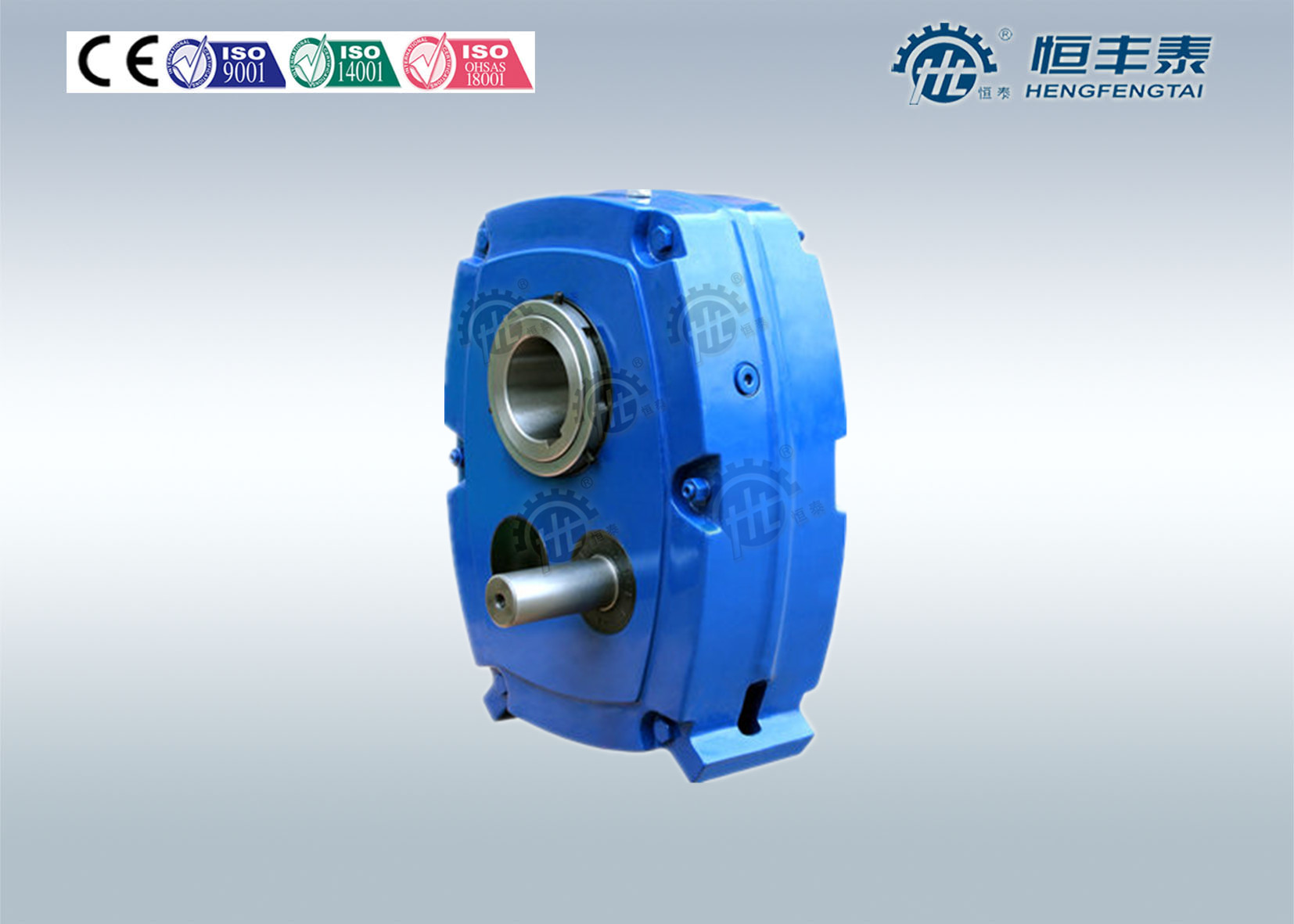

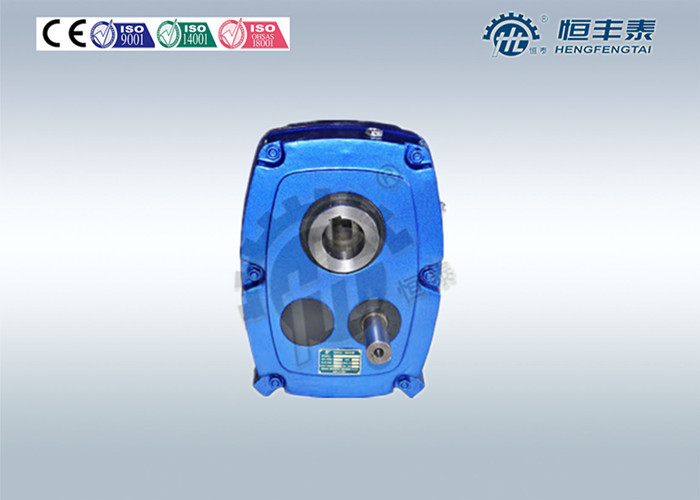

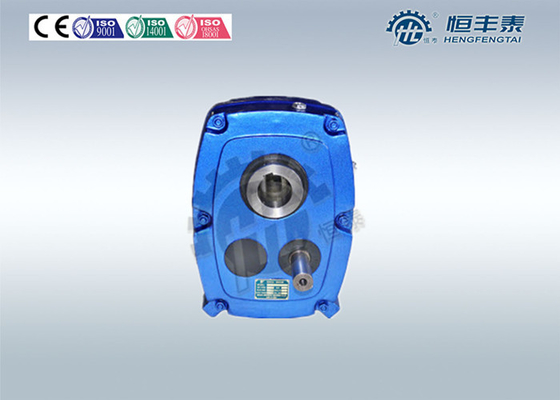

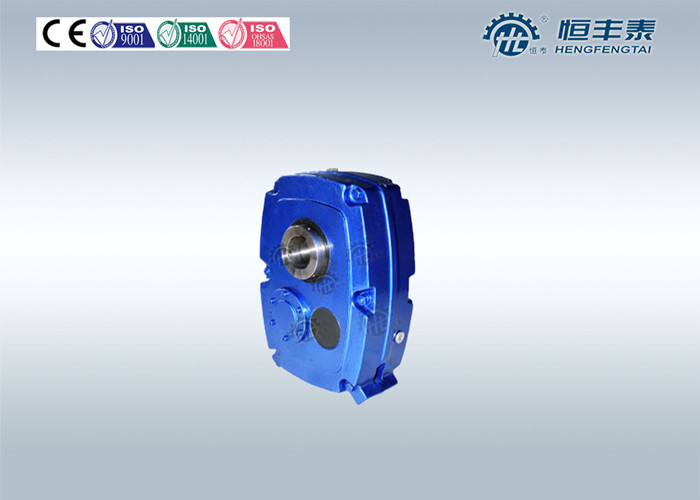

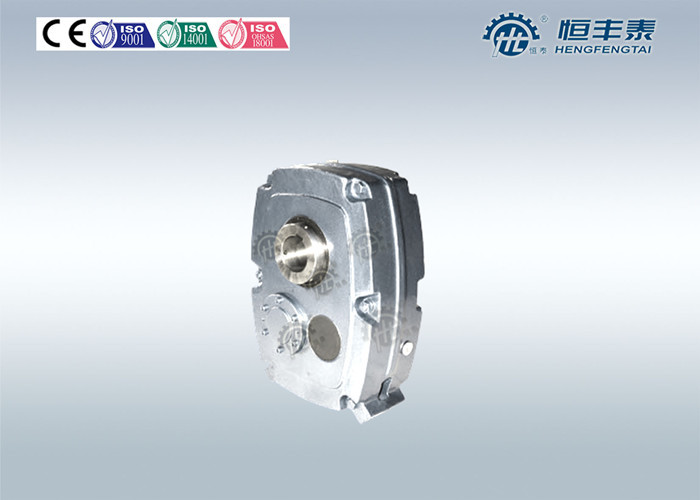

Electric Motor Helical Gear Reducer Hollow Output Gearbox Ratio 5 / 13 / 20
Quick Details:
· Ratio: 5,13,20
· Input shaft diameter : 28 mm,same as SMSR size F
· Output shaft diameter : 65 mm,same as SMSR size F
· Output Speed: 100-400 rpm
· Output Torque: 983-1881 Nm
· Rated Power: 0.29-134.2kw
· Model Number: HXGF55,HXGF65
Description:
SMSR size F at HT company CE certificated helical gear reducer used for Quarrying can be in ratio
5/1,13/1,20/1.
|
SIZES |
A |
B |
C |
D |
E |
F |
Input Shaft Keyway |
H |
J |
K |
P |
T |
U |
V |
W |
X |
Y |
|
|
Hub Dia |
||||||||||||||||||
|
STD |
ALT |
|||||||||||||||||
|
B |
134 |
30 |
40 |
63 |
59 |
80 |
19j6 |
6x3.5x50 |
104 |
131 |
55 |
10 |
186 |
226 |
81 |
75 |
25 |
79 |
|
C |
142 |
40 |
50 |
72 |
65 |
90 |
22j6 |
6x3.5x5.6 |
108 |
156 |
59 |
10 |
218 |
270 |
96 |
90 |
31 |
95 |
|
D |
152 |
50 |
55 |
77 |
68 |
100 |
25j6 |
8x4x63 |
118 |
188 |
76 |
12 |
258 |
328 |
117 |
110 |
37 |
116 |
|
E |
170 |
55 |
65 |
85 |
76 |
115 |
28j6 |
8x4x70 |
130 |
222 |
90 |
12 |
278 |
377 |
129 |
125 |
43 |
133 |
|
F |
189 |
65 |
75 |
90 |
87 |
130 |
32k6 |
10x5x70 |
149 |
242 |
98 |
16 |
317 |
414 |
143 |
141 |
50 |
150 |
|
G |
212 |
75 |
85 |
105 |
110 |
145 |
42k6 |
12x5x90 |
172 |
277 |
110 |
16 |
365 |
468 |
162 |
156 |
56 |
166 |
|
H |
242 |
85 |
100 |
116 |
115 |
170 |
48K6 |
14x5.5x100 |
190 |
330 |
88 |
16 |
434 |
550 |
195 |
189 |
62 |
200 |
Products benefits:
1. Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque
2. Heavy duty roller bearings for maximum strength and extended life
3. Flexible motor mounting capabilities
4. Backstops with centrifugal lift-off sprags to maximize reliability
WARRANTY:
Quality warranty of SMSR size F at HT company CE certificated helical gear reducer used for Quarrying
can be in ratio 5/1,13/1,20/1. is 15 Months after received the gearbox, during the period of time it is free
of cost to repair while it is broken undernormal usage according to theinstructure.
Specifications:
| Single reduction Ratio 5:1 | ||
| Model | Output torque Nm | Output speed rpm |
| HXGF55-65 | 983 | 100-400 |
| HXGF65-65 | 1444 | |
| Single reduction Ratio 13:1 and 20:1 | ||
| Model | Output torque Nm | Output speed rpm |
| HXGF55-65 | 1194 | 10-115 |
| HXGF65-65 | 1881 | |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai&
Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.
2. There are more than 40 professional technical engineers and 49 items patents we have.
3. Relying on high quality products and perfect service, our products have been successfully applied
by more than 5000 customers.
