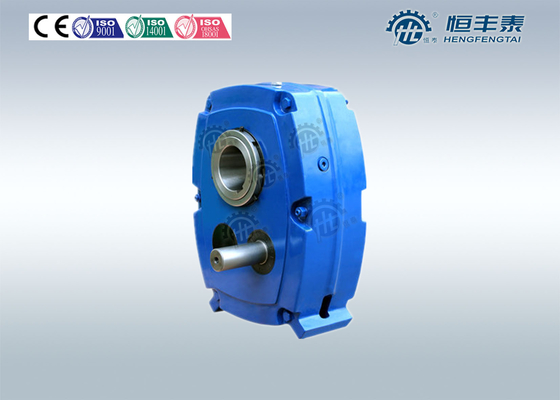

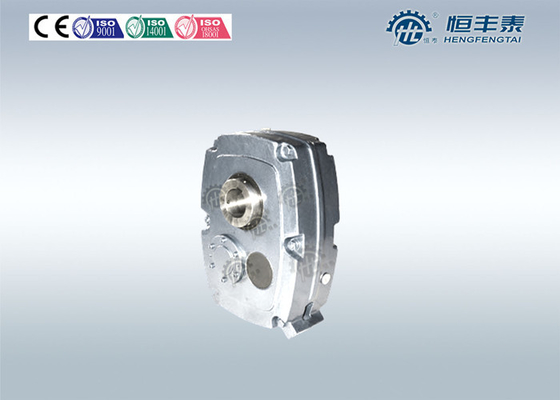

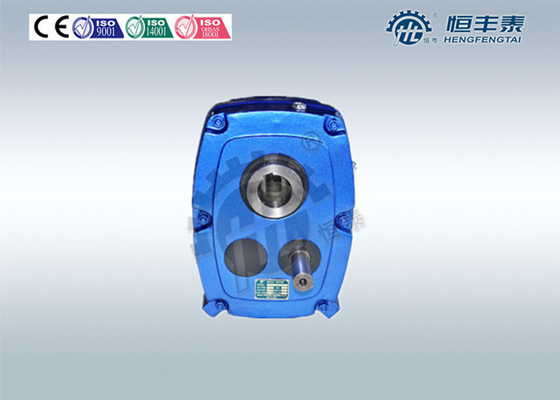

Two Stage Shaft mounted speed reducer screw conveyor zero backlash
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,TUV,SGS,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF55 - HXGF65 |
| Minimum Order Quantity | 5 pcs |
| Price | US$ 300-380 |
| Packaging Details | STRONG EXPORTING WOODEN CASE WITH PALLETS |
| Delivery Time | 30-35 days for shaft mounted speed reducer |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 pcs/month |
Product Details
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
|---|---|---|---|
Product Description
Two Stage Shaft mounted speed reducer screw conveyor zero backlash
Quick Details:
· Ratio: 5,13,20
· Input shaft diameter : 28 mm,same as SMSR size F
· Output shaft diameter : 65 mm,same as SMSR size F
· Output Speed: 100-400 rpm
· Output Torque: 983-1881 Nm
· Rated Power: 0.29-134.2kw
· Model Number: HXGF55,HXGF65
Description:
SMSR size F at HT company CE certificated shaft mounted speed reducer used for main drive to screw
conveyor can be in ratio 5/1,13/1,20/1.
Products benefits:
1. Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque
2. Heavy duty roller bearings for maximum strength and extended life
3. Flexible motor mounting capabilities
4. Backstops with centrifugal lift-off sprags to maximize reliability
WARRANTY:
Quality warranty of SMSR size F at HT company CE certificated shaft mounted speed reducer used for
main drive to screw conveyor can be in ratio 5/1,13/1,20/1. is 15 Months after received the gearbox,
during the period of time it is freeof cost to repair while it is broken undernormal usage according to
theinstructure.
Specifications:
| Single reduction Ratio 5:1 | ||
| Model | Output torque Nm | Output speed rpm |
| HXGF55-65 | 983 | 100-400 |
| HXGF65-65 | 1444 | |
| Single reduction Ratio 13:1 and 20:1 | ||
| Model | Output torque Nm | Output speed rpm |
| HXGF55-65 | 1194 | 10-115 |
| HXGF65-65 | 1881 | |

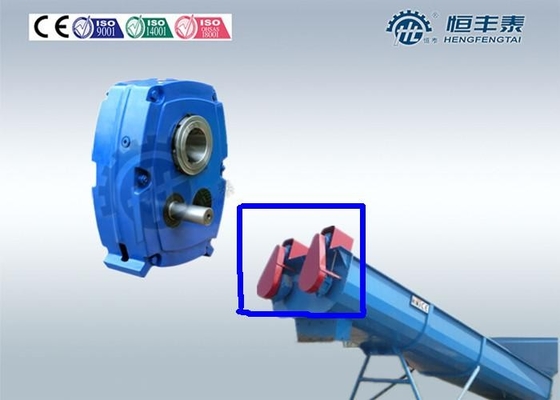

Applications:
SMSR size F at HT company CE certificated shaft mounted speed reducer used for main drive to screw
conveyor
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai&
Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.
2. There are more than 40 professional technical engineers and 49 items patents we have.
3. Relying on high quality products and perfect service, our products have been successfully applied
by more than 5000 customers.
